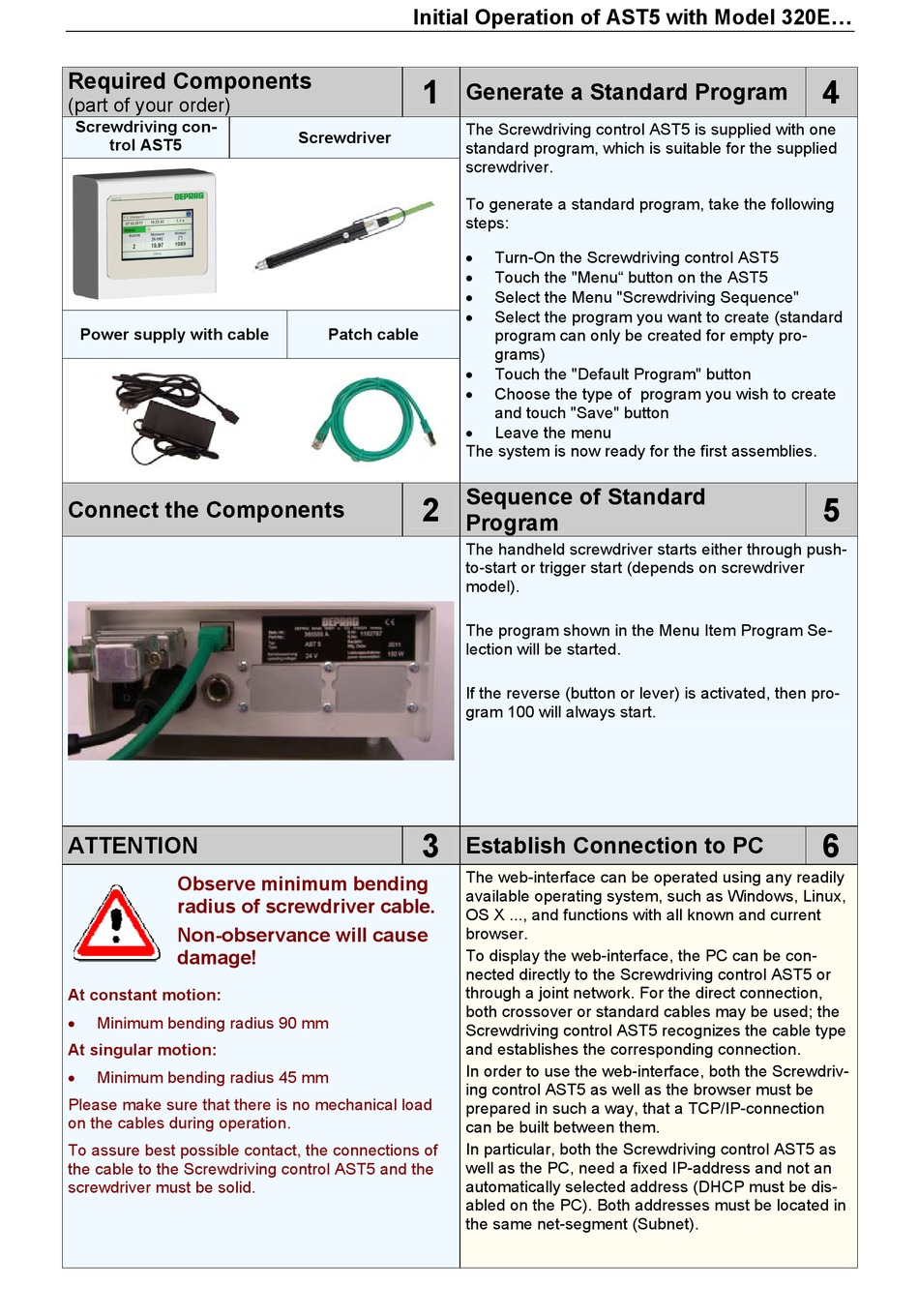

Required Components - Deprag AST5 Erste Schritte

Required Components

(part of your order)
Screwdriving con-
trol AST5
Power supply with cable
Connect the Components
ATTENTION
Observe minimum bending
radius of screwdriver cable.
Non-observance will cause
damage!
At constant motion:

Minimum bending radius 90 mm
At singular motion:

Minimum bending radius 45 mm
Please make sure that there is no mechanical load
on the cables during operation.
To assure best possible contact, the connections of
the cable to the Screwdriving control AST5 and the
screwdriver must be solid.
Initial Operation of AST5 with Model 320E...
1
Generate a Standard Program
The Screwdriving control AST5 is supplied with one
Screwdriver
standard program, which is suitable for the supplied
screwdriver.
To generate a standard program, take the following
steps:




Patch cable



The system is now ready for the first assemblies.
Sequence of Standard
2
Program
The handheld screwdriver starts either through push-
to-start or trigger start (depends on screwdriver
model).
The program shown in the Menu Item Program Se-
lection will be started.
If the reverse (button or lever) is activated, then pro-
gram 100 will always start.
3
Establish Connection to PC
The web-interface can be operated using any readily
available operating system, such as Windows, Linux,
OS X ..., and functions with all known and current
browser.
To display the web-interface, the PC can be con-
nected directly to the Screwdriving control AST5 or
through a joint network. For the direct connection,
both crossover or standard cables may be used; the
Screwdriving control AST5 recognizes the cable type
and establishes the corresponding connection.
In order to use the web-interface, both the Screwdriv-
ing control AST5 as well as the browser must be
prepared in such a way, that a TCP/IP-connection
can be built between them.
In particular, both the Screwdriving control AST5 as
well as the PC, need a fixed IP-address and not an
automatically selected address (DHCP must be dis-
abled on the PC). Both addresses must be located in
the same net-segment (Subnet).
Turn-On the Screwdriving control AST5
Touch the "Menu" button on the AST5
Select the Menu "Screwdriving Sequence"
Select the program you want to create (standard
program can only be created for empty pro-
grams)
Touch the "Default Program" button
Choose the type of program you wish to create
and touch "Save" button
Leave the menu
4
5
6
