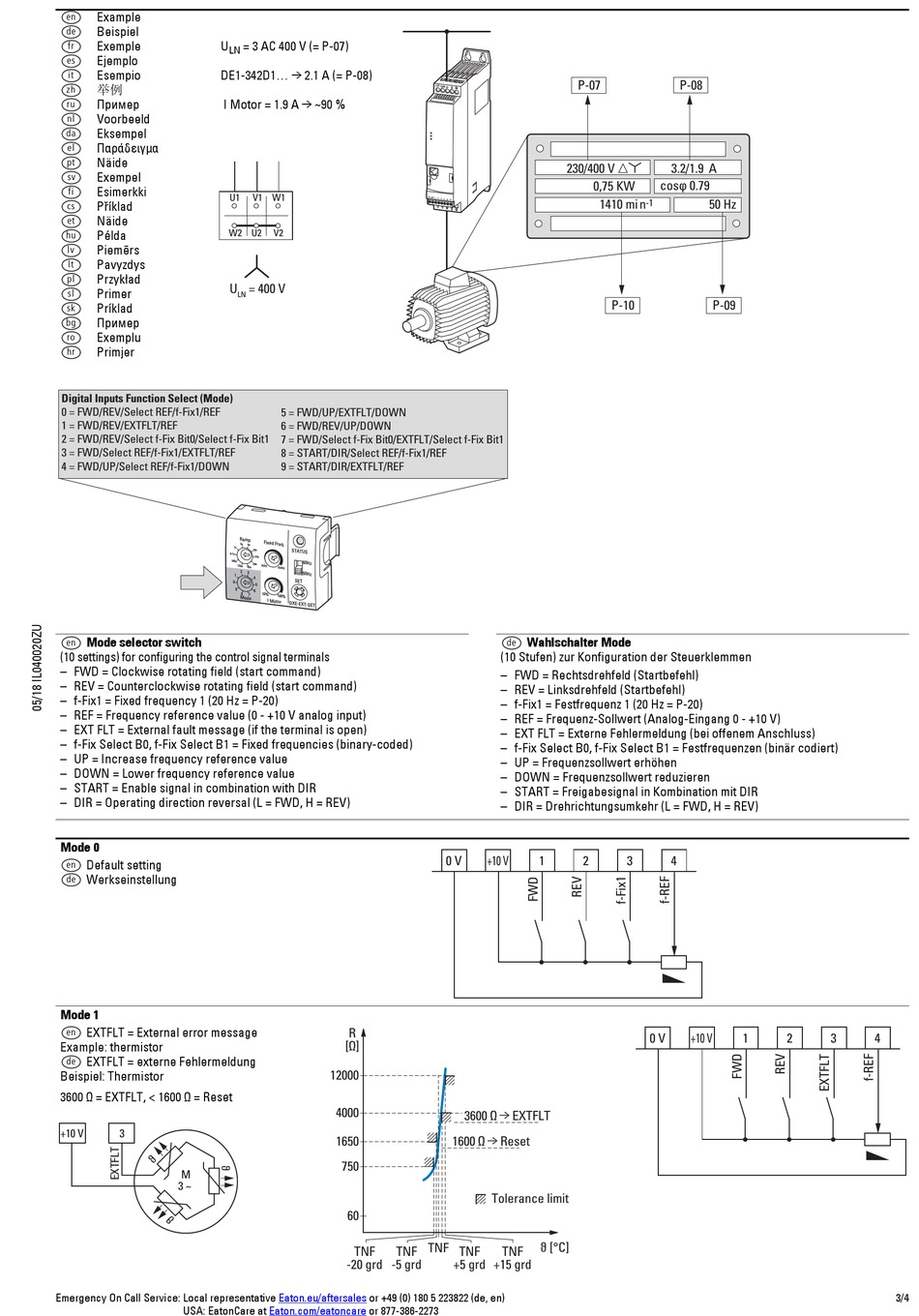

Digital Inputs Function Select (Mode)
0 = FWD/REV/Select REF/f-Fix1/REF
1 = FWD/REV/EXTFLT/REF
2 = FWD/REV/Select f-Fix Bit0/Select f-Fix Bit1
3 = FWD/Select REF/f-Fix1/EXTFLT/REF
4 = FWD/UP/Select REF/f-Fix1/DOWN
0.1s
Mode selector switch
en
(10 settings) for configuring the control signal terminals
– FWD = Clockwise rotating field (start command)
– REV = Counterclockwise rotating field (start command)
– f-Fix1 = Fixed frequency 1 (20 Hz = P-20)
– REF = Frequency reference value (0 - +10 V analog input)
– EXT FLT = External fault message (if the terminal is open)
– f-Fix Select B0, f-Fix Select B1 = Fixed frequencies (binary-coded)
– UP = Increase frequency reference value
– DOWN = Lower frequency reference value
– START = Enable signal in combination with DIR
– DIR = Operating direction reversal (L = FWD, H = REV)
Mode 0
Default setting
en
Werkseinstellung
de
Mode 1
EXTFLT = External error message
en
Example: thermistor
EXTFLT = externe Fehlermeldung
de
Beispiel: Thermistor
3600 Ω = EXTFLT, < 1600 Ω = Reset
+10 V
3
M
3 ~
Emergency On Call Service: Local representative
USA: EatonCare at
= 3 AC 400 V (= P-07)
V1 W1
V2
= 400 V
LN
5 = FWD/UP/EXTFLT/DOWN
6 = FWD/REV/UP/DOWN
7 = FWD/Select f-Fix Bit0/EXTFLT/Select f-Fix Bit1
8 = START/DIR/Select REF/f-Fix1/REF
9 = START/DIR/EXTFLT/REF
Ra mp
Fix ed Fre q.
3s
5s
1s
ST AT US
10s
15s
180s
60 Hz
30s
min
120s
60s
ma x
2
3
50 Hz
1
4
SE T
0
5
9
6
8
10%
7
100 %
Mo de
I Mo tor
DX E-E XT -S
ET
R
[Ω]
12000
4000
1650
750
60
TNF
TNF
-20 grd
-5 grd
Eaton.eu/aftersales
or +49 (0) 180 5 223822 (de, en)
Eaton.com/eatoncare
or 877-386-2273
P-07
L1/L L2/N
L3
230/400 V △
0,75 KW
0 V +10 V 1
1410 mi n
2
3
4
13 14
U
V
W
Wahlschalter Mode
de
(10 Stufen) zur Konfiguration der Steuerklemmen
– FWD = Rechtsdrehfeld (Startbefehl)
– REV = Linksdrehfeld (Startbefehl)
– f-Fix1 = Festfrequenz 1 (20 Hz = P-20)
– REF = Frequenz-Sollwert (Analog-Eingang 0 - +10 V)
– EXT FLT = Externe Fehlermeldung (bei offenem Anschluss)
– f-Fix Select B0, f-Fix Select B1 = Festfrequenzen (binär codiert)
– UP = Frequenzsollwert erhöhen
– DOWN = Frequenzsollwert reduzieren
– START = Freigabesignal in Kombination mit DIR
– DIR = Drehrichtungsumkehr (L = FWD, H = REV)
0 V
+10 V
1
2
3600 Ω → EXTFLT
1600 Ω → Reset
Tolerance limit
ϑ [°C]
TNF
TNF
TNF
+5 grd
+15 grd
P-08
3.2/1.9 A
cosϕ 0.79
50 Hz
-1
P-10
P-09
3
4
0 V
+10 V
1
2
3
4
3/4
