Flexlock Invisible Handbuch Seite 9

Max åtdragningsmoment
MDF: 1,45Nm
Spånskiva: 0,8Nm

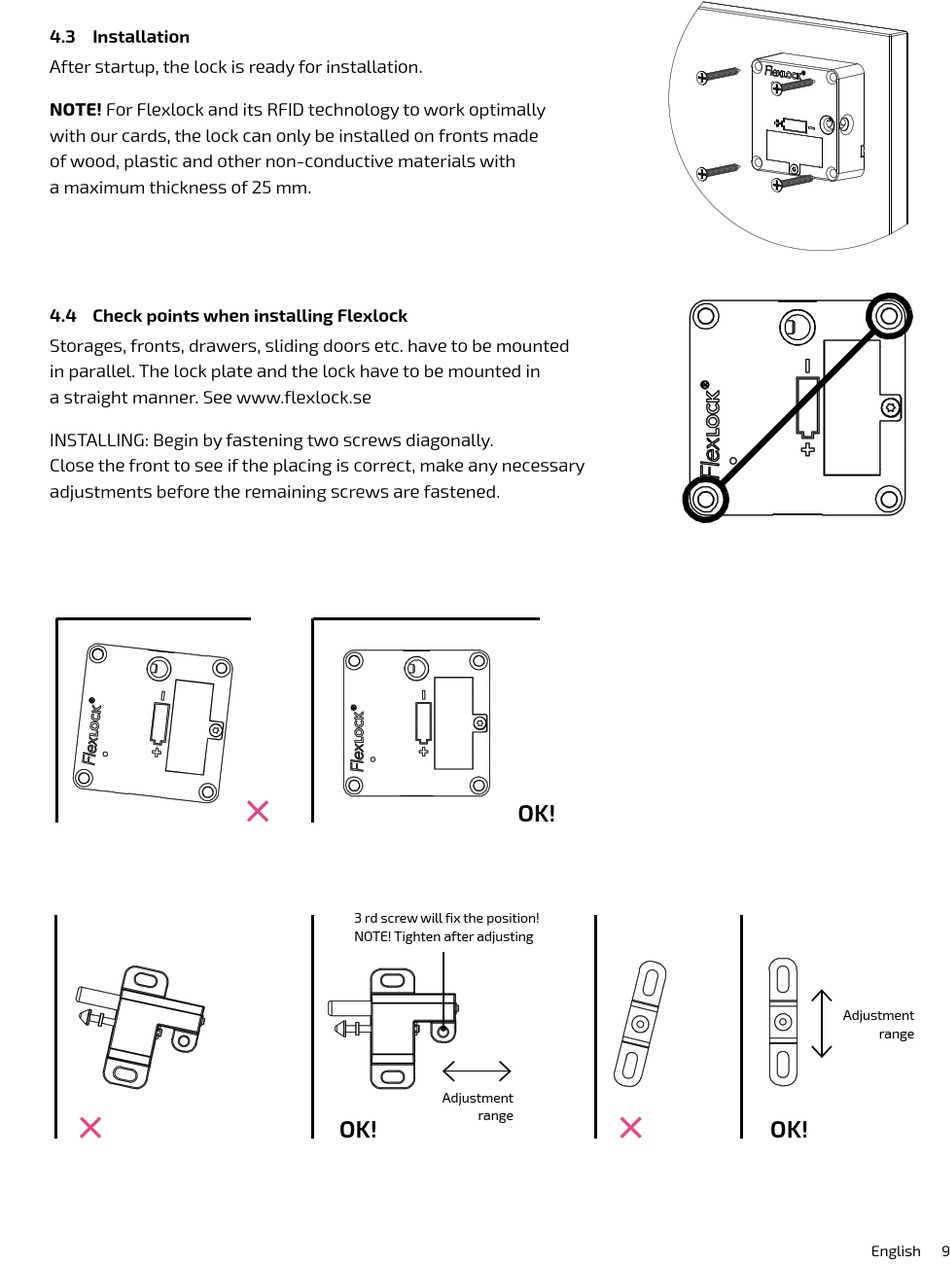

4.3 Installation
After startup, the lock is ready for installation.
NOTE! For Flexlock and its RFID technology to work optimally
with our cards, the lock can only be installed on fronts made
of wood, plastic and other non-conductive materials with
a maximum thickness of 25 mm.
Kontrollpunkter före montage av Flexlock Kontrollpunkter före montage av Flexlock
4.4 Check points when installing Flexlock
Storages, fronts, drawers, sliding doors etc. have to be mounted
in parallel. The lock plate and the lock have to be mounted in
a straight manner. See www.flexlock.se
INSTALLING: Begin by fastening two screws diagonally.
Close the front to see if the placing is correct, make any necessary
adjustments before the remaining screws are fastened.
Kontrollpunkter före montage av Flexlock
Kontrollpunkter före montage av Flexlock
4x12mm (x2)
Min 12mm
4,5x35mm (x4)
Kontrollpunkter före montage av Flexlock
Min 14mm
OK!
3 rd screw will fix the position!
NOTE! Tighten after adjusting
Adjustment
range
OK!


Kontrollpunkter före montage av Flexlock
OK!
Monte
Skruva
först. P
justera
kvarva
Adjustment
range
English 9
