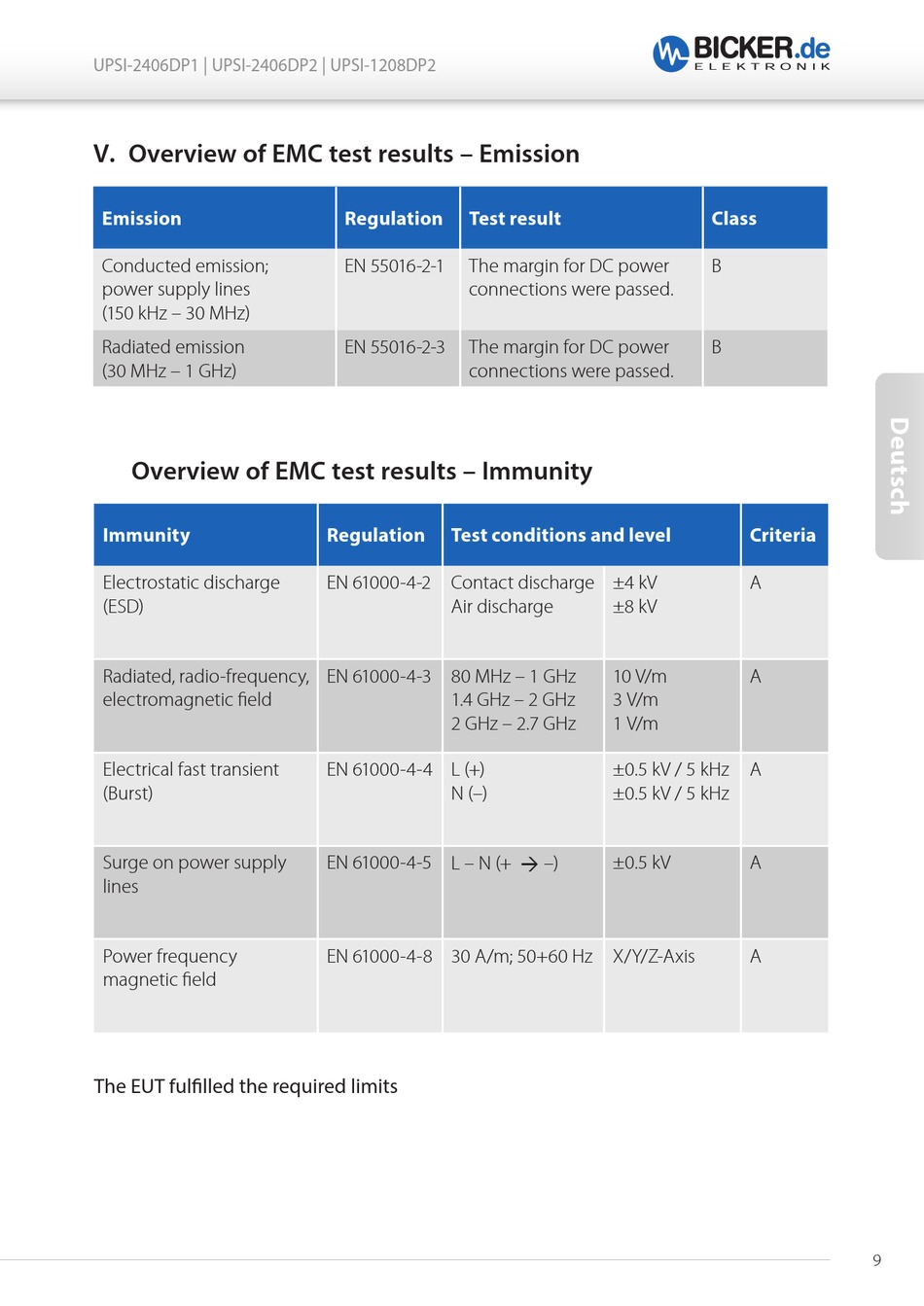

V. Overview of EMC test results – Emission
Emission
Conducted emission;
power supply lines
(150 kHz – 30 MHz)
Radiated emission
(30 MHz – 1 GHz)
Overview of EMC test results – Immunity
Immunity
Electrostatic discharge
(ESD)
Radiated, radio-frequency,
electromagnetic field
Electrical fast transient
(Burst)
Surge on power supply
lines
Power frequency
magnetic field
The EUT fulfilled the required limits
Regulation Test result
EN 55016-2-1 The margin for DC power
connections were passed.
EN 55016-2-3 The margin for DC power
connections were passed.
Regulation Test conditions and level
EN 61000-4-2 Contact discharge
Air discharge
EN 61000-4-3 80 MHz – 1 GHz
1.4 GHz – 2 GHz
2 GHz – 2.7 GHz
EN 61000-4-4 L (+)
N (–)
EN 61000-4-5 L – N (+  –)
EN 61000-4-8 30 A/m; 50+60 Hz X/Y/Z-Axis
Class
B
B
Criteria
±4 kV A
±8 kV
10 V/m A
3 V/m
1 V/m
±0.5 kV / 5 kHz A
±0.5 kV / 5 kHz
±0.5 kV A
A
