Omnimount CI80TPL Bedienungsanleitung Seite 24

3

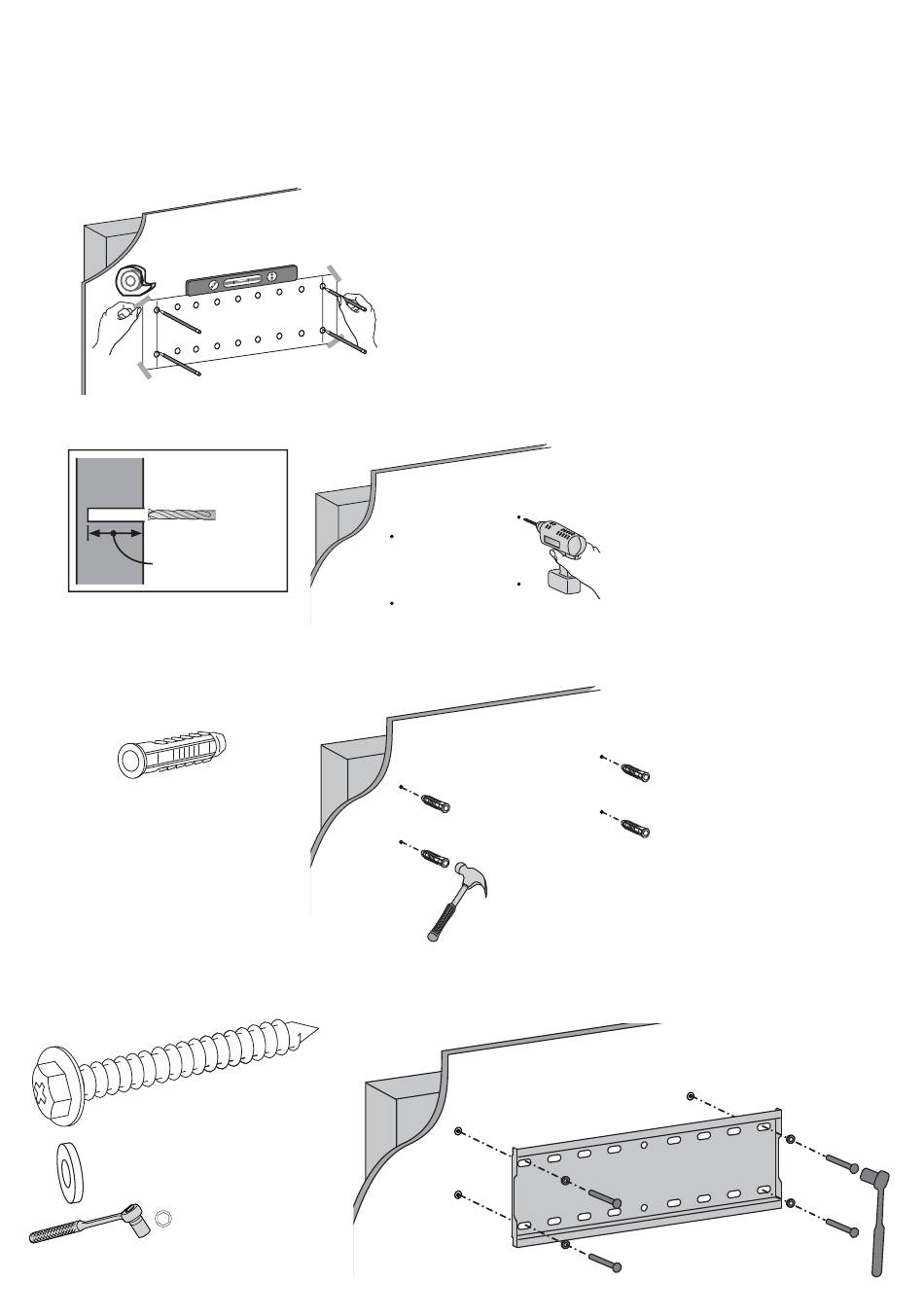

CONCRETE WALL INSTALLATION
BETON
BETON
BETON
ΣΚΥΡΟΔΕΜΑ
BETON
‫בטון‬
a
b
2.36"
(60mm)
c
4x
M8 Wall Anchor
d
4x
M7 x 55mm
4x
M8 Washer
10mm
888-61-264-W-00 rev. A • 08/18
Ø 3/8"
(9.5mm)
9 of 15
