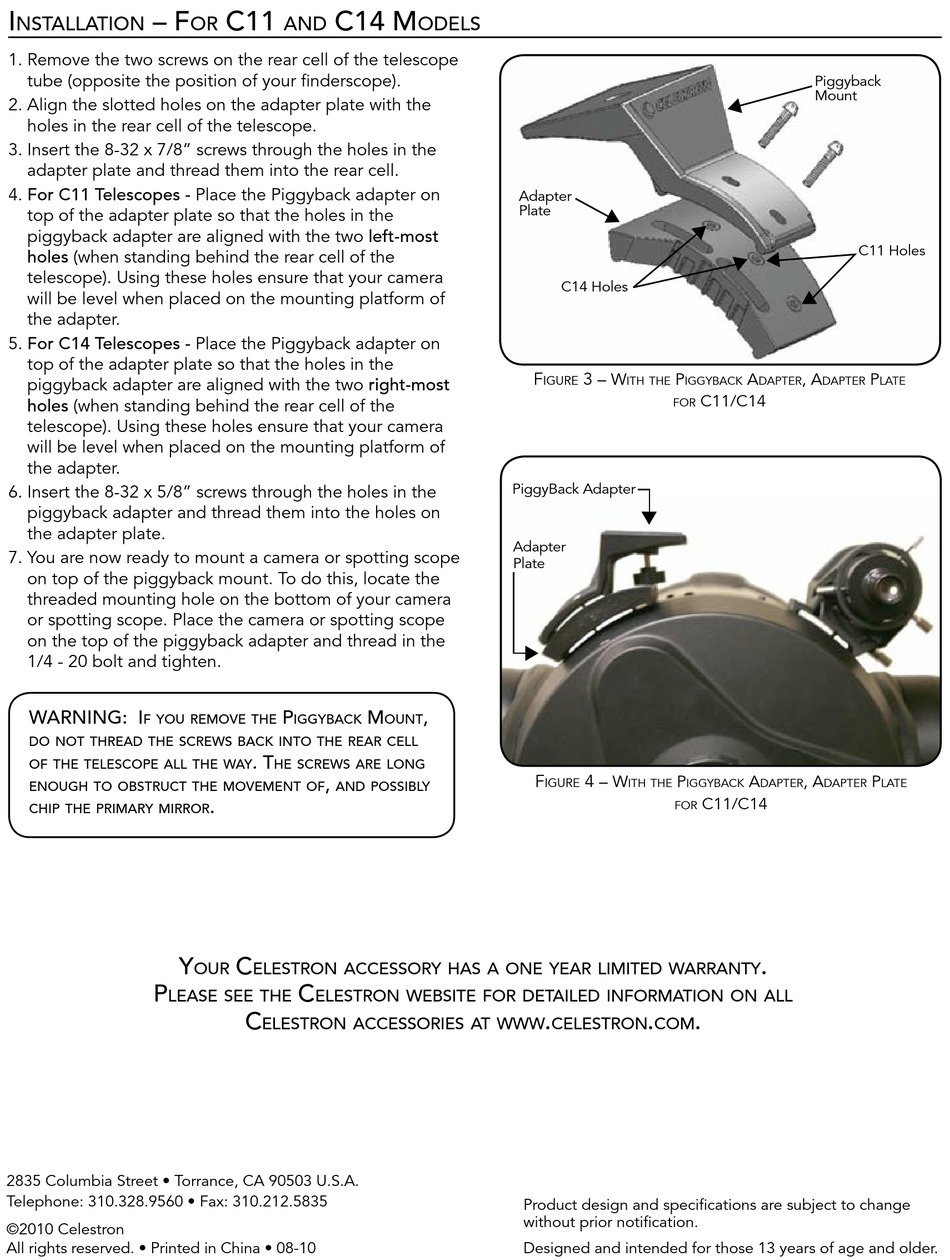

I
– F
nstallatIon
1. Remove the two screws on the rear cell of the telescope
tube (opposite the position of your finderscope).
2. Align the slotted holes on the adapter plate with the
holes in the rear cell of the telescope.
3. Insert the 8-32 x 7/8" screws through the holes in the
adapter plate and thread them into the rear cell.
4. For c11 telescopes - Place the Piggyback adapter on
top of the adapter plate so that the holes in the
piggyback adapter are aligned with the two left-most
holes (when standing behind the rear cell of the
telescope). Using these holes ensure that your camera
will be level when placed on the mounting platform of
the adapter.
5. For c14 telescopes - Place the Piggyback adapter on
top of the adapter plate so that the holes in the
piggyback adapter are aligned with the two right-most
holes (when standing behind the rear cell of the
telescope). Using these holes ensure that your camera
will be level when placed on the mounting platform of
the adapter.
6. Insert the 8-32 x 5/8" screws through the holes in the
piggyback adapter and thread them into the holes on
the adapter plate.
7. You are now ready to mount a camera or spotting scope
on top of the piggyback mount. To do this, locate the
threaded mounting hole on the bottom of your camera
or spotting scope. Place the camera or spotting scope
on the top of the piggyback adapter and thread in the
1/4 - 20 bolt and tighten.
WarnInG: I
F you reMove the
do not thread the sCreWs baCk Into the rear Cell
oF the telesCoPe all the Way
enouGh to obstruCt the MoveMent oF
ChIP the PrIMary MIrror
y
P
lease see the
2835 Columbia Street • Torrance, CA 90503 U.S.A.
Telephone: 310.328.9560 • Fax: 310.212.5835
©2010 Celestron
All rights reserved. • Printed in China • 08-10
C11
C14 M
or
and
P
M
IGGybaCk
. t
he sCreWs are lonG
,
and PossIbly
.
C
our
elestron aCCessory has a one year lIMIted Warranty
C
elestron WebsIte For detaIled InForMatIon on all
C
elestron aCCessorIes at WWW
odels
Adapter
Plate
C14 Holes
F
igure
PiggyBack Adapter
Adapter
Plate
,
ount
F
igure
.
Celestron
Product design and specifications are subject to change
without prior notification.
Designed and intended for those 13 years of age and older.
3 – W
P
a
ith the
iggyback
daPter
c11/c14
For
t
4 – W
P
a
ith the
iggyback
daPter
c11/c14
For
.
.
.
CoM
Piggyback
Mount
C11 Holes
, a
P
daPter
late
, a
P
daPter
late
