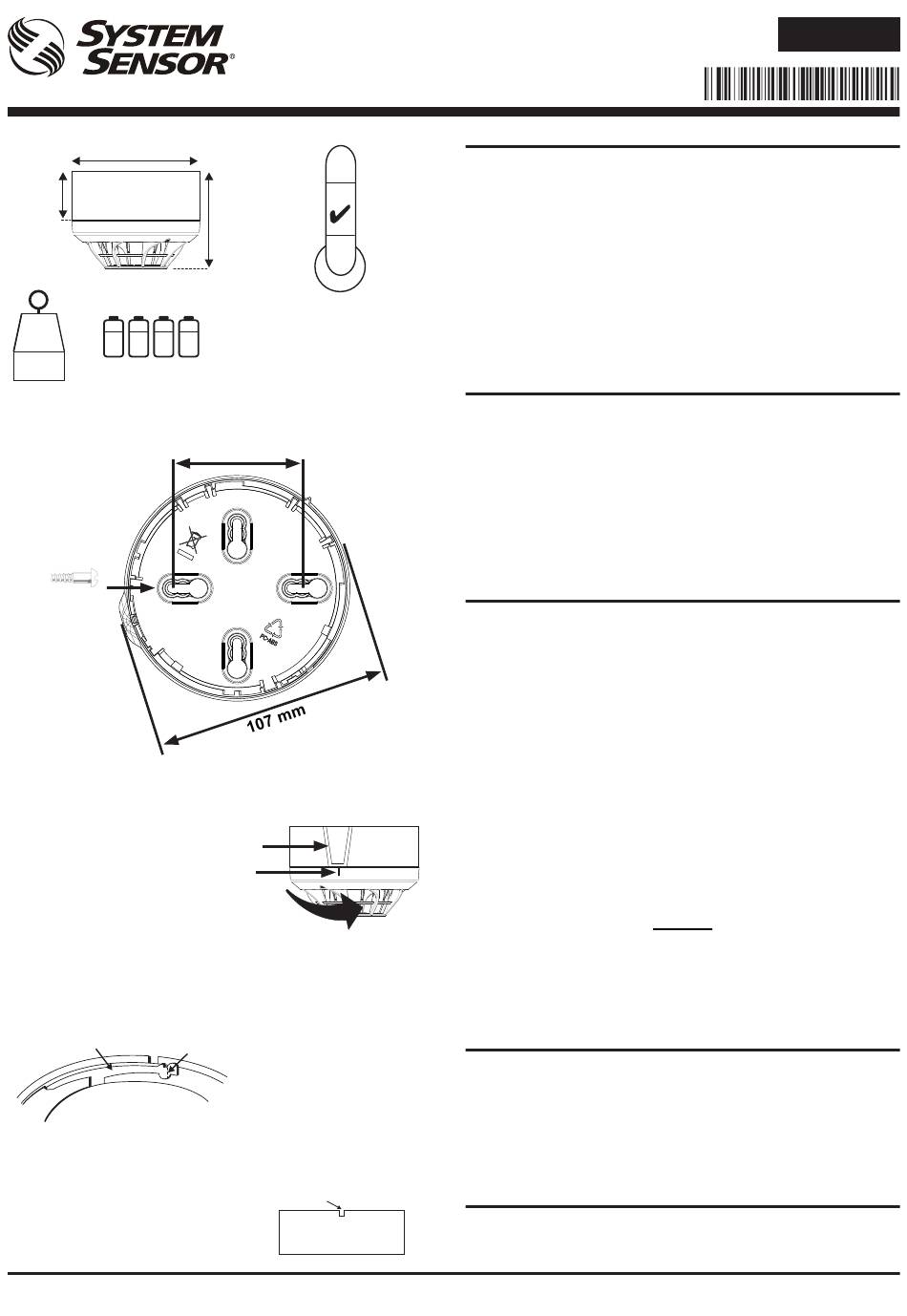

System Sensor 52051E-RF Installations- Und Wartungsanleitung

104 mm
B501RF
32 mm
+
124 g
48 g
(66 g)
Figure 1: B501RF Mounting
≤ M4
Figure 2: Attaching Sensor Head to Base
LINE UP MARK ON
SENSOR HEAD
WITH BULGE ON
BASE AND TURN
CLOCKWISE
Figure 3a: Activation of Tamper Resist Feature
PLASTIC LEVER
Figure 3b: Removing Sensor Head From Base
USE A SMALL-BLADED SCREWDRIVER TO PUSH
PLASTIC IN THE DIRECTION OF THE ARROW
D200-302-00
52051E-RF
WIRELESS THERMAL FIRE SENSOR
INSTALLATION AND MAINTENANCE INSTRUCTIONS
70 mm
=
238 g
50-60 mm
BULGE
MARK ON
SENSOR HEAD
BREAK TAB AT DOTTED LINE BY
TWISTING TOWARDS CENTRE OF
BASE
Pittway Tecnologica S.r.l. Via Caboto 19/3, 34147 TRIESTE, Italy
52051RE-RF
AND
DESCRIPTION
These heat sensors are battery operated RF devices designed for
use with the M200G-RF radio gateway. They contain a wireless
40°C
transceiver and run on an addressable fire system (using a
compatible proprietary communication protocol).
-30°C
The 52051E-RF provides fixed 58
The 52051RE-RF provides 58
temperature sensing (A1R).
The sensors plug into the B501RF wireless base.
These devices conform to EN54-25 and EN54-5 (classes A1S
and A1R). They comply with the requirements of 2014/53/EU for
conformance with the RED directive.
SPECIFICATIONS
Supply Voltage:
Standby Current:
Red LED Current Max:
Re-sync time:
Batteries:
Battery Life:
Radio Frequency:
RF output power:
Range:
Relative Humidity:
INSTALLATION
This equipment and any associated work must be installed in
accordance with all relevant codes and regulations.
Figure 1 details the installation of the B501RF base.
Spacing between radio system devices must be a minimum of 1m
Figure 2 details attaching the sensor head to the base.
Anti-Tamper Features
The base includes a feature that, when activated, prevents removal
of the sensor from the base without the use of a tool. See Figures
3a and 3b for details on this.
Head Removal Warning - An alert message is signalled to the CIE
via the Gateway when a head is removed from its base.
Figure 4 details the battery installation and the location of the rotary
address switches
Batteries should only be installed at the time of commissioning
Using these battery products for long periods at
temperatures below -20°C can reduce the battery life
Observe the battery manufacturer's precautions for use and
SETTING THE ADDRESS
Set the loop address by turning the two rotary decade switches
on the underside of the sensor (see figure 4), using a screwdriver
to rotate the wheels to the desired address. The device will take
one sensor address on the loop. Select a number between 01 and
159 (Note: The number of addresses available will be dependent
on panel capability, check the panel documentation for information
on this).
PROGRAMMING
To load network parameters into the RF sensor, it is necessary to
link the RF gateway and the RF sensor in a configuration operation.
At commissioning time, with the RF network devices powered
C temperature sensing (A1S).
o
C rate-of-rise (10
o
3.3 V Direct Current max.
@ 3V: 120 µA (typical in normal operating mode)
4mA
35s (max time to normal RF communication
from device power on)
4 x Duracell Ultra123
4 years @ 25 C
o
865-870 MHz
14dBm (max)
500m (typ. in free air)
10% to 93% (non-condensing)
.
Important
Warning
considerably (by up to 30% or more)
requirements for disposal
E N G L I S H
I 56- 3891- 002
C/minute)
o
I56-3891-002
