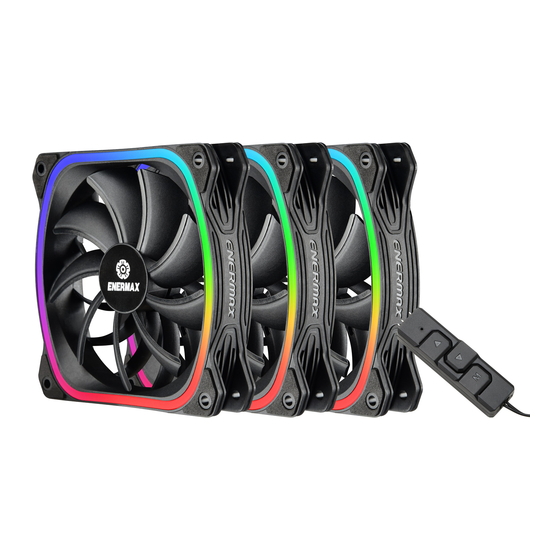

ENERMAX SquA RGB Benutzerhandbuch

Product model: UCSQARGB12P-BP3
Chapter 1 – Specifications
Model Number
Dimension (mm)
Speed (RPM)
Air Flow (CFM)
Air Flow (m 3 /h)
Static Pressure (mm-H O)
2
Minimal Noise (dBA)
Rated Current- Fan (A)
Rated Current- ARGB LED (A)
Rated Voltage (V)
ARGB Rated Voltage (V)
MTBF (hours)
Connector 1x 4 pin PWM connector, 1x 4 pin ARGB connector (5V/D/-/G)
Accessory
※ Product specifications are subject to change without prior notice.
※ For detailed information, please visit our website at www.enermax.com.
Chapter 3 – Fan Pack Installation Guide
* Use PWM 3 to 1 cable to connect 3 fans,
then connect the fan connector to the
PWM header on the motherboard.
PWM 3 to 1 cable
PWM Header
PWM 3 to1 Cable
UCSQARGB12P-BP3
120(W) x 120(H) x 26(D)
300 ~ 1500 (±10%)
24.53 ~ 68.27
41.67 ~ 115.99
0.17 ~ 1.898
12 ~ 23
0.21
0.68
12
5
≧100,000 hours @ 25°C
1x RGB control box, 1x ARGB 3 to 1 cable (5V/D/-/G),
1x GIGABYTE ARGB adapter, 1x PWM 3 to 1 cable,
1x Molex adaptor, 12x Screw
Fan
© 2019 ENERMAX TECHNOLOGY CORPORATION. All right reserved.
Specifications are subject to change without prior notice. Some trademark may be claimed as the property of others.
Chapter 2 – Part List
Fan x 3
PWM 3 to1
Cable x 1
*Notice: Actual specifications / product parts may vary according to different regions or countries.
※ Integrated RGB Control Box ※
RGB Control Box
ARGB 3 to 1 Cable
Caution: Max. current of RGB Control Box is 3A.
※ Addressable Motherboard Sync ※
Please ensure it is properly the connector to the motherboard.
RGB Control Box x 1 Contorl Box Power
Cable (SATA) x 1
GIGABYTE Molex Adapter Screw x 12
ARGB Adapter
x 1
x 1
Contorl Box Power
Cable (SATA)
G
For RGB lighting Sync, two ways to
demonstrate the lighting.
D
1. Integrated RGB Control Box.
5V
2. Addressable Motherboard Sync.
Addressable RGB
Header
G
D
+5V
Motherboard (not included in the package)
ARGB 3 to 1 Cable
x 1
Magnetic
Adhesive x 1
(For Control Box)
PSU(not included in the package)
