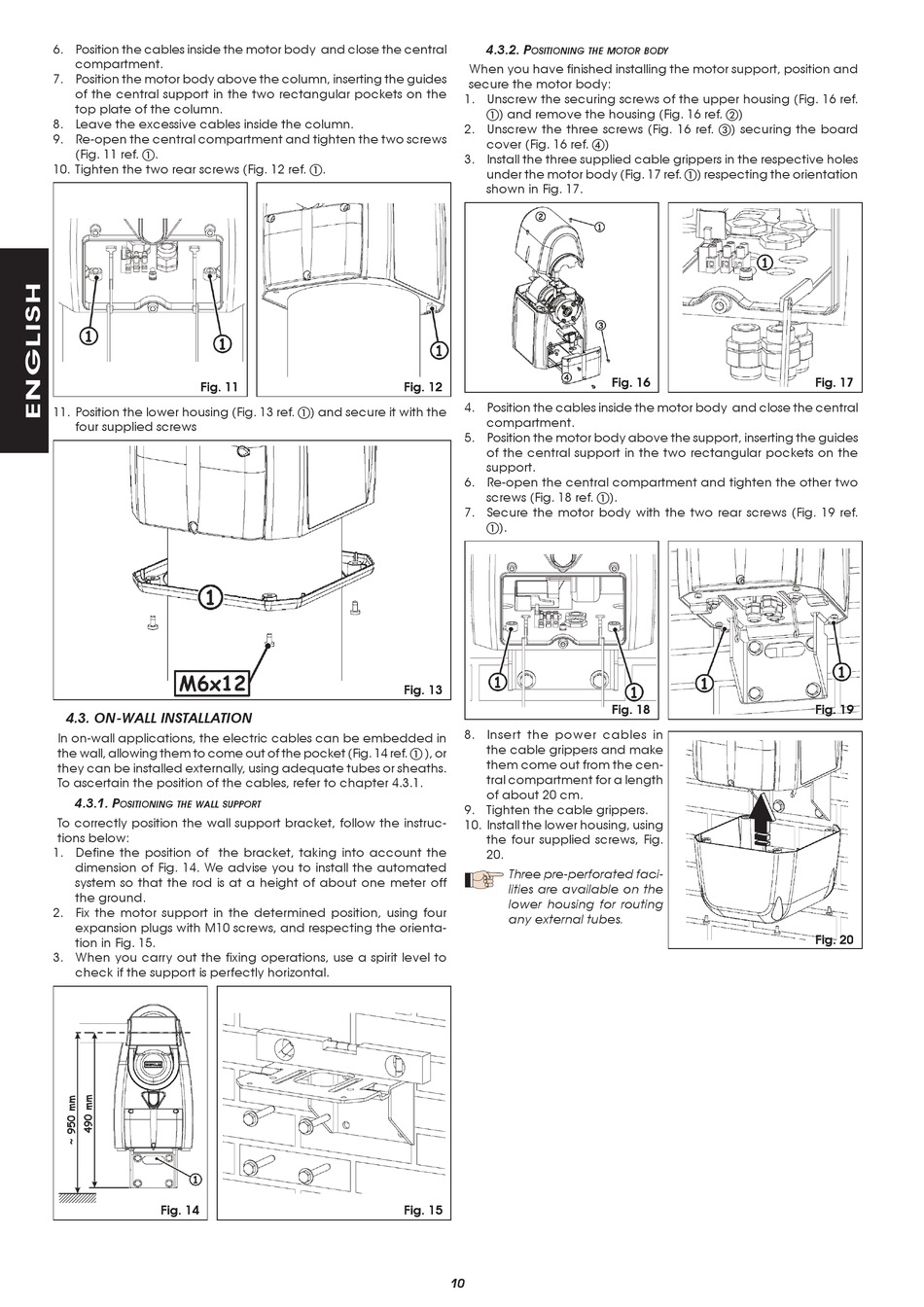

6. Position the cables inside the motor body and close the central
compartment.
7. Position the motor body above the column, inserting the guides
of the central support in the two rectangular pockets on the
top plate of the column.
8. Leave the excessive cables inside the column.
9. Re-open the central compartment and tighten the two screws
(Fig. 11 ref. a.
10. Tighten the two rear screws (Fig. 12 ref. a.
Fig. 11 Fig. 11
11. Position the lower housing (Fig. 13 ref. a) and secure it with the
four supplied screws
4.3. ON-WALL INSTALLATION
In on-wall applications, the electric cables can be embedded in
the wall, allowing them to come out of the pocket (Fig. 14 ref. a ), or
they can be installed externally, using adequate tubes or sheaths.
To ascertain the position of the cables, refer to chapter 4.3.1.
4.3.1. p
ositioning the Wall support
To correctly position the wall support bracket, follow the instruc-
tions below:
1. Define the position of the bracket, taking into account the
dimension of Fig. 14. We advise you to install the automated
system so that the rod is at a height of about one meter off
the ground.
2. Fix the motor support in the determined position, using four
expansion plugs with M10 screws, and respecting the orienta-
tion in Fig. 15.
3. When you carry out the fixing operations, use a spirit level to
check if the support is perfectly horizontal.
Fig. 14 Fig. 14
4.3.2. p
ositioning the motor body
When you have finished installing the motor support, position and
secure the motor body:
1. Unscrew the securing screws of the upper housing (Fig. 16 ref.
a) and remove the housing (Fig. 16 ref. b)
2. Unscrew the three screws (Fig. 16 ref. c) securing the board
cover (Fig. 16 ref. d)
3. Install the three supplied cable grippers in the respective holes
under the motor body (Fig. 17 ref. a) respecting the orientation
shown in Fig. 17.
Fig. 12 Fig. 12
4. Position the cables inside the motor body and close the central
compartment.
5. Position the motor body above the support, inserting the guides
of the central support in the two rectangular pockets on the
support.
6. Re-open the central compartment and tighten the other two
screws (Fig. 18 ref. a).
7. Secure the motor body with the two rear screws (Fig. 19 ref.
a).
Fig. 13 Fig. 13
8. Insert the power cables in
the cable grippers and make
them come out from the cen-
tral compartment for a length
of about 20 cm.
9. Tighten the cable grippers.
10. Install the lower housing, using
the four supplied screws, Fig.
20.
Three pre-perforated faci-
lities are available on the
lower housing for routing
any external tubes.
Fig. 15 Fig. 15
0
Fig. 16 Fig. 16
Fig. 18 Fig. 18
Fig. 17 Fig. 17
Fig. 19 Fig. 19
Fig. 20 Fig. 20
