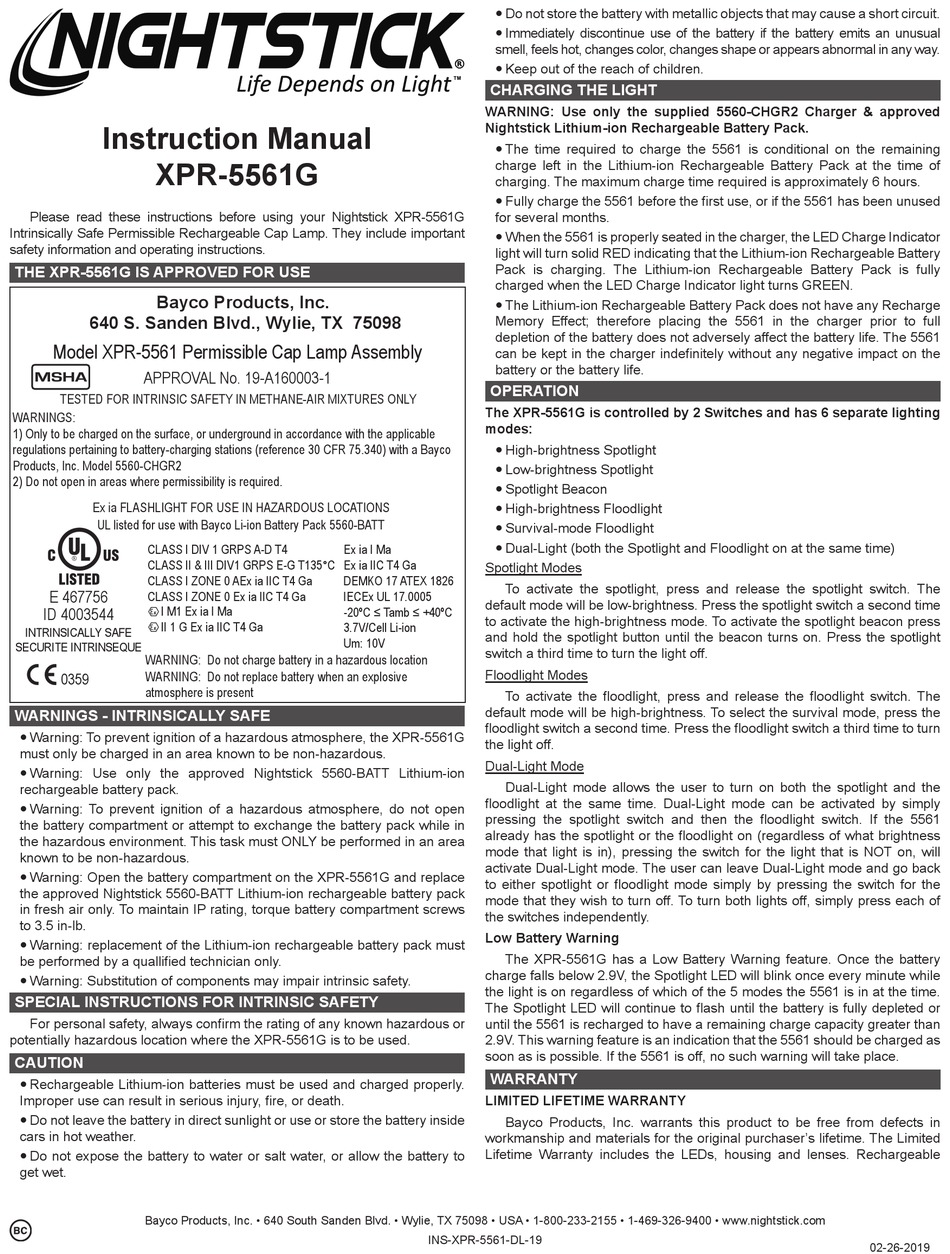

Instruction Manual
XPR-5561G

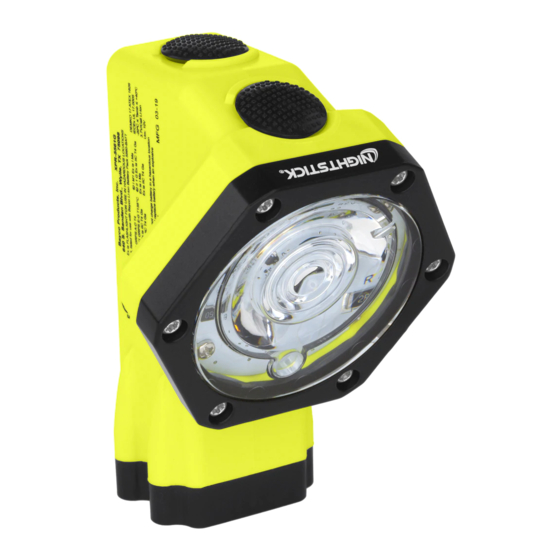

Please read these instructions before using your Nightstick XPR-5561G
Intrinsically Safe Permissible Rechargeable Cap Lamp. They include important
safety information and operating instructions.
THE XPR-5561G IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
Model XPR-5561 Permissible Cap Lamp Assembly
APPROVAL No. 19-A160003-1
TESTED FOR INTRINSIC SAFETY IN METHANE-AIR MIXTURES ONLY
WARNINGS:
1) Only to be charged on the surface, or underground in accordance with the applicable
regulations pertaining to battery-charging stations (reference 30 CFR 75.340) with a Bayco
Products, Inc. Model 5560-CHGR2
2) Do not open in areas where permissibility is required.
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
UL listed for use with Bayco Li-ion Battery Pack 5560-BATT
CLASS I DIV 1 GRPS A-D T4
CLASS II & III DIV1 GRPS E-G T135°C
CLASS I ZONE 0 AEx ia IIC T4 Ga
E 467756
CLASS I ZONE 0 Ex ia IIC T4 Ga
I M1 Ex ia I Ma
ID 4003544
II 1 G Ex ia IIC T4 Ga
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
WARNING: Do not charge battery in a hazardous location
WARNING: Do not replace battery when an explosive
0359
atmosphere is present
WARNINGS - INTRINSICALLY SAFE
y Warning: To prevent ignition of a hazardous atmosphere, the XPR-5561G
must only be charged in an area known to be non-hazardous.
y Warning: Use only the approved Nightstick 5560-BATT Lithium-ion
rechargeable battery pack.
y Warning: To prevent ignition of a hazardous atmosphere, do not open
the battery compartment or attempt to exchange the battery pack while in
the hazardous environment. This task must ONLY be performed in an area
known to be non-hazardous.
y Warning: Open the battery compartment on the XPR-5561G and replace
the approved Nightstick 5560-BATT Lithium-ion rechargeable battery pack
in fresh air only. To maintain IP rating, torque battery compartment screws
to 3.5 in-lb.
y Warning: replacement of the Lithium-ion rechargeable battery pack must
be performed by a quallified technician only.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the XPR-5561G is to be used.
CAUTION
y Rechargeable Lithium-ion batteries must be used and charged properly.
Improper use can result in serious injury, fire, or death.
y Do not leave the battery in direct sunlight or use or store the battery inside
cars in hot weather.
y Do not expose the battery to water or salt water, or allow the battery to
get wet.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • USA • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
y Do not store the battery with metallic objects that may cause a short circuit.
y Immediately discontinue use of the battery if the battery emits an unusual
smell, feels hot, changes color, changes shape or appears abnormal in any way.
y Keep out of the reach of children.
CHARGING THE LIGHT
WARNING: Use only the supplied 5560-CHGR2 Charger & approved
Nightstick Lithium-ion Rechargeable Battery Pack.
y The time required to charge the 5561 is conditional on the remaining
charge left in the Lithium-ion Rechargeable Battery Pack at the time of
charging. The maximum charge time required is approximately 6 hours.
y Fully charge the 5561 before the first use, or if the 5561 has been unused
for several months.
y When the 5561 is properly seated in the charger, the LED Charge Indicator
light will turn solid RED indicating that the Lithium-ion Rechargeable Battery
Pack is charging. The Lithium-ion Rechargeable Battery Pack is fully
charged when the LED Charge Indicator light turns GREEN.
y The Lithium-ion Rechargeable Battery Pack does not have any Recharge
Memory Effect; therefore placing the 5561 in the charger prior to full
depletion of the battery does not adversely affect the battery life. The 5561
can be kept in the charger indefinitely without any negative impact on the
battery or the battery life.
OPERATION
The XPR-5561G is controlled by 2 Switches and has 6 separate lighting
modes:
y High-brightness Spotlight
y Low-brightness Spotlight
y Spotlight Beacon
y High-brightness Floodlight
y Survival-mode Floodlight
y Dual-Light (both the Spotlight and Floodlight on at the same time)
Ex ia I Ma
Ex ia IIC T4 Ga Spotlight Modes
DEMKO 17 ATEX 1826
To activate the spotlight, press and release the spotlight switch. The
IECEx UL 17.0005
default mode will be low-brightness. Press the spotlight switch a second time
-20ºC ≤ Tamb ≤ +40ºC
to activate the high-brightness mode. To activate the spotlight beacon press
3.7V/Cell Li-ion
and hold the spotlight button until the beacon turns on. Press the spotlight
Um: 10V
switch a third time to turn the light off.
Floodlight Modes
To activate the floodlight, press and release the floodlight switch. The
default mode will be high-brightness. To select the survival mode, press the
floodlight switch a second time. Press the floodlight switch a third time to turn
the light off.
Dual-Light Mode
Dual-Light mode allows the user to turn on both the spotlight and the
floodlight at the same time. Dual-Light mode can be activated by simply
pressing the spotlight switch and then the floodlight switch. If the 5561
already has the spotlight or the floodlight on (regardless of what brightness
mode that light is in), pressing the switch for the light that is NOT on, will
activate Dual-Light mode. The user can leave Dual-Light mode and go back
to either spotlight or floodlight mode simply by pressing the switch for the
mode that they wish to turn off. To turn both lights off, simply press each of
the switches independently.
Low Battery Warning
The XPR-5561G has a Low Battery Warning feature. Once the battery
charge falls below 2.9V, the Spotlight LED will blink once every minute while
the light is on regardless of which of the 5 modes the 5561 is in at the time.
The Spotlight LED will continue to flash until the battery is fully depleted or
until the 5561 is recharged to have a remaining charge capacity greater than
2.9V. This warning feature is an indication that the 5561 should be charged as
soon as is possible. If the 5561 is off, no such warning will take place.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in
workmanship and materials for the original purchaser's lifetime. The Limited
Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable
INS-XPR-5561-DL-19
02-26-2019
