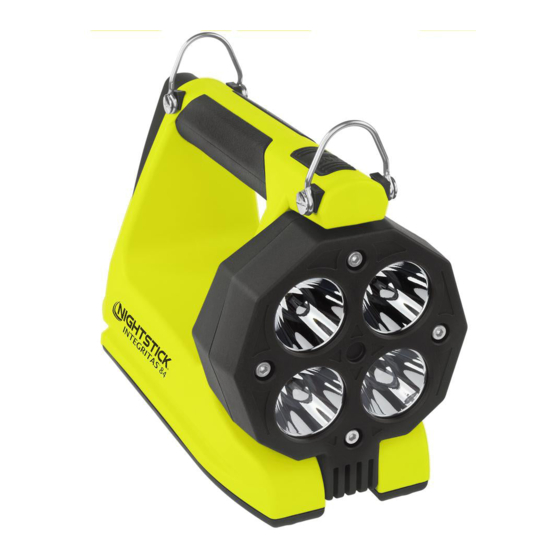

NightStick XPR-5584 Gebrauchsanleitung

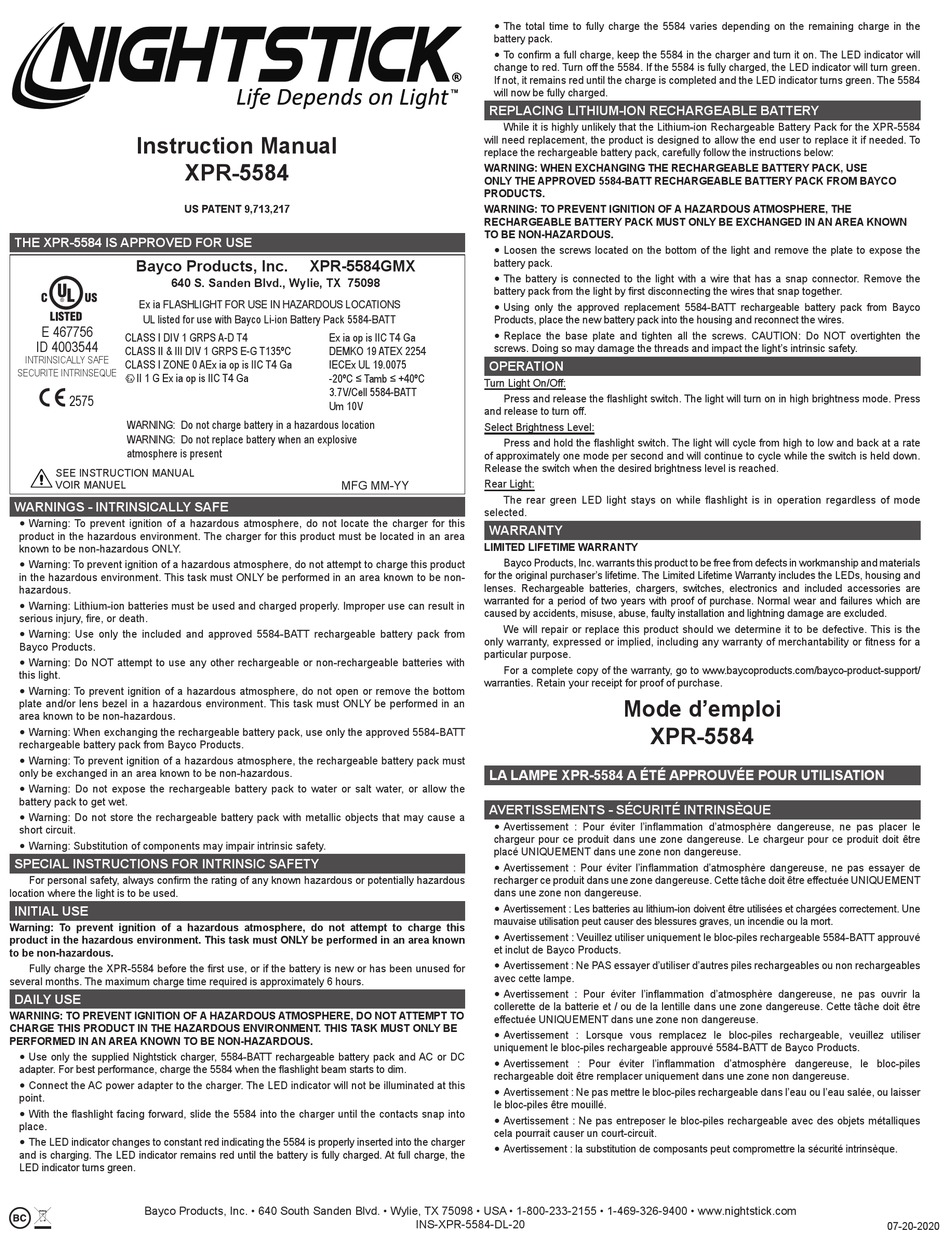

Instruction Manual
XPR-5584
US PATENT 9,713,217
THE XPR-5584 IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
UL listed for use with Bayco Li-ion Battery Pack 5584-BATT
E 467756
CLASS I DIV 1 GRPS A-D T4
ID 4003544
CLASS II & III DIV 1 GRPS E-G T135ºC
INTRINSICALLY SAFE
CLASS I ZONE 0 AEx ia op is IIC T4 Ga
SECURITE INTRINSEQUE
II 1 G Ex ia op is IIC T4 Ga
2575
WARNING: Do not charge battery in a hazardous location
WARNING: Do not replace battery when an explosive
atmosphere is present
SEE INSTRUCTION MANUAL
VOIR MANUEL
WARNINGS - INTRINSICALLY SAFE
y Warning: To prevent ignition of a hazardous atmosphere, do not locate the charger for this
product in the hazardous environment. The charger for this product must be located in an area
known to be non-hazardous ONLY.
y Warning: To prevent ignition of a hazardous atmosphere, do not attempt to charge this product
in the hazardous environment. This task must ONLY be performed in an area known to be non-
hazardous.
y Warning: Lithium-ion batteries must be used and charged properly. Improper use can result in
serious injury, fire, or death.
y Warning: Use only the included and approved 5584-BATT rechargeable battery pack from
Bayco Products.
y Warning: Do NOT attempt to use any other rechargeable or non-rechargeable batteries with
this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open or remove the bottom
plate and/or lens bezel in a hazardous environment. This task must ONLY be performed in an
area known to be non-hazardous.
y Warning: When exchanging the rechargeable battery pack, use only the approved 5584-BATT
rechargeable battery pack from Bayco Products.
y Warning: To prevent ignition of a hazardous atmosphere, the rechargeable battery pack must
only be exchanged in an area known to be non-hazardous.
y Warning: Do not expose the rechargeable battery pack to water or salt water, or allow the
battery pack to get wet.
y Warning: Do not store the rechargeable battery pack with metallic objects that may cause a
short circuit.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
For personal safety, always confirm the rating of any known hazardous or potentially hazardous
location where the light is to be used.
INITIAL USE
Warning: To prevent ignition of a hazardous atmosphere, do not attempt to charge this
product in the hazardous environment. This task must ONLY be performed in an area known
to be non-hazardous.
Fully charge the XPR-5584 before the first use, or if the battery is new or has been unused for
several months. The maximum charge time required is approximately 6 hours.
DAILY USE
WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, DO NOT ATTEMPT TO
CHARGE THIS PRODUCT IN THE HAZARDOUS ENVIRONMENT. THIS TASK MUST ONLY BE
PERFORMED IN AN AREA KNOWN TO BE NON-HAZARDOUS.
y Use only the supplied Nightstick charger, 5584-BATT rechargeable battery pack and AC or DC
adapter. For best performance, charge the 5584 when the flashlight beam starts to dim.
y Connect the AC power adapter to the charger. The LED indicator will not be illuminated at this
point.
y With the flashlight facing forward, slide the 5584 into the charger until the contacts snap into
place.
y The LED indicator changes to constant red indicating the 5584 is properly inserted into the charger
and is charging. The LED indicator remains red until the battery is fully charged. At full charge, the
LED indicator turns green.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • USA • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
will need replacement, the product is designed to allow the end user to replace it if needed. To
replace the rechargeable battery pack, carefully follow the instructions below:
WARNING: WHEN EXCHANGING THE RECHARGEABLE BATTERY PACK, USE
ONLY THE APPROVED 5584-BATT RECHARGEABLE BATTERY PACK FROM BAYCO
PRODUCTS.
WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE
RECHARGEABLE BATTERY PACK MUST ONLY BE EXCHANGED IN AN AREA KNOWN
TO BE NON-HAZARDOUS.
XPR-5584GMX
Ex ia op is IIC T4 Ga
DEMKO 19 ATEX 2254
IECEx UL 19.0075
-20ºC ≤ Tamb ≤ +40ºC
Turn Light On/Off:
3.7V/Cell 5584-BATT
Um 10V
and release to turn off.
Select Brightness Level:
of approximately one mode per second and will continue to cycle while the switch is held down.
Release the switch when the desired brightness level is reached.
Rear Light:
MFG MM-YY
selected.
LIMITED LIFETIME WARRANTY
for the original purchaser's lifetime. The Limited Lifetime Warranty includes the LEDs, housing and
lenses. Rechargeable batteries, chargers, switches, electronics and included accessories are
warranted for a period of two years with proof of purchase. Normal wear and failures which are
caused by accidents, misuse, abuse, faulty installation and lightning damage are excluded.
only warranty, expressed or implied, including any warranty of merchantability or fitness for a
particular purpose.
warranties. Retain your receipt for proof of purchase.
INS-XPR-5584-DL-20
y The total time to fully charge the 5584 varies depending on the remaining charge in the
battery pack.
y To confirm a full charge, keep the 5584 in the charger and turn it on. The LED indicator will
change to red. Turn off the 5584. If the 5584 is fully charged, the LED indicator will turn green.
If not, it remains red until the charge is completed and the LED indicator turns green. The 5584
will now be fully charged.
REPLACING LITHIUM-ION RECHARGEABLE BATTERY
While it is highly unlikely that the Lithium-ion Rechargeable Battery Pack for the XPR-5584
y Loosen the screws located on the bottom of the light and remove the plate to expose the
battery pack.
y The battery is connected to the light with a wire that has a snap connector. Remove the
battery pack from the light by first disconnecting the wires that snap together.
y Using only the approved replacement 5584-BATT rechargeable battery pack from Bayco
Products, place the new battery pack into the housing and reconnect the wires.
y Replace the base plate and tighten all the screws. CAUTION: Do NOT overtighten the
screws. Doing so may damage the threads and impact the light's intrinsic safety.
OPERATION
Press and release the flashlight switch. The light will turn on in high brightness mode. Press
Press and hold the flashlight switch. The light will cycle from high to low and back at a rate
The rear green LED light stays on while flashlight is in operation regardless of mode
WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship and materials
We will repair or replace this product should we determine it to be defective. This is the
For a complete copy of the warranty, go to www.baycoproducts.com/bayco-product-support/
Mode d'emploi
XPR-5584
LA LAMPE XPR-5584 A ÉTÉ APPROUVÉE POUR UTILISATION
AVERTISSEMENTS - SÉCURITÉ INTRINSÈQUE
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas placer le
chargeur pour ce produit dans une zone dangereuse. Le chargeur pour ce produit doit être
placé UNIQUEMENT dans une zone non dangereuse.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas essayer de
recharger ce produit dans une zone dangereuse. Cette tâche doit être effectuée UNIQUEMENT
dans une zone non dangereuse.
y Avertissement : Les batteries au lithium-ion doivent être utilisées et chargées correctement. Une
mauvaise utilisation peut causer des blessures graves, un incendie ou la mort.
y Avertissement : Veuillez utiliser uniquement le bloc-piles rechargeable 5584-BATT approuvé
et inclut de Bayco Products.
y Avertissement : Ne PAS essayer d'utiliser d'autres piles rechargeables ou non rechargeables
avec cette lampe.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas ouvrir la
collerette de la batterie et / ou de la lentille dans une zone dangereuse. Cette tâche doit être
effectuée UNIQUEMENT dans une zone non dangereuse.
y Avertissement : Lorsque vous remplacez le bloc-piles rechargeable, veuillez utiliser
uniquement le bloc-piles rechargeable approuvé 5584-BATT de Bayco Products.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, le bloc-piles
rechargeable doit être remplacer uniquement dans une zone non dangereuse.
y Avertissement : Ne pas mettre le bloc-piles rechargeable dans l'eau ou l'eau salée, ou laisser
le bloc-piles être mouillé.
y Avertissement : Ne pas entreposer le bloc-piles rechargeable avec des objets métalliques
cela pourrait causer un court-circuit.
y Avertissement : la substitution de composants peut compromettre la sécurité intrinsèque.
07-20-2020
