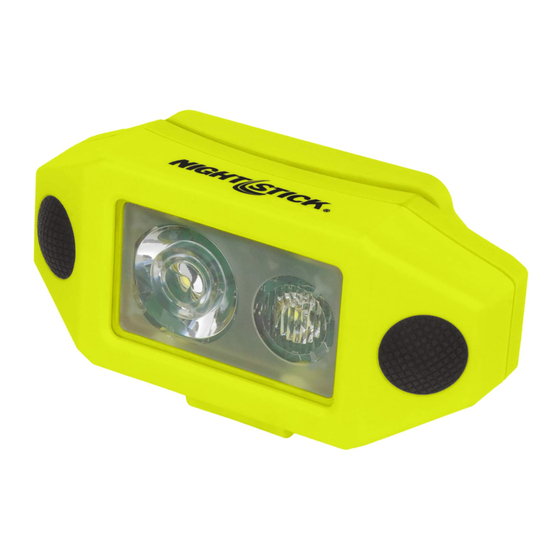

NightStick XPP-5460GCX Gebrauchsanleitung

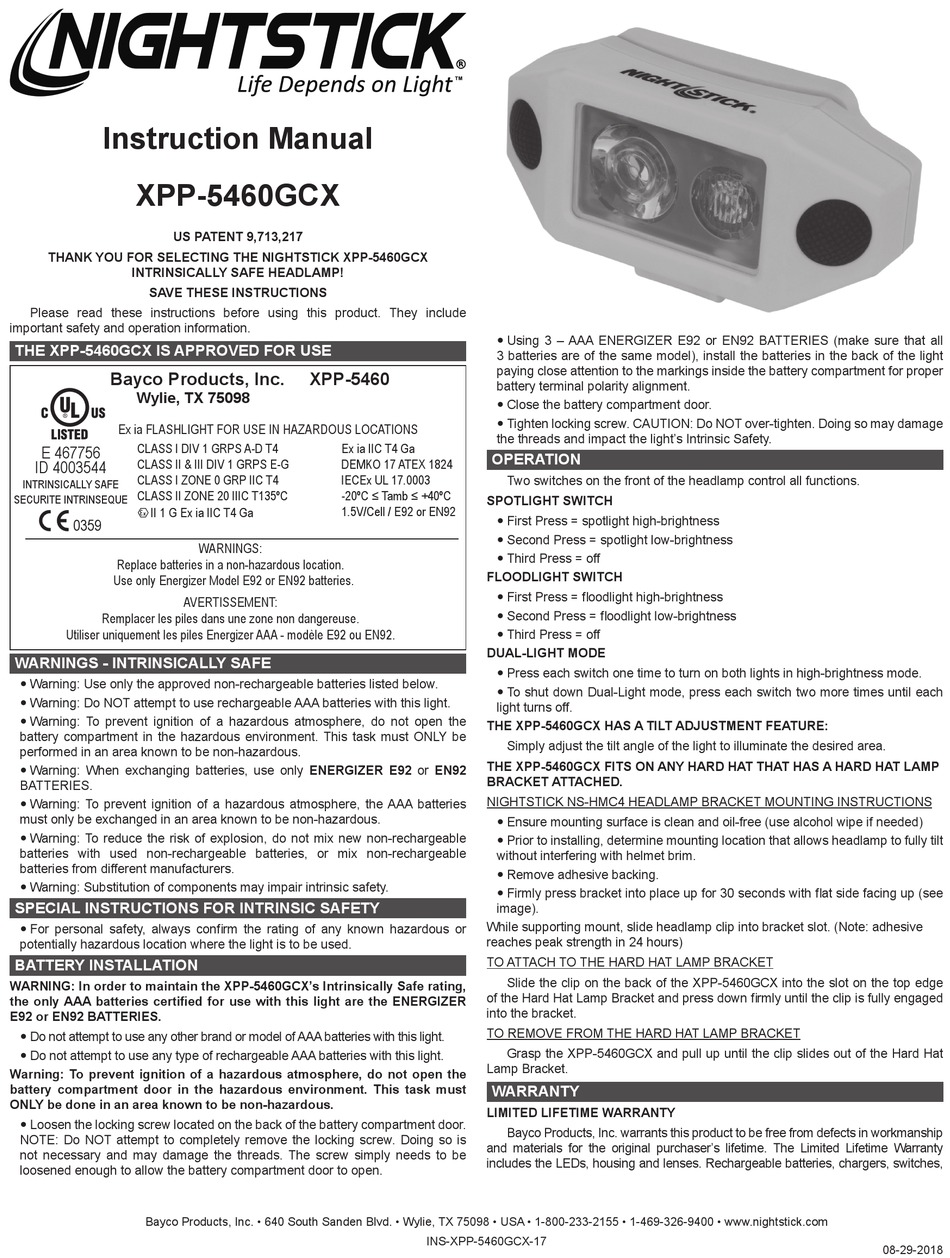

Instruction Manual
XPP-5460GCX
US PATENT 9,713,217
THANK YOU FOR SELECTING THE NIGHTSTICK XPP-5460GCX
INTRINSICALLY SAFE HEADLAMP!
SAVE THESE INSTRUCTIONS
Please read these instructions before using this product. They include
important safety and operation information.
THE XPP-5460GCX IS APPROVED FOR USE
Bayco Products, Inc.
Wylie, TX 75098
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
CLASS I DIV 1 GRPS A-D T4
E 467756
CLASS II & III DIV 1 GRPS E-G
ID 4003544
CLASS I ZONE 0 GRP IIC T4
INTRINSICALLY SAFE
CLASS II ZONE 20 IIIC T135ºC
SECURITE INTRINSEQUE
II 1 G Ex ia IIC T4 Ga
0359
Replace batteries in a non-hazardous location.
Use only Energizer Model E92 or EN92 batteries.
AVERTISSEMENT:
Remplacer les piles dans une zone non dangereuse.
Utiliser uniquement les piles Energizer AAA - modèle E92 ou EN92.
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AAA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the
battery compartment in the hazardous environment. This task must ONLY be
performed in an area known to be non-hazardous.
y Warning: When exchanging batteries, use only ENERGIZER E92 or EN92
BATTERIES.
y Warning: To prevent ignition of a hazardous atmosphere, the AAA batteries
must only be exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable
batteries with used non-rechargeable batteries, or mix non-rechargeable
batteries from different manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confi rm the rating of any known hazardous or
potentially hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5460GCX's Intrinsically Safe rating,
the only AAA batteries certifi ed for use with this light are the ENERGIZER
E92 or EN92 BATTERIES.
y Do not attempt to use any other brand or model of AAA batteries with this light.
y Do not attempt to use any type of rechargeable AAA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not open the
battery compartment door in the hazardo us environment. This task must
ONLY be done in an area known to be non-hazardous.
y Loosen the locking screw located on the back of the battery compartment door.
NOTE: Do NOT attempt to completely remove the locking screw. Doing so is
not necessary and may damage the threads. The screw simply needs to be
loosened enough to allow the battery compartment door to open.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • USA • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5460
Ex ia IIC T4 Ga
DEMKO 17 ATEX 1824
IECEx UL 17.0003
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell / E92 or EN92
WARNINGS:
y Using 3 – AAA ENERGIZER E92 or EN92 BATTERIES (make sure that all
3 batteries are of the same model), install the batteries in the back of the light
paying close attention to the markings inside the battery compartment for proper
battery terminal polarity alignment.
y Close the battery compartment door.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may damage
the threads and impact the light's Intrinsic Safety.
OPERATION
Two switches on the front of the headlamp control all functions.
SPOTLIGHT SWITCH
y First Press = spotlight high-brightness
y Second Press = spotlight low-brightness
y Third Press = off
FLOODLIGHT SWITCH
y First Press = fl oodlight high-brightness
y Second Press = fl oodlight low-brightness
y Third Press = off
DUAL-LIGHT MODE
y Press each switch one time to turn on both lights in high-brightness mode.
y To shut down Dual-Light mode, press each switch two more times until each
light turns off.
THE XPP-5460GCX HAS A TILT ADJUSTMENT FEATURE:
Simply adjust the tilt angle of the light to illuminate the desired area.
THE XPP-5460GCX FITS ON ANY HARD HAT THAT HAS A HARD HAT LAMP
BRACKET ATTACHED.
NIGHTSTICK NS-HMC4 HEADLAMP BRACKET MOUNTING INSTRUCTIONS
y Ensure mounting surface is clean and oil-free (use alcohol wipe if needed)
y Prior to installing, determine mounting location that allows headlamp to fully tilt
without interfering with helmet brim.
y Remove adhesive backing.
y Firmly press bracket into place up for 30 seconds with fl at side facing up (see
image).
While supporting mount, slide headlamp clip into bracket slot. (Note: adhesive
reaches peak strength in 24 hours)
TO ATTACH TO THE HARD HAT LAMP BRACKET
Slide the clip on the back of the XPP-5460GCX into the slot on the top edge
of the Hard Hat Lamp Bracket and press down fi rmly until the clip is fully engaged
into the bracket.
TO REMOVE FROM THE HARD HAT LAMP BRACKET
Grasp the XPP-5460GCX and pull up until the clip slides out of the Hard Hat
Lamp Bracket.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship
and materials for the original purchaser's lifetime. The Limited Lifetime Warranty
includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches,
INS-XPP-5460GCX-17
08-29-2018
