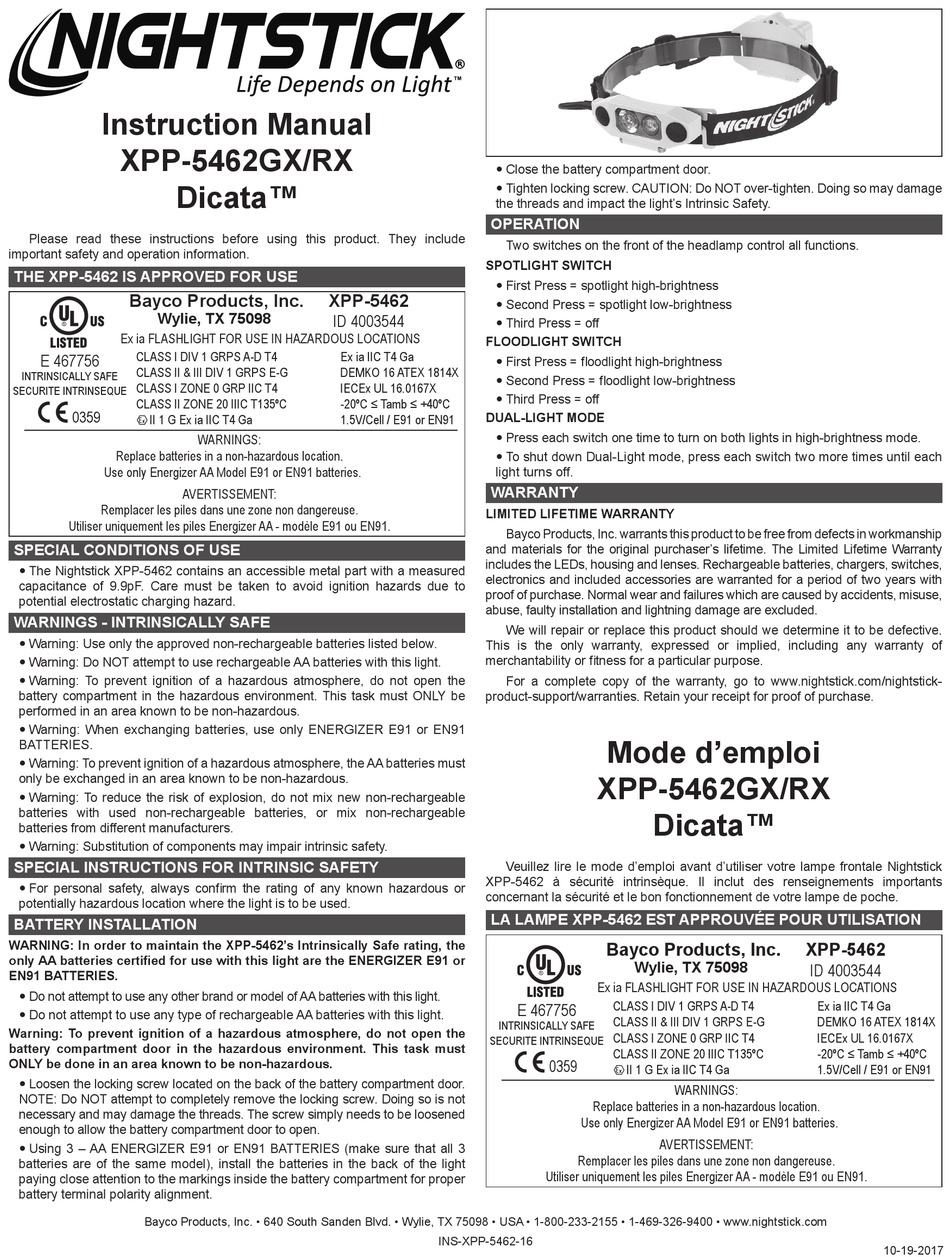

Instruction Manual

XPP-5462GX/RX

Dicata™

Please read these instructions before using this product. They include

important safety and operation information.

THE XPP-5462 IS APPROVED FOR USE

Bayco Products, Inc.

Wylie, TX 75098

Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS

CLASS I DIV 1 GRPS A-D T4

E 467756

CLASS II & III DIV 1 GRPS E-G

INTRINSICALLY SAFE

CLASS I ZONE 0 GRP IIC T4

SECURITE INTRINSEQUE

CLASS II ZONE 20 IIIC T135ºC

0359

II 1 G Ex ia IIC T4 Ga

Replace batteries in a non-hazardous location.

Use only Energizer AA Model E91 or EN91 batteries.

AVERTISSEMENT:

Remplacer les piles dans une zone non dangereuse.

Utiliser uniquement les piles Energizer AA - modèle E91 ou EN91.

SPECIAL CONDITIONS OF USE

y The Nightstick XPP-5462 contains an accessible metal part with a measured

capacitance of 9.9pF. Care must be taken to avoid ignition hazards due to

potential electrostatic charging hazard.

WARNINGS - INTRINSICALLY SAFE

y Warning: Use only the approved non-rechargeable batteries listed below.

y Warning: Do NOT attempt to use rechargeable AA batteries with this light.

y Warning: To prevent ignition of a hazardous atmosphere, do not open the

battery compartment in the hazardous environment. This task must ONLY be

performed in an area known to be non-hazardous.

y Warning: When exchanging batteries, use only ENERGIZER E91 or EN91

BATTERIES.

y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries must

only be exchanged in an area known to be non-hazardous.

y Warning: To reduce the risk of explosion, do not mix new non-rechargeable

batteries with used non-rechargeable batteries, or mix non-rechargeable

batteries from different manufacturers.

y Warning: Substitution of components may impair intrinsic safety.

SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY

y For personal safety, always confirm the rating of any known hazardous or

potentially hazardous location where the light is to be used.

BATTERY INSTALLATION

WARNING: In order to maintain the XPP-5462's Intrinsically Safe rating, the

only AA batteries certified for use with this light are the ENERGIZER E91 or

EN91 BATTERIES.

y Do not attempt to use any other brand or model of AA batteries with this light.

y Do not attempt to use any type of rechargeable AA batteries with this light.

Warning: To prevent ignition of a hazardous atmosphere, do not open the

battery compartment door in the hazardous environment. This task must

ONLY be done in an area known to be non-hazardous.

y Loosen the locking screw located on the back of the battery compartment door.

NOTE: Do NOT attempt to completely remove the locking screw. Doing so is not

necessary and may damage the threads. The screw simply needs to be loosened

enough to allow the battery compartment door to open.

y Using 3 – AA ENERGIZER E91 or EN91 BATTERIES (make sure that all 3

batteries are of the same model), install the batteries in the back of the light

paying close attention to the markings inside the battery compartment for proper

battery terminal polarity alignment.

Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • USA • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com

XPP-5462

ID 4003544

Ex ia IIC T4 Ga

DEMKO 16 ATEX 1814X

IECEx UL 16.0167X

-20ºC ≤ Tamb ≤ +40ºC

1.5V/Cell / E91 or EN91

WARNINGS:

y Close the battery compartment door.

y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may damage

the threads and impact the light's Intrinsic Safety.

OPERATION

Two switches on the front of the headlamp control all functions.

SPOTLIGHT SWITCH

y First Press = spotlight high-brightness

y Second Press = spotlight low-brightness

y Third Press = off

FLOODLIGHT SWITCH

y First Press = floodlight high-brightness

y Second Press = floodlight low-brightness

y Third Press = off

DUAL-LIGHT MODE

y Press each switch one time to turn on both lights in high-brightness mode.

y To shut down Dual-Light mode, press each switch two more times until each

light turns off.

WARRANTY

LIMITED LIFETIME WARRANTY

Bayco Products, Inc. warrants this product to be free from defects in workmanship

and materials for the original purchaser's lifetime. The Limited Lifetime Warranty

includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches,

electronics and included accessories are warranted for a period of two years with

proof of purchase. Normal wear and failures which are caused by accidents, misuse,

abuse, faulty installation and lightning damage are excluded.

We will repair or replace this product should we determine it to be defective.

This is the only warranty, expressed or implied, including any warranty of

merchantability or fitness for a particular purpose.

For a complete copy of the warranty, go to www.nightstick.com/nightstick-

product-support/warranties. Retain your receipt for proof of purchase.

Mode d'emploi
