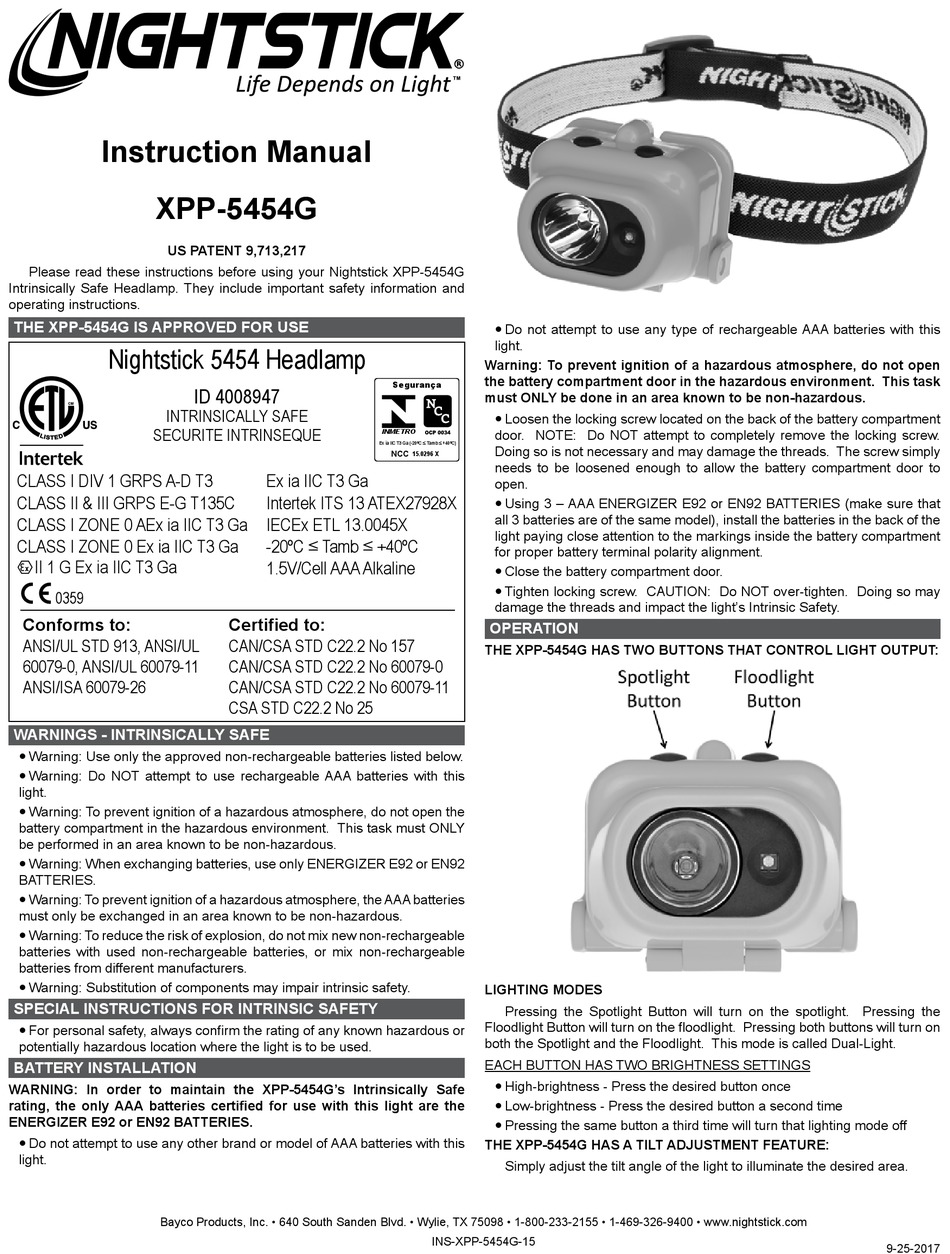

Instruction Manual
XPP-5454G
US PATENT 9,713,217
Please read these instructions before using your Nightstick XPP-5454G
Intrinsically Safe Headlamp. They include important safety information and
operating instructions.
THE XPP-5454G IS APPROVED FOR USE

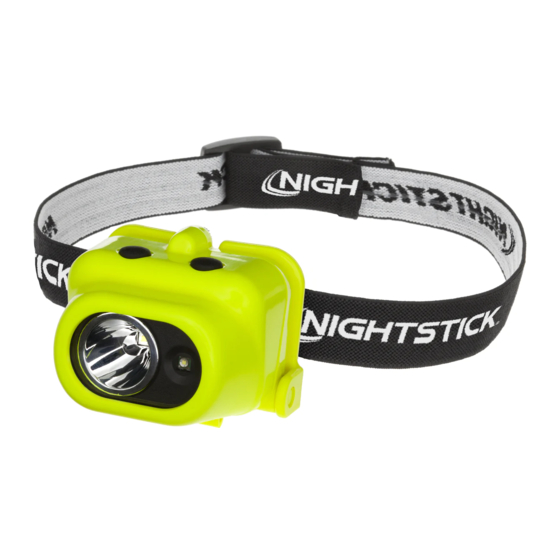

Nightstick 5454 Headlamp
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T3
CLASS II & III GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
CLASS I ZONE 0 Ex ia IIC T3 Ga
II 1 G Ex ia IIC T3 Ga
0359
Conforms to:
ANSI/UL STD 913, ANSI/UL
60079-0, ANSI/UL 60079-11
ANSI/ISA 60079-26
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AAA batteries with this
light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the
battery compartment in the hazardous environment. This task must ONLY
be performed in an area known to be non-hazardous.
y Warning: When exchanging batteries, use only ENERGIZER E92 or EN92
BATTERIES.
y Warning: To prevent ignition of a hazardous atmosphere, the AAA batteries
must only be exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable
batteries with used non-rechargeable batteries, or mix non-rechargeable
batteries from different manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5454G's Intrinsically Safe
rating, the only AAA batteries certified for use with this light are the
ENERGIZER E92 or EN92 BATTERIES.
y Do not attempt to use any other brand or model of AAA batteries with this
light.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
ID 4008947
Ex ia IIC T3 Ga
Intertek ITS 13 ATEX27928X
IECEx ETL 13.0045X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AAA Alkaline
Certified to:
CAN/CSA STD C22.2 No 157
CAN/CSA STD C22.2 No 60079-0
CAN/CSA STD C22.2 No 60079-11
CSA STD C22.2 No 25
y Do not attempt to use any type of rechargeable AAA batteries with this
light.
Warning: To prevent ignition of a hazardous atmosphere, do not open
the battery compartment door in the hazardous environment. This task
Segurança
must ONLY be done in an area known to be non-hazardous.
y Loosen the locking screw located on the back of the battery compartment
door. NOTE: Do NOT attempt to completely remove the locking screw.
INMETRO
Ex ia IIC T3 Ga (-20ºC ≤ Tamb ≤ +40ºC)
Doing so is not necessary and may damage the threads. The screw simply
NCC
15.0296 X
needs to be loosened enough to allow the battery compartment door to
open.
y Using 3 – AAA ENERGIZER E92 or EN92 BATTERIES (make sure that
all 3 batteries are of the same model), install the batteries in the back of the
light paying close attention to the markings inside the battery compartment
for proper battery terminal polarity alignment.
y Close the battery compartment door.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may
damage the threads and impact the light's Intrinsic Safety.
OPERATION
THE XPP-5454G HAS TWO BUTTONS THAT CONTROL LIGHT OUTPUT:
LIGHTING MODES
Pressing the Spotlight Button will turn on the spotlight. Pressing the
Floodlight Button will turn on the floodlight. Pressing both buttons will turn on
both the Spotlight and the Floodlight. This mode is called Dual-Light.
EACH BUTTON HAS TWO BRIGHTNESS SETTINGS
y High-brightness - Press the desired button once
y Low-brightness - Press the desired button a second time
y Pressing the same button a third time will turn that lighting mode off
THE XPP-5454G HAS A TILT ADJUSTMENT FEATURE:
Simply adjust the tilt angle of the light to illuminate the desired area.
INS-XPP-5454G-15
9-25-2017
