MX100
Lavalier Microphones
Shure Microflex MX100 Series microphones are
®
wired lavalier electret condenser microphones
designed for speech and vocal pickup, general
purpose sound reinforcement, recording, and
remote monitoring applications. They can be
clipped to neckties, lapels, and other articles
of clothing. Interchangeable cartridges make
it possible to easily reconfigure microphone
coverage as the need arises.
Features
• Wide dynamic range and frequency response
for accurate sound reproduction
• Interchangeable cartridges that provide a
choice of polar pattern for each application
• Rotatable tie-clip that pivots in 90° increments
for placement flexibility
• Dual tie-clip and belt-clip preamp
• Supplied with snap-fit foam windscreen that
controls breath noise
• Balanced, transformerless output for increased
immunity to noise over long cable runs
• RF filtering
Model Variations
MX183 (Omnidirectional)
MX184 (Supercardioid)
MX185 (Cardioid)
2

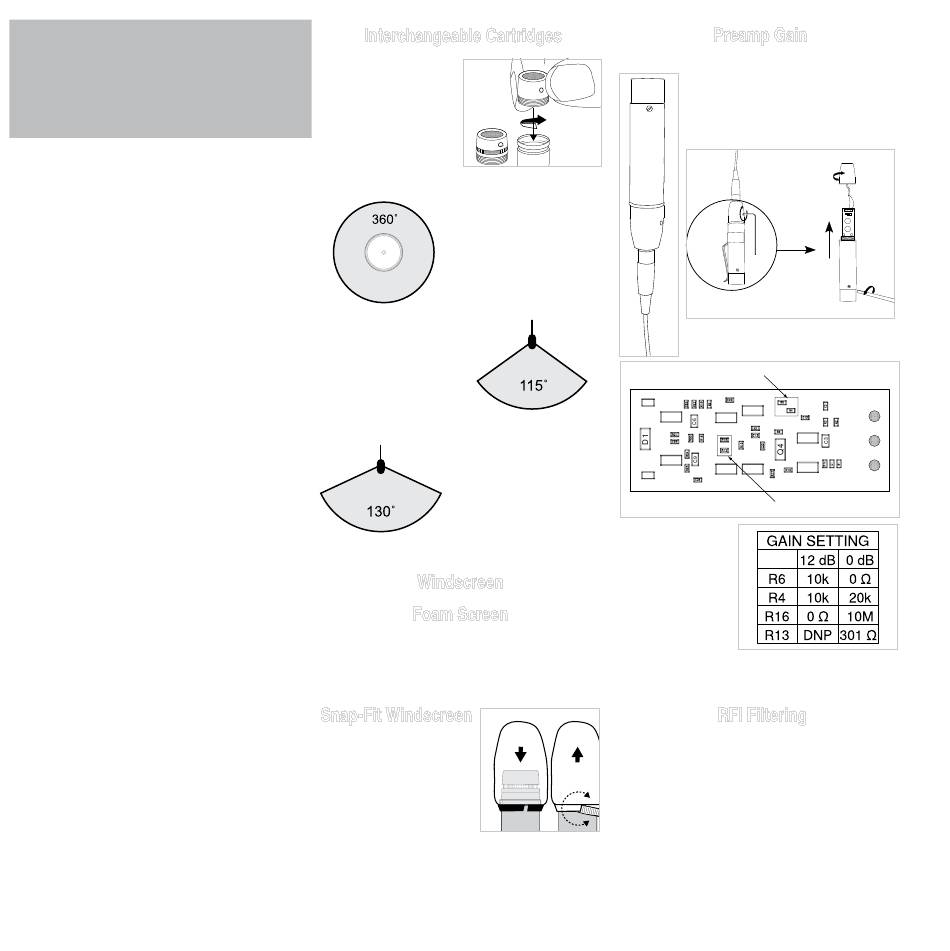

Interchangeable Cartridges
Microflex microphones
use interchangeable
cartridges that allow
you to choose the polar
pattern for different
installations.
R183 Omnidirectional:
Recommended for general
sound reinforcement
applications.
R184 Supercardioid:
Recommended for
sound reinforcement
applications requiring
narrow or more distant
coverage.
R185 Cardioid:
Recommended for
recording or remote
monitoring applications.
Windscreen
Foam Screen
Slip the windscreen over the top of microphone
so it covers side slots. The foam windscreen
provides 5 to 10 dB of "pop" protection.
Snap-Fit Windscreen
• Snap into the groove
below the cartridge.
• To remove, spread the
gap with a screwdriver
or thumbnail.
• Provides 30 dB of "pop"
protection.
Preamp Gain
If necessary, the preamplifier gain
can be reduced by 12 dB. Contact
an authorized Shure service center
for information.
R6 and R4
C10
Q2
Q8
Q3
Q9
Q7 Q6
C11 C11
R13 and R16
RFI Filtering
Important: Microphones must be used with the
RK100PK preamp to optimize RF immunity.
Q1
Q5
