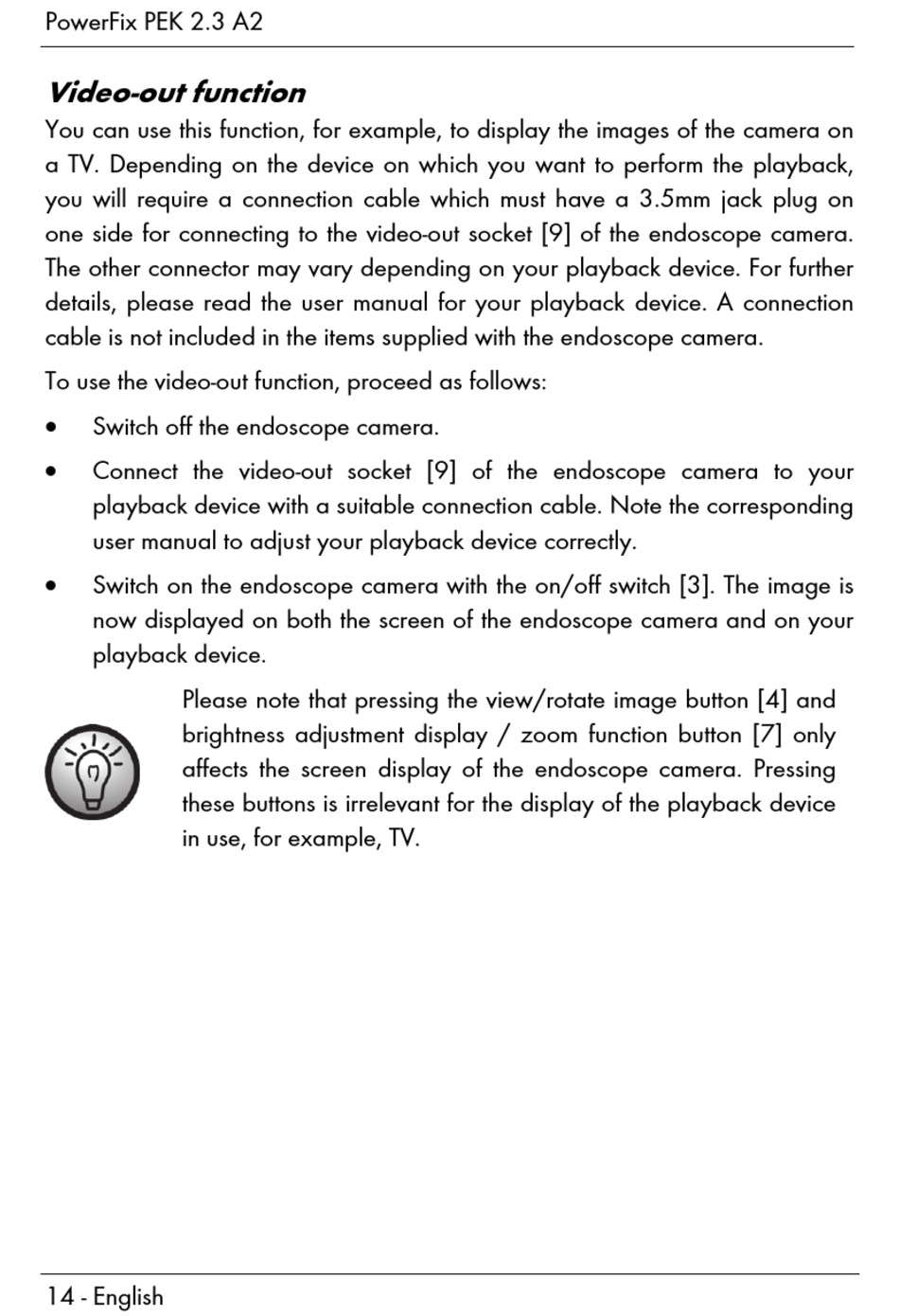

PowerFix PEK 2.3 A2

Video-out function

You can use this function, for example, to display the images of the camera on
a TV. Depending on the device on which you want to perform the playback,
you will require a connection cable which must have a 3.5mm jack plug on
one side for connecting to the video-out socket [9] of the endoscope camera.
The other connector may vary depending on your playback device. For further
details, please read the user manual for your playback device. A connection
cable is not included in the items supplied with the endoscope camera.
To use the video-out function, proceed as follows:

Switch off the endoscope camera.

Connect the video-out socket [9] of the endoscope camera to your
playback device with a suitable connection cable. Note the corresponding
user manual to adjust your playback device correctly.

Switch on the endoscope camera with the on/off switch [3]. The image is
now displayed on both the screen of the endoscope camera and on your
playback device.
Please note that pressing the view/rotate image button [4] and
brightness adjustment display / zoom function button [7] only
affects the screen display of the endoscope camera. Pressing
these buttons is irrelevant for the display of the playback device
in use, for example, TV.
14 - English
