AXIS P1365 Network Camera

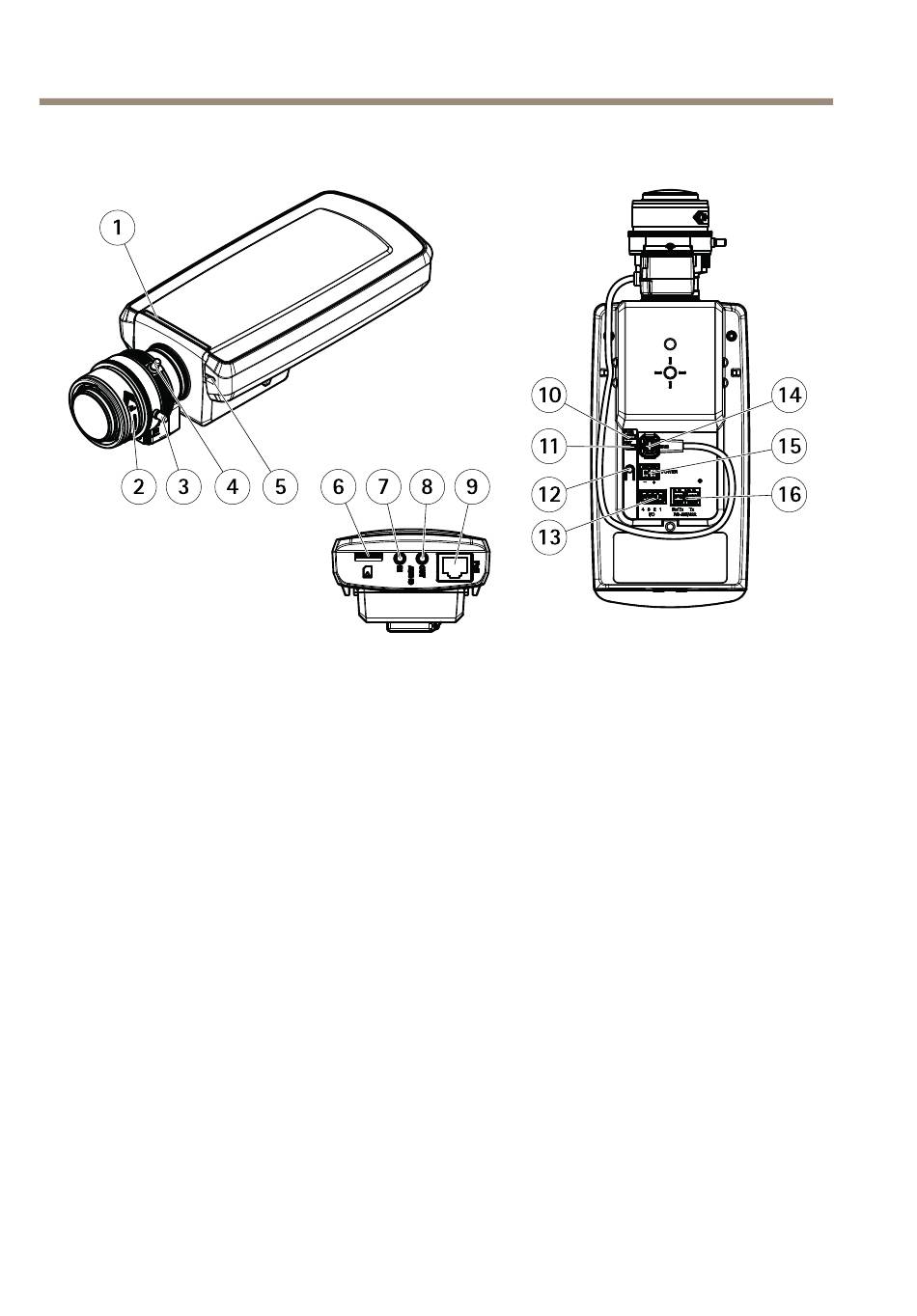

Hardware Overview

1
1
Status LED
2
Focus ring
3
Lock screw for focus ring
4
Zoom puller
5
Built-in microphone
6
microSD card slot
7
Audio in
8 Audio out
9
Network connector (PoE)
10 Power LED
11 Network LED
12 Control button
13 I/O connector
14 Iris connector
15 Power connector
16 RS485/422 connector
6 7 8 9
10
10
11
12
13
14
15
16
