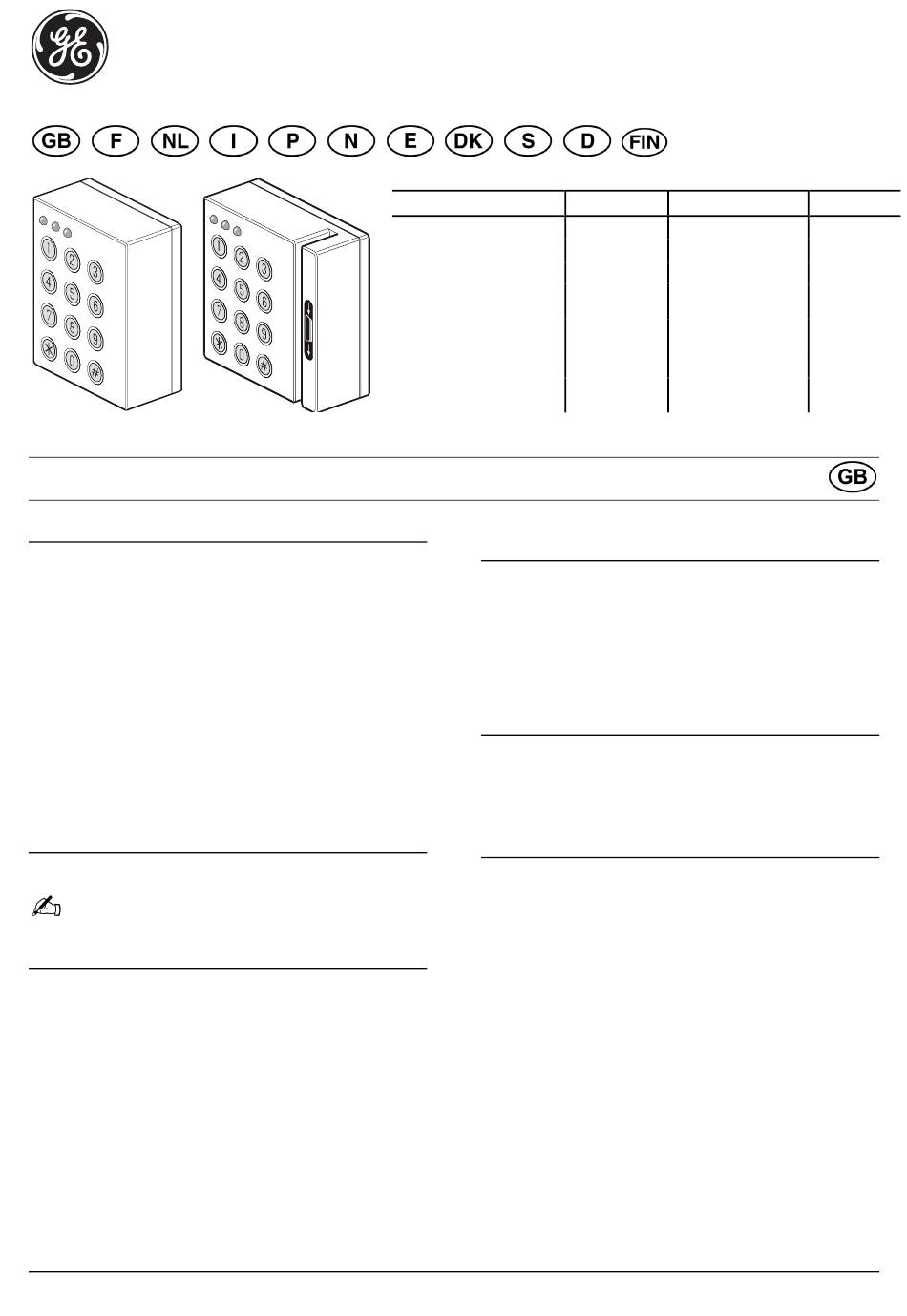

3-LED Keypad / 3-LED Keypad with Card Reader
M
OUNTING THE UNIT
1. Remove the Allen screw from the reader's
mounting plate to open the reader. (Fig. 3)
2. Use the mounting plate as a template to mark
the screw hole locations on the wall. (Fig. 4)
3. Run the cable through the rubber gasket
(gasket is used for outdoors installation) and
then through the hole in the mounting plate.
4. Fasten the mounting plate to the wall.
5. Connect the cable to the terminal block (Fig. 5).
6. Set the RAS address DIP switch (Fig. 6).
7. Check the jumper position for the heater is 'ON' for
outdoors installation, and 'OFF' for indoors (Fig. 5).
8. Place the spring on the back tamper switch. (Fig. 4).
9. Slide the reader onto the mounting plate and close
the unit with the Allen screw (reverse order of Fig. 3,
and then follow Fig. 8).
C
ONNECTING CONTROL PANEL TO KEYPAD
Refer to the ATS control panel installation guide for
instructions. Each reader has a cover tamper.
Note: Figures and instructions also apply
to the ATS1151 unless stated otherwise.
S
AFETY INSTRUCTIONS
•
Always observe the safety regulations applicable
in your country. Read the following safety
instructions before attempting to install the product.
•
Before disassembling the product, disconnect
the power supply unit from the controller.
•
Only connect the mains to the power supply unit
when all installation procedures have been completed.
•
Never cover the power supply unit as it may overheat.
•
When installing, do not force any parts or screws.
Description
Connection
12V Power supply
0V Connection to reader
Data + connection
to reader
Data - connection
to reader
Request to exit button
Open collector
output 50mA max.
E
XTRA NOTES FOR
INSTALLING A KEYPAD OUTDOORS
1. Install a rain protection hood over the reader.
2. Mount the rubber gasket (supplied) between
3. Set the jumper J4 (Fig. 5) to the 'ON' position
4. If a motorised lock or gate is used, mount the
C
ABLE ENTRY AND CONNECTIONS
1. RAS DIP switches
2. Terminal block: +12 V
3. Buzzer
4. Heater jumper
5. Term link
( . 3)
FIG
C
ONNECTIONS TERMINALS
PWR
GND
D+
D -
IN
OUT
© 2005 GE Security B.V.
All rights reserved
3-LED Keypad with Card Reader
ATS1151/1156 ATS2000/3000/4000
Power
GND
D+
D-
IN
OUT
Reader connection to the ATS panels
the unit and the wall to seal the unit.
to enable the heater (top two pins).
reader a few metres away from the door so the
lock or gate has enough space to open fully.
(
FIG
Power supply. If the distance between the
arming station and the control panel does not
exceed 100m, then the arming station can be
powered using the Comms + and – from the
control panel. Otherwise use AUX PWR
from DGP's or an auxiliary power supply.
Data positive and data negative connection
of the databus.
Remote units can be up to 1.5 km from
the ATS control panel.
A request to exit button (normally open,
momentary push-button switch) can be
connected across "IN" and "-". When pressed,
this button controls the request to exit function.
Open collector output, 50 mA maximum. It is
the first output of the output control group that
is assigned to this arming station.
ATS1151
3-LED Keypad
ATS1156
ATS1250
Comms Comms
12V 12V
0V 0V
D+ D+
D- D-
- -
- -
( . 2)
FIG
( . 5)
FIG
. 5)
