Chapter 2

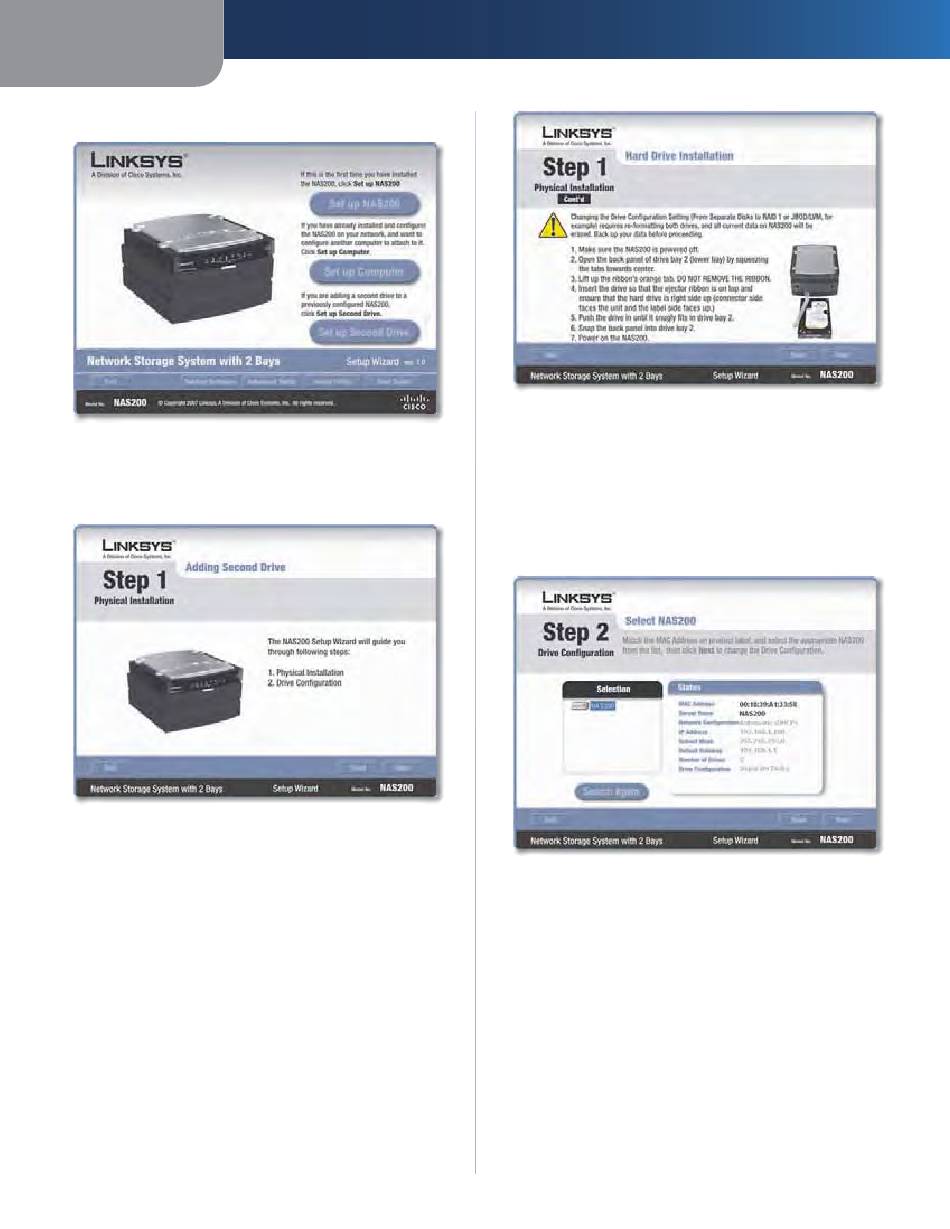

1. Click Set up Second Drive.
Set up Second Drive
2. The Setup Wizard explains that these instructions
cover the physical installation and drive configuration.
Click Next.
Overview
3. To install the second hard drive:
a. Power off the Network Storage System.
b. Push together the clips, and remove the lower
drive bay door.
c. Lift up the ribbon.
d. Make sure the connector side of the drive faces the
bay, and the label side faces up.
e. Make sure the drive is inserted under the ribbon.
Push the drive in until it snugly fits in the bay.
f. Replace the drive bay door.
g. Wait until you hear the Network Storage System
beep twice. Then click Next.
Network Storage System with 2 Bays
Configuration Using the Setup Wizard
Physical Installation of the Second Hard Drive
4. The Setup Wizard automatically searches for any
Network Storage System on your network. If it is not
detected, check its cable connections, and make sure
it is powered on. Click Search Again to locate the
Network Storage System.
Select the appropriate Network Storage System. Click
Next.
Network Storage System Detected
5
