Hardware Installation
2.3

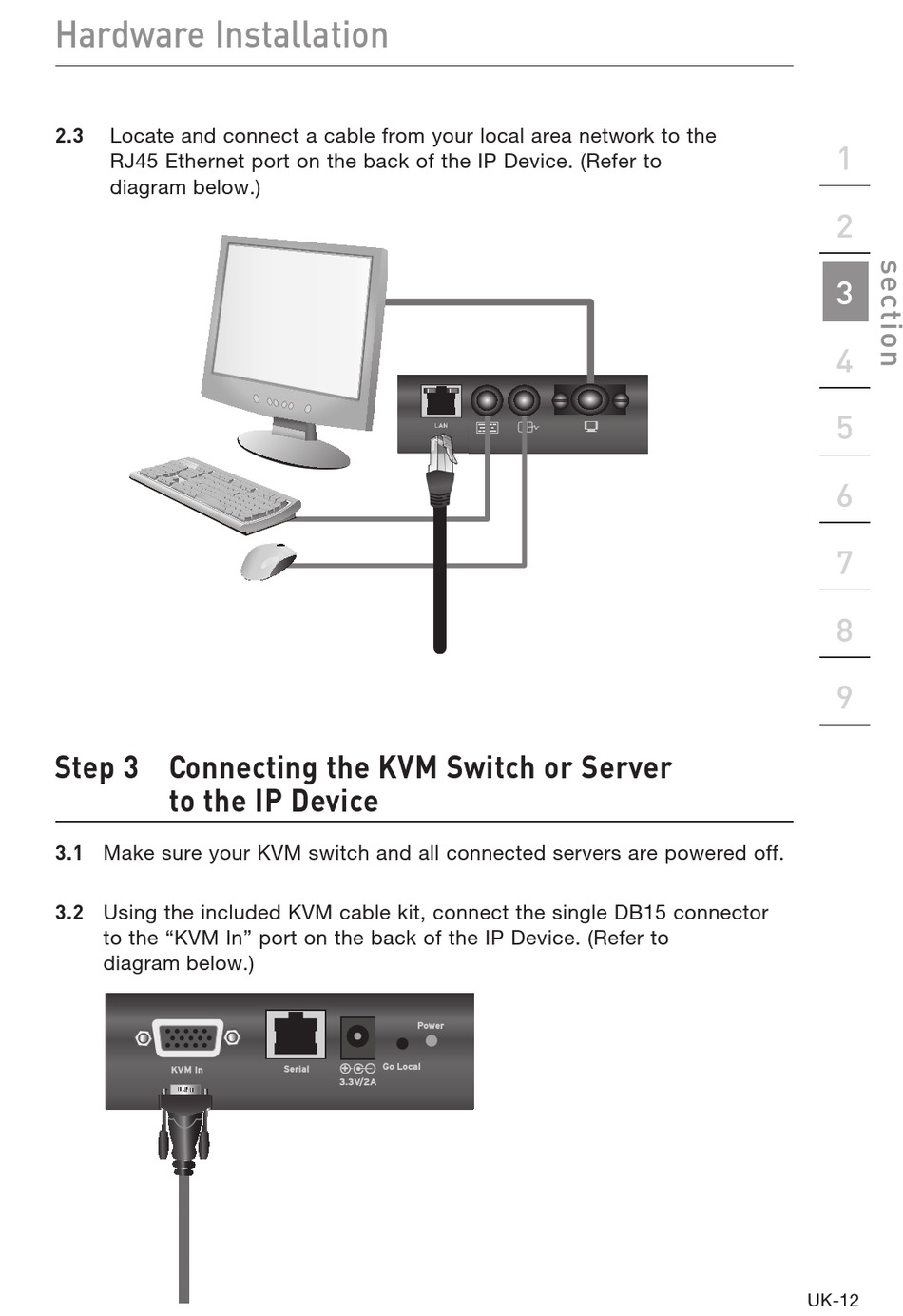

Locate and connect a cable from your local area network to the
RJ45 Ethernet port on the back of the IP Device. (Refer to
diagram below.)
Step 3 Connecting the KVM Switch or Server
to the IP Device
3.1 Make sure your KVM switch and all connected servers are powered off.
3.2 Using the included KVM cable kit, connect the single DB15 connector
to the "KVM In" port on the back of the IP Device. (Refer to
diagram below.)
������
���
�����
� ��������
������
�������
