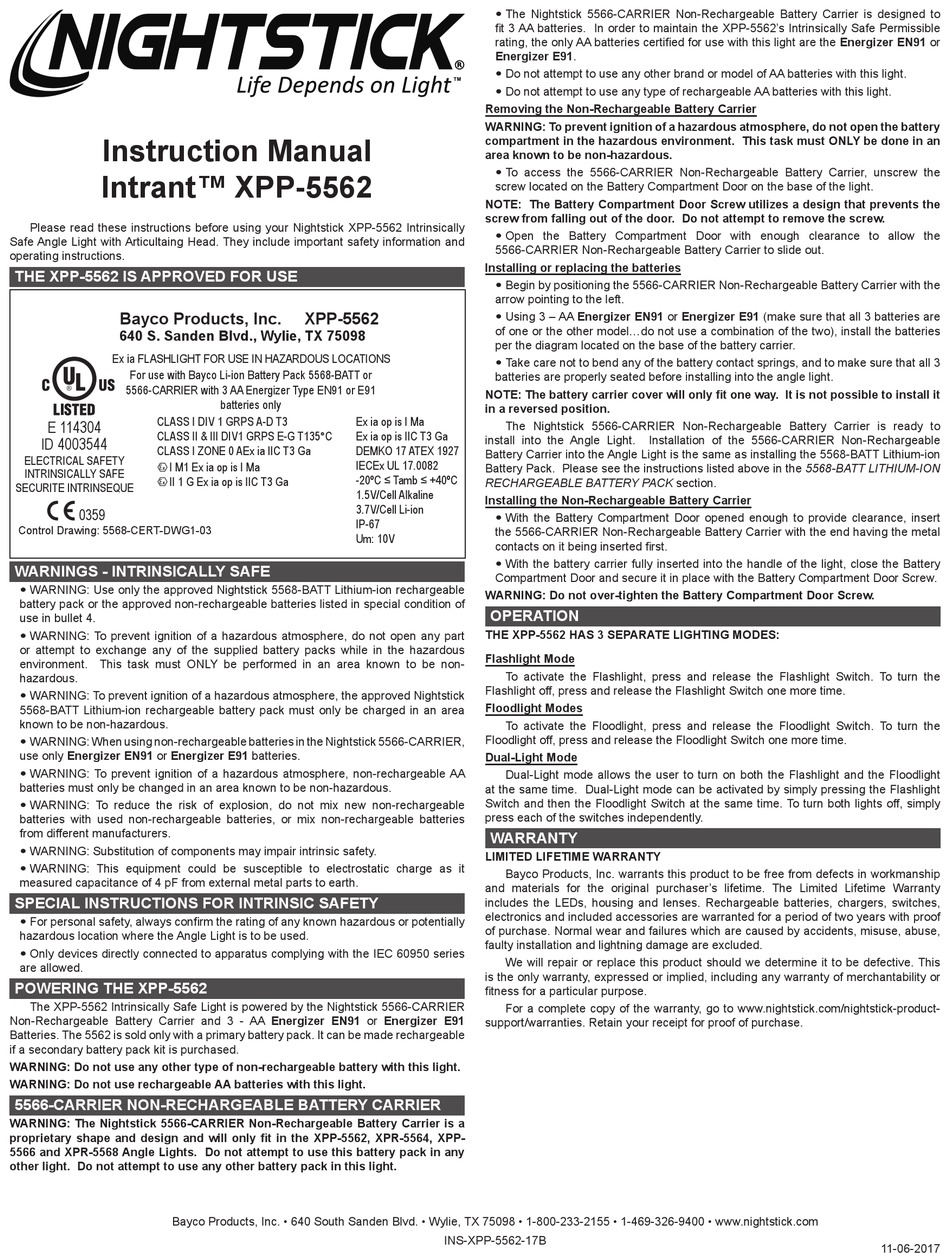

NightStick Intrant XPP-5562 Gebrauchsanleitung

Instruction Manual
Intrant™ XPP-5562
Please read these instructions before using your Nightstick XPP-5562 Intrinsically
Safe Angle Light with Articultaing Head. They include important safety information and
operating instructions.
THE XPP-5562 IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
For use with Bayco Li-ion Battery Pack 5568-BATT or
5566-CARRIER with 3 AA Energizer Type EN91 or E91
CLASS I DIV 1 GRPS A-D T3
E 114304
CLASS II & III DIV1 GRPS E-G T135°C
ID 4003544
CLASS I ZONE 0 AEx ia IIC T3 Ga
ELECTRICAL SAFETY
I M1 Ex ia op is I Ma
INTRINSICALLY SAFE
II 1 G Ex ia op is IIC T3 Ga
SECURITE INTRINSEQUE
0359
Control Drawing: 5568-CERT-DWG1-03
WARNINGS - INTRINSICALLY SAFE
y WARNING: Use only the approved Nightstick 5568-BATT Lithium-ion rechargeable
battery pack or the approved non-rechargeable batteries listed in special condition of
use in bullet 4.
y WARNING: To prevent ignition of a hazardous atmosphere, do not open any part
or attempt to exchange any of the supplied battery packs while in the hazardous
environment. This task must ONLY be performed in an area known to be non-
hazardous.
y WARNING: To prevent ignition of a hazardous atmosphere, the approved Nightstick
5568-BATT Lithium-ion rechargeable battery pack must only be charged in an area
known to be non-hazardous.
y WARNING: When using non-rechargeable batteries in the Nightstick 5566-CARRIER,
use only Energizer EN91 or Energizer E91 batteries.
y WARNING: To prevent ignition of a hazardous atmosphere, non-rechargeable AA
batteries must only be changed in an area known to be non-hazardous.
y WARNING: To reduce the risk of explosion, do not mix new non-rechargeable
batteries with used non-rechargeable batteries, or mix non-rechargeable batteries
from different manufacturers.
y WARNING: Substitution of components may impair intrinsic safety.
y WARNING: This equipment could be susceptible to electrostatic charge as it
measured capacitance of 4 pF from external metal parts to earth.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or potentially
hazardous location where the Angle Light is to be used.
y Only devices directly connected to apparatus complying with the IEC 60950 series
are allowed.
POWERING THE XPP-5562
The XPP-5562 Intrinsically Safe Light is powered by the Nightstick 5566-CARRIER
Non-Rechargeable Battery Carrier and 3 - AA Energizer EN91 or Energizer E91
Batteries. The 5562 is sold only with a primary battery pack. It can be made rechargeable
if a secondary battery pack kit is purchased.
WARNING: Do not use any other type of non-rechargeable battery with this light.
WARNING: Do not use rechargeable AA batteries with this light.
5566-CARRIER NON-RECHARGEABLE BATTERY CARRIER
WARNING: The Nightstick 5566-CARRIER Non-Rechargeable Battery Carrier is a
proprietary shape and design and will only fit in the XPP-5562, XPR-5564, XPP-
5566 and XPR-5568 Angle Lights. Do not attempt to use this battery pack in any
other light. Do not attempt to use any other battery pack in this light.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5562
batteries only
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
DEMKO 17 ATEX 1927
IECEx UL 17.0082
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell Alkaline
3.7V/Cell Li-ion
IP-67
Um: 10V
y The Nightstick 5566-CARRIER Non-Rechargeable Battery Carrier is designed to
fit 3 AA batteries. In order to maintain the XPP-5562's Intrinsically Safe Permissible
rating, the only AA batteries certified for use with this light are the Energizer EN91 or
Energizer E91.
y Do not attempt to use any other brand or model of AA batteries with this light.
y Do not attempt to use any type of rechargeable AA batteries with this light.
Removing the Non-Rechargeable Battery Carrier
WARNING: To prevent ignition of a hazardous atmosphere, do not open the battery
compartment in the hazardous environment. This task must ONLY be done in an
area known to be non-hazardous.
y To access the 5566-CARRIER Non-Rechargeable Battery Carrier, unscrew the
screw located on the Battery Compartment Door on the base of the light.
NOTE: The Battery Compartment Door Screw utilizes a design that prevents the
screw from falling out of the door. Do not attempt to remove the screw.
y Open the Battery Compartment Door with enough clearance to allow the
5566-CARRIER Non-Rechargeable Battery Carrier to slide out.
Installing or replacing the batteries
y Begin by positioning the 5566-CARRIER Non-Rechargeable Battery Carrier with the
arrow pointing to the left.
y Using 3 – AA Energizer EN91 or Energizer E91 (make sure that all 3 batteries are
of one or the other model...do not use a combination of the two), install the batteries
per the diagram located on the base of the battery carrier.
y Take care not to bend any of the battery contact springs, and to make sure that all 3
batteries are properly seated before installing into the angle light.
NOTE: The battery carrier cover will only fit one way. It is not possible to install it
in a reversed position.
The Nightstick 5566-CARRIER Non-Rechargeable Battery Carrier is ready to
install into the Angle Light.
Battery Carrier into the Angle Light is the same as installing the 5568-BATT Lithium-ion
Battery Pack. Please see the instructions listed above in the 5568-BATT LITHIUM-ION
RECHARGEABLE BATTERY PACK section.
Installing the Non-Rechargeable Battery Carrier
y With the Battery Compartment Door opened enough to provide clearance, insert
the 5566-CARRIER Non-Rechargeable Battery Carrier with the end having the metal
contacts on it being inserted first.
y With the battery carrier fully inserted into the handle of the light, close the Battery
Compartment Door and secure it in place with the Battery Compartment Door Screw.
WARNING: Do not over-tighten the Battery Compartment Door Screw.
OPERATION
THE XPP-5562 HAS 3 SEPARATE LIGHTING MODES:
Flashlight Mode
To activate the Flashlight, press and release the Flashlight Switch. To turn the
Flashlight off, press and release the Flashlight Switch one more time.
Floodlight Modes
To activate the Floodlight, press and release the Floodlight Switch. To turn the
Floodlight off, press and release the Floodlight Switch one more time.
Dual-Light Mode
Dual-Light mode allows the user to turn on both the Flashlight and the Floodlight
at the same time. Dual-Light mode can be activated by simply pressing the Flashlight
Switch and then the Floodlight Switch at the same time. To turn both lights off, simply
press each of the switches independently.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship
and materials for the original purchaser's lifetime. The Limited Lifetime Warranty
includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches,
electronics and included accessories are warranted for a period of two years with proof
of purchase. Normal wear and failures which are caused by accidents, misuse, abuse,
faulty installation and lightning damage are excluded.
We will repair or replace this product should we determine it to be defective. This
is the only warranty, expressed or implied, including any warranty of merchantability or
fitness for a particular purpose.
For a complete copy of the warranty, go to www.nightstick.com/nightstick-product-
support/warranties. Retain your receipt for proof of purchase.
INS-XPP-5562-17B
Installation of the 5566-CARRIER Non-Rechargeable
11-06-2017
