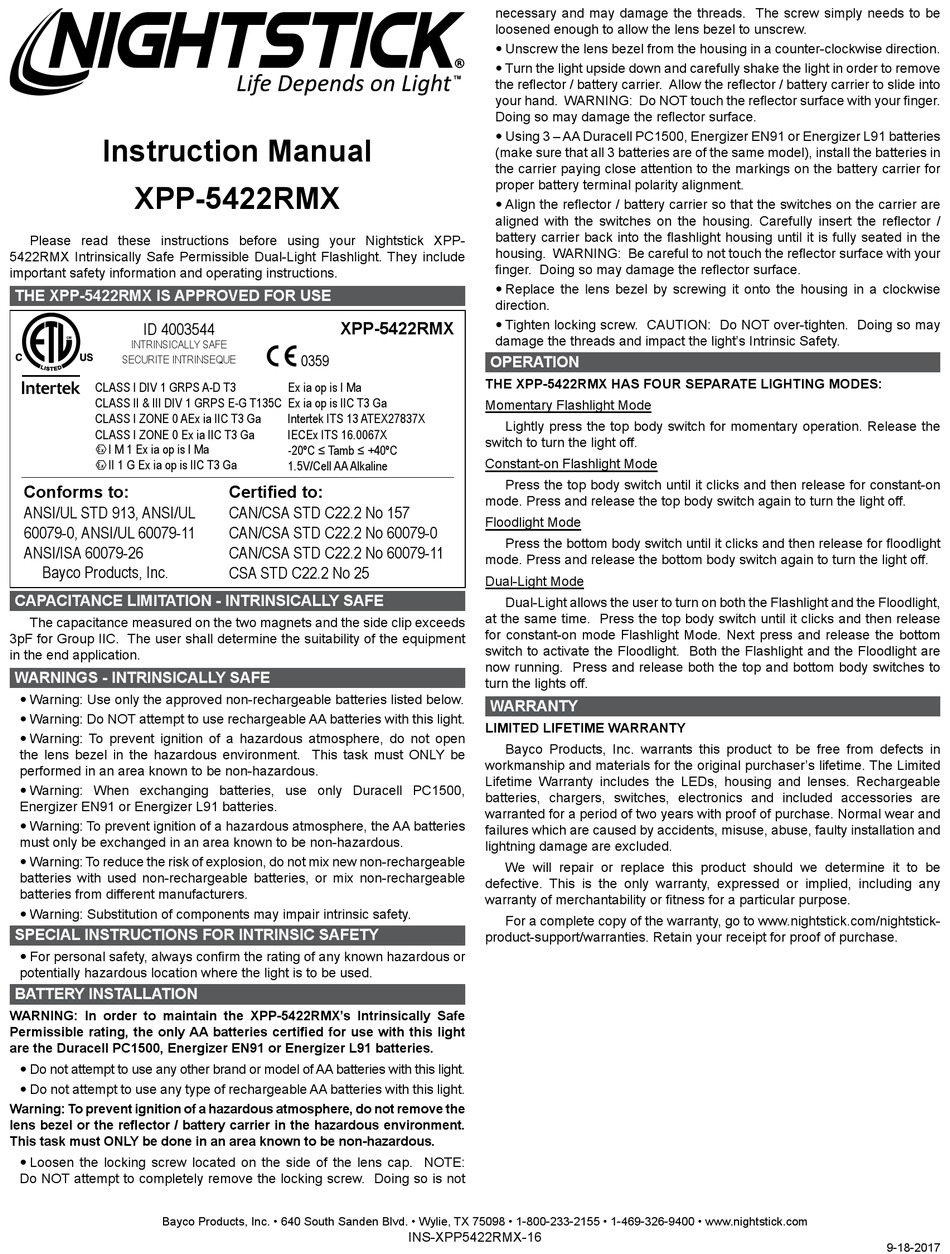

Instruction Manual
XPP-5422RMX
Please read these instructions before using your Nightstick XPP-
5422RMX Intrinsically Safe Permissible Dual-Light Flashlight. They include
important safety information and operating instructions.
THE XPP-5422RMX IS APPROVED FOR USE
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T3
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
CLASS I ZONE 0 Ex ia IIC T3 Ga
I M 1 Ex ia op is I Ma
II 1 G Ex ia op is IIC T3 Ga
Conforms to:
ANSI/UL STD 913, ANSI/UL
60079-0, ANSI/UL 60079-11
ANSI/ISA 60079-26
Bayco Products, Inc.
CAPACITANCE LIMITATION - INTRINSICALLY SAFE
The capacitance measured on the two magnets and the side clip exceeds
3pF for Group IIC. The user shall determine the suitability of the equipment
in the end application.
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open
the lens bezel in the hazardous environment. This task must ONLY be
performed in an area known to be non-hazardous.
y Warning: When exchanging batteries, use only Duracell PC1500,
Energizer EN91 or Energizer L91 batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries
must only be exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable
batteries with used non-rechargeable batteries, or mix non-rechargeable
batteries from different manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5422RMX's Intrinsically Safe
Permissible rating, the only AA batteries certified for use with this light
are the Duracell PC1500, Energizer EN91 or Energizer L91 batteries.
y Do not attempt to use any other brand or model of AA batteries with this light.
y Do not attempt to use any type of rechargeable AA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not remove the
lens bezel or the reflector / battery carrier in the hazardous environment.
This task must ONLY be done in an area known to be non-hazardous.
y Loosen the locking screw located on the side of the lens cap. NOTE:
Do NOT attempt to completely remove the locking screw. Doing so is not
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5422RMX
0359
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
Intertek ITS 13 ATEX27837X
IECEx ITS 16.0067X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AA Alkaline
Certified to:
CAN/CSA STD C22.2 No 157
CAN/CSA STD C22.2 No 60079-0
CAN/CSA STD C22.2 No 60079-11
CSA STD C22.2 No 25
INS-XPP5422RMX-16
necessary and may damage the threads. The screw simply needs to be
loosened enough to allow the lens bezel to unscrew.
y Unscrew the lens bezel from the housing in a counter-clockwise direction.
y Turn the light upside down and carefully shake the light in order to remove
the reflector / battery carrier. Allow the reflector / battery carrier to slide into
your hand. WARNING: Do NOT touch the reflector surface with your finger.
Doing so may damage the reflector surface.
y Using 3 – AA Duracell PC1500, Energizer EN91 or Energizer L91 batteries
(make sure that all 3 batteries are of the same model), install the batteries in
the carrier paying close attention to the markings on the battery carrier for
proper battery terminal polarity alignment.
y Align the reflector / battery carrier so that the switches on the carrier are
aligned with the switches on the housing. Carefully insert the reflector /
battery carrier back into the flashlight housing until it is fully seated in the
housing. WARNING: Be careful to not touch the reflector surface with your
finger. Doing so may damage the reflector surface.
y Replace the lens bezel by screwing it onto the housing in a clockwise
direction.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may
damage the threads and impact the light's Intrinsic Safety.
OPERATION
THE XPP-5422RMX HAS FOUR SEPARATE LIGHTING MODES:
Momentary Flashlight Mode
Lightly press the top body switch for momentary operation. Release the
switch to turn the light off.
Constant-on Flashlight Mode
Press the top body switch until it clicks and then release for constant-on
mode. Press and release the top body switch again to turn the light off.
Floodlight Mode
Press the bottom body switch until it clicks and then release for floodlight
mode. Press and release the bottom body switch again to turn the light off.
Dual-Light Mode
Dual-Light allows the user to turn on both the Flashlight and the Floodlight,
at the same time. Press the top body switch until it clicks and then release
for constant-on mode Flashlight Mode. Next press and release the bottom
switch to activate the Floodlight. Both the Flashlight and the Floodlight are
now running. Press and release both the top and bottom body switches to
turn the lights off.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in
workmanship and materials for the original purchaser's lifetime. The Limited
Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable
batteries, chargers, switches, electronics and included accessories are
warranted for a period of two years with proof of purchase. Normal wear and
failures which are caused by accidents, misuse, abuse, faulty installation and
lightning damage are excluded.
We will repair or replace this product should we determine it to be
defective. This is the only warranty, expressed or implied, including any
warranty of merchantability or fitness for a particular purpose.
For a complete copy of the warranty, go to www.nightstick.com/nightstick-
product-support/warranties. Retain your receipt for proof of purchase.
9-18-2017
