NightStick XPP-5418GX Gebrauchsanleitung

Instruction Manual
XPP-5418GX/RX

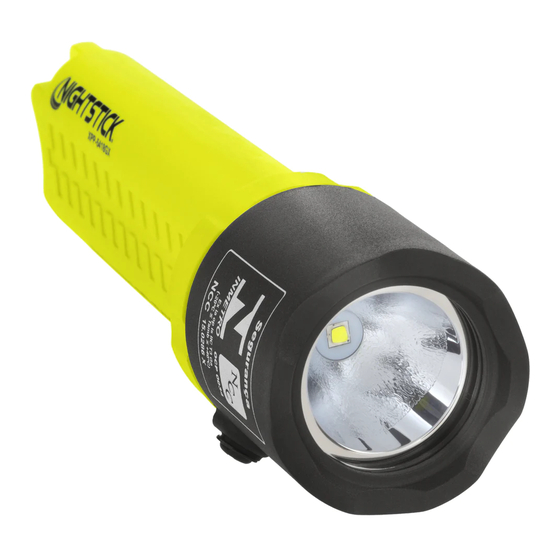

Please read these instructions before using your Nightstick XPP-5418
Intrinsically Safe Flashlight. They include important safety information and
operating instructions.
THE XPP-5418GX/RX IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
CLASS I DIV 1 GRPS A-D T3
E 467756
CLASS II & III DIV 1 GRPS E-G T135ºC
INTRINSICALLY SAFE
CLASS I ZONE 0 AEx ia IIC T3 Ga
SECURITE INTRINSEQUE
Ex ia IIC T3 Ga
0359
II 1 G Ex ia op is IIC T3 Ga
WARNINGS:
Replace batteries in a non-hazardous location.
Use only Energizer AA Model E91 or EN91 batteries.
AVERTISSEMENT:
Remplacer les piles dans une zone non dangereuse.
Utiliser uniquement les piles Energizer AA - modèle E91 ou EN91.
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open
the lens bezel in the hazardous environment. This task must ONLY be
performed in an area known to be non-hazardous.
y Warning: When exchanging batteries, use only Energizer EN91 or
Energizer E91 batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries
must only be exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new batteries with
used batteries, or mix batteries from different manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5418's Intrinsically Safe rating,
the only AA batteries certified for use with this light are the Energizer
EN91 or Energizer E91 batteries.
y Do not attempt to use any other brand or model of AA batteries.
y Do not attempt to use any type of rechargeable AA batteries.
Warning: To prevent ignition of a hazardous atmosphere, do not
remove the lens bezel or the reflector / battery carrier in the hazardous
environment. This task must ONLY be done in an area known to be
non-hazardous.
y Loosen the locking screw located on the side of the lens cap. NOTE:
Do NOT attempt to completely remove the locking screw. Doing so is not
necessary and may damage the threads. The screw simply needs to be
loosened enough to allow the lens bezel to unscrew.
y Unscrew the lens bezel from the housing in a counter-clockwise direction.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
THE XPP-5418 HAS TWO SEPARATE LIGHTING MODES:
MOMENTARY FLASHLIGHT MODE
switch to turn the light off.
CONSTANT-ON FLASHLIGHT MODE
mode. Press and release the body switch again to turn the light off.
XPP-5418GX/RX
LIMITED LIFETIME WARRANTY
Ex ia op is IIC T3 Ga
Intertek ITS 13 ATEX27837X
workmanship and materials for the original purchaser's lifetime. The Limited
IECEx ITS 16.0067X
Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable
-20ºC ≤ Tamb ≤ +40ºC
batteries, chargers, switches, electronics and included accessories are
1.5V/Cell with three in series
warranted for a period of two years with proof of purchase. Normal wear and
Energizer E91 or EN91
failures which are caused by accidents, misuse, abuse, faulty installation and
Segurança
lightning damage are excluded.
defective. This is the only warranty, expressed or implied, including any
INMETRO
warranty of merchantability or fitness for a particular purpose.
Ex ia op is IIC T3 Ga
(-20ºC ≤ Tamb ≤ +40ºC)
NCC
15.0286 X
product-support/warranties. Retain your receipt for proof of purchase.
INS-XPP-5418GX/RX-18
y Turn the light upside down and carefully shake the light in order to remove
the batteries. Allow the batteries to slide into your hand.
y Using 3 – AA Energizer EN91 or Energizer E91 batteries (make sure
that all 3 batteries are of the same model), install the batteries in the carrier
paying close attention to the markings inside the housing for proper battery
terminal polarity alignment.
y Replace the lens bezel by screwing it onto the housing in a clockwise
direction.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may
damage the threads and impact the light's Intrinsic Safety.
OPERATION
Lightly press the body switch for momentary operation. Release the
Press the body switch until it clicks and then release for constant-on
WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in
We will repair or replace this product should we determine it to be
For a complete copy of the warranty, go to www.nightstick.com/nightstick-
7-18-2018
