Q U I C K R E F E R E N C E
This Quick Reference contains supply loading and general care
and maintenance procedures for the Monarch® 9906 printer. For
more detailed information, refer to the Operator's Handbook
available on our Web site (www.monarch.com). For information
about creating formats, configuring the printer, or programming
the printer, refer to the Packet Reference Manual on our Web
site.
Review the safety information in the Regulatory Compliance
document included with your printer. Information in this
document supercedes information in previous versions. Check
our Web site for the latest documentation and
release information.
C o n n e c t i n g t h e C a b l e s
The power supply automatically
switches between 115V and 230V.
Plug the power cable into the
1.
socket and the other end into
a grounded electrical outlet.
Connect the communications
2.
cable into the appropriate port.
Turn on the printer. Press ( I )
3.
to turn on and ( O ) to turn off
the printer.

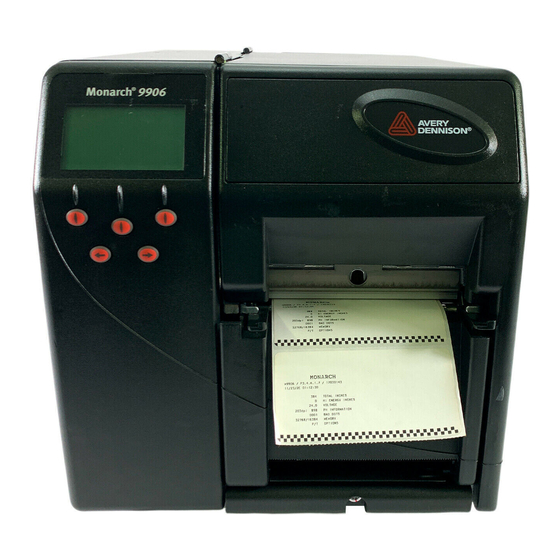

U s i n g t h e C o n t r o l P a n e l
The control panel consists of a four-
line LCD display, three function
buttons, and two navigation buttons.
The function of each button varies
depending on the task.
The LCD display:

Indicates power when text or
other information is shown

Indicates conditions requiring
immediate attention (low battery,faults, errors) using a red
background

Shows menu prompts, printer settings, function button
assignments, values, etc.
Monarch is a trademark of Avery Dennison
Retail Information Services LLC.
Avery Dennison is a trademark of Avery Dennison Corp.
TC9906EUQR Rev. AD 9/12
Parallel Port
(optional)
Serial Port
Host USB
Device USB
Power Cable
Connection
Function
Buttons
Navigation
Buttons
2010 Avery Dennison Corp. All rights reserved.
MPCL
Online
FEED TLabel MENU
