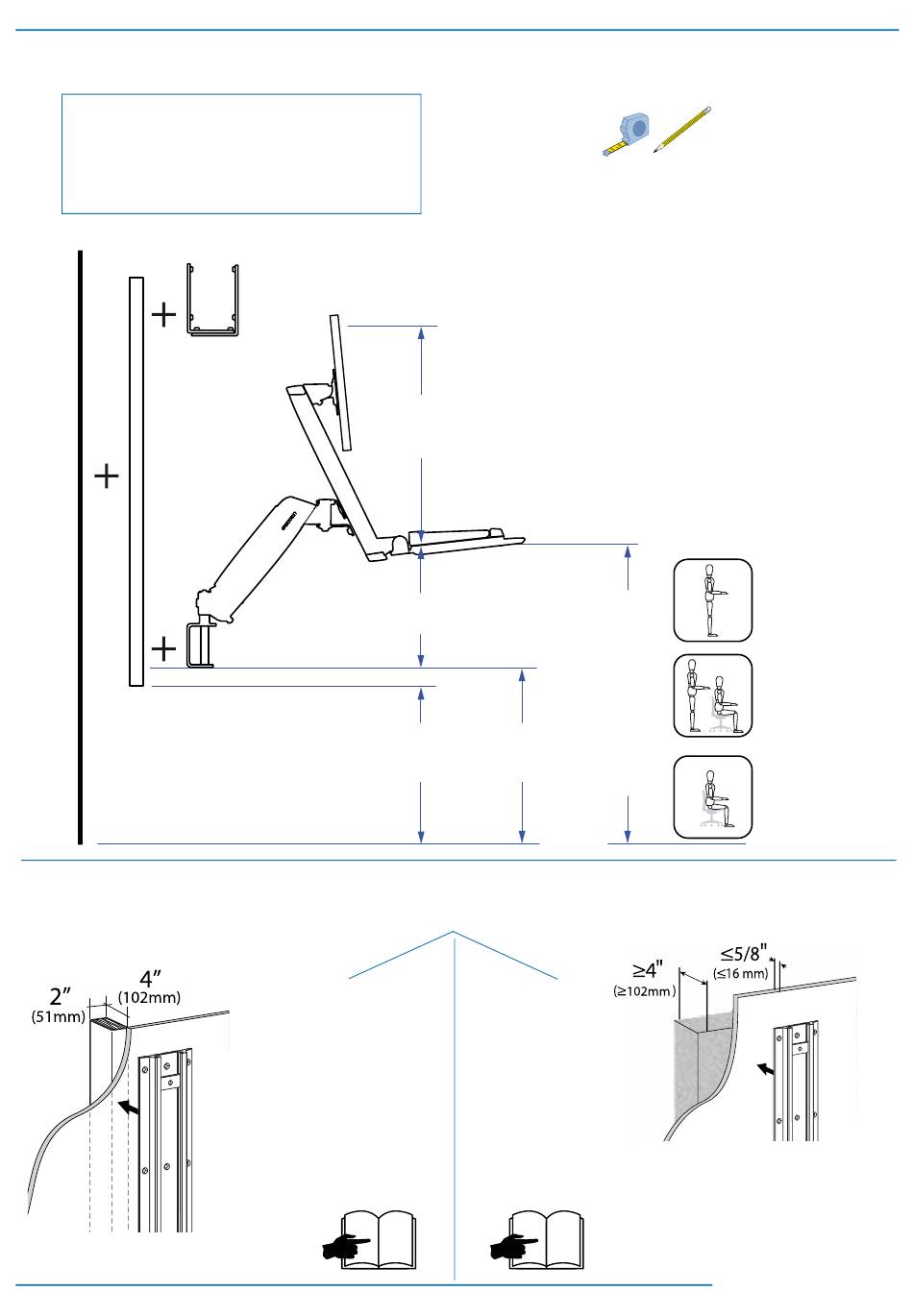

Calculate Mounting Height and Mark Measurments C and B on Wall
A - 12"
(205mm)
C ≥ B - 1"
D = A + 20-22"
WALL
6 of 22
= B
(25.4mm)
(508-559mm)
20" - 22"
(508-559mm)
recommended
Wood
Madera
Bois
Holzbalkenträger
Massief Houten Pilaren
Due montanti in legno massiccio
木
木质
나무
7
A
B
C
D
D
12"
(205mm)
C B
FLOOR
2
Concrete
Concreto
Béton
Massivbeton
Beton
Cemento
コンクリート
水泥质
콘크리트
8
Distance between floor and
keyboard (equal to elbow
height)
Distance between floor and
bottom edge of wall mount
bracket
Distance between floor and
bottom edge of wall track
Distance between keyboard
and top of screen (equals
difference between eye
height and elbow height)
A
47"
(1194mm)
40"
(1016mm)
32"
(813mm)
