Miscellaneous Settings
MENU
SETTING
PERSON
The default password is: UP - DOWN - UP - DOWN - ENTER
KEY: In the menu KEY the password protection of the fixture is activated or deactivated. If set ON the
fixture is password protected when started. 30 seconds after the last setting the menu is locked
again. To be able to make changes in the menu the password UP - DOWN - UP - DOWN - ENTER
needs to be typed in.
DIMMER: controls different dim curves to simulate a halogen bulb (DIM4/DIM3/DIM2/DIM1/OFF).
PERFORM: gives the user the opportunity to change the performance of the fan between LIVE,
STUDIO and POWER. In STUDIO mode the fan is run on low noise. In case of overheat the intensity
of the led module is regulated down. In LIVE mode, fan speed and the intensity of the led module is
balanced with each other to reach the best output with as low fan speed as possible. In POWER
mode the temperature of the fixture is primary regulated by the fan, to keep a high intensity as long
as possible.
XY OFFSET: activates (SHOW) or deactivates (HIDE) the possibility to adjust the preset PWM-
frequencies in the menu.
PWM: gives the user the possibility to adjust the PWM frequency of the LEDs (1200HZ/2400HZ/
4000HZ/6000HZ/25000HZ).
FULL POWER CCT: sets the colour temperature at maximum output. 3200K/4200K/5600K/10000K
and NORMAL can be set.
DMX ERROR: sets how the fixture responses if DMX-signal gets lost. Set SAVE to hold the last
received value or BLACK for blackout.
RESET: sets all editable settings back to factory default.

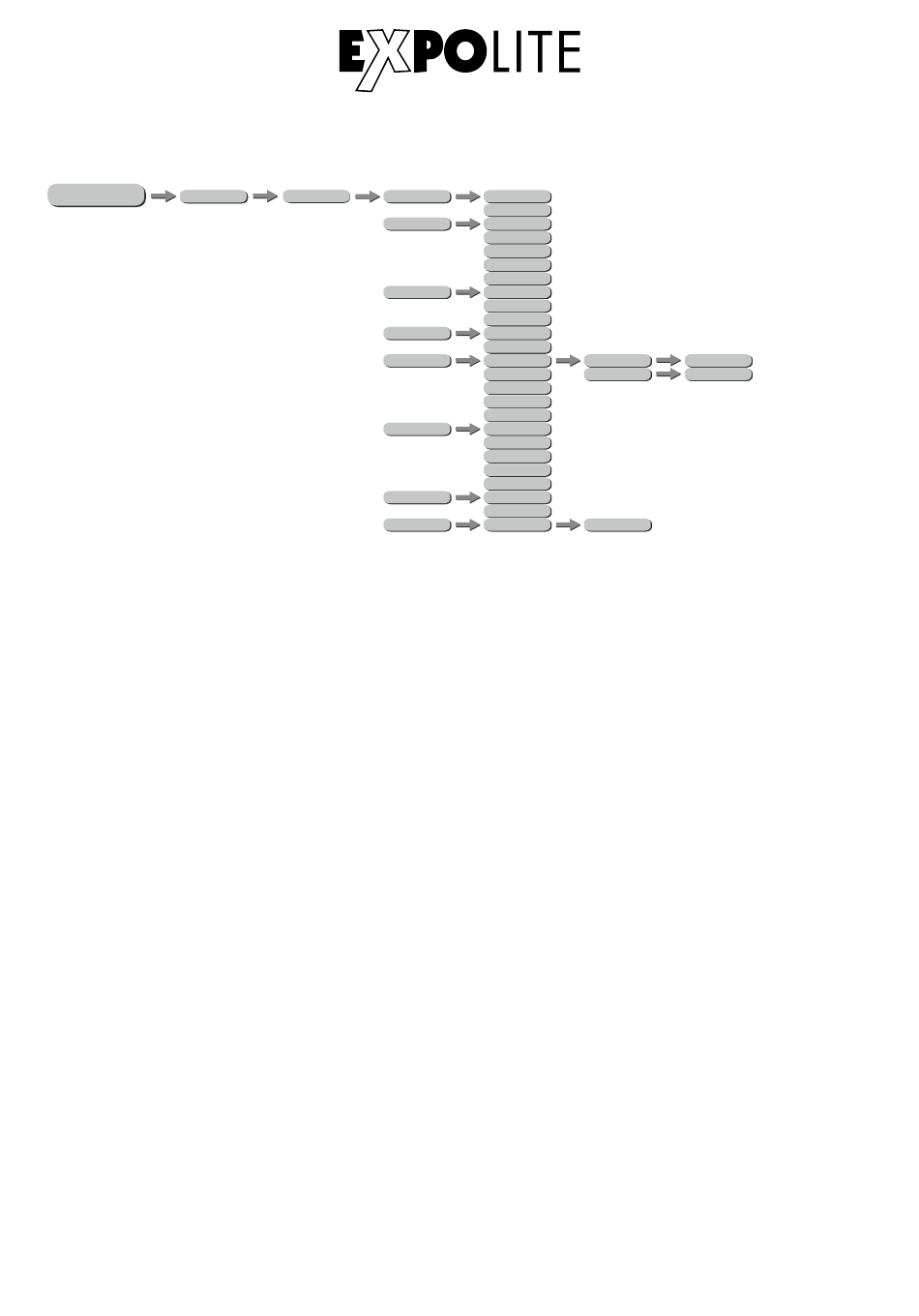

KEY
****
DIMMER
PERFORM
XY OFFSET
PWM
FULL POWER CCT
DMX ERROR
RESET
