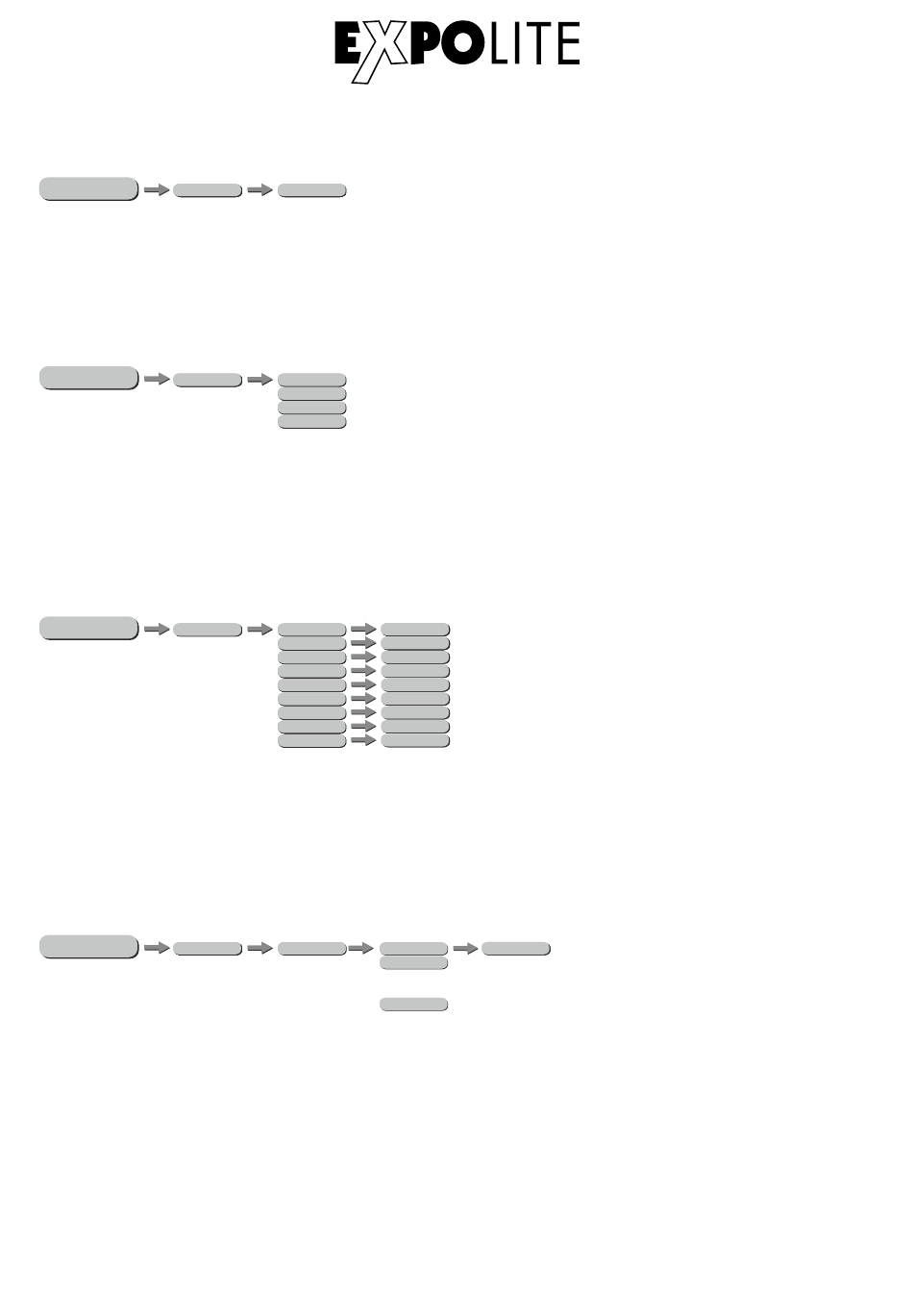

Setting DMX-Address
MENU
PERSON ADDRESS
The DMX start address of the fixture is set in the menu ADDRESS. This is retained even when
changing the personality.
Setting DMX-Personality
MENU
PERSONALITY
PERSON
The personality is set in the menu PERSONALITY. There are four different modes which can be
chosen: HSIC (8 channels), SIMPLE (10 channels), COLOR MODE 8BIT (13 channels) and COLOR
MODE 16BIT (19 channels).
Setting Static Scene
MENU
STATIC
PERSON
A static scene for stand-alone operation is set in the menu STATIC. This is mixed using the DMX
value scale 0-255 for RED, GREEN, BLUE, AMBER and LIME, ZOOM, FOCUS, GOBO, as well as
the strobe value 0-25Hz.
Activating Auto Programs
MENU
PERSON MANUAL
In the menu MANUAL, submenu PLAY the user programmed automatic programs can be activated.
The speed of the automatic programs can be controlled in the submenu SPEED.
The programing of this programs is described in the menu Edit User Programs.
Automatic programs are transmitted as master to connected slave devices. For master-slave
operation, signals are sent via the DMX line. This may disturb other devices on the same line.
001-512 HSIC
HSIC HSIC
HSIC SIMPLE
COLOR MD 8BIT HSIC
COLOR MD 16BIT HSIC
HSIC RED 0 - 255 0 - 255
0 - 255 0 - 255
GREEN
HSIC BLUE 0 - 255
0 - 255
HSIC AMBER
HSIC LIME 0 - 255
HSIC ZOOM 0 - 255
0 - 255
HSIC FOCUS
HSIC GOBO 0 - 255
0 - 25
HSIC STROBE
HSIC PLAY PROGRAM.01
PROGRAM.02
o
o
o
PROGRAM.10
E-26
SPEED 0 - 255
