EN

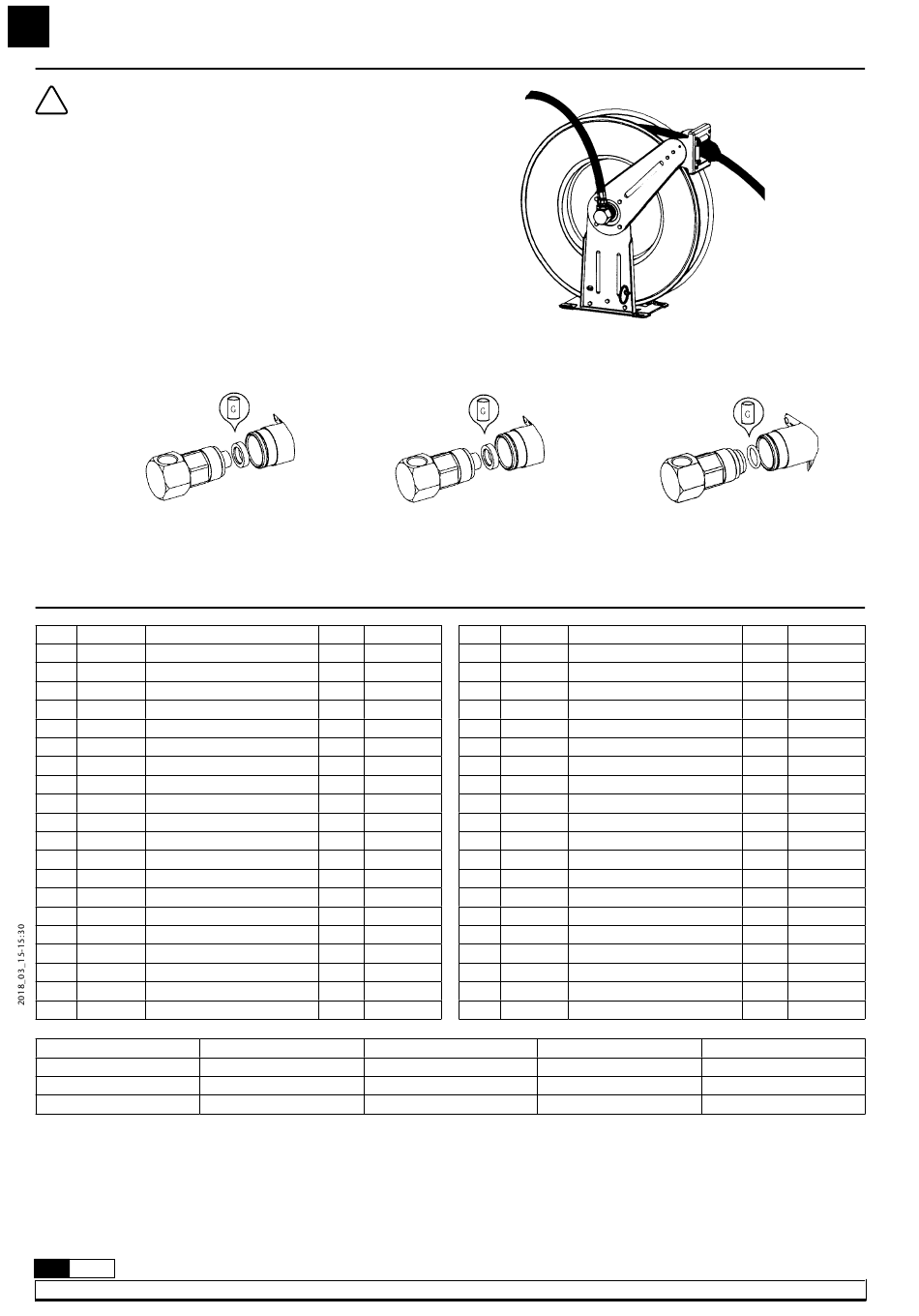

SWIVEL REPLACEMENT
WARNING: Before removing the old swivel, close the nearest
!
shut off valve to the reel and open the fluid control gun to
release the pressure inside the hose.
• With a completely coiled hose (I), remove the fluid inlet hose (II) and
the old swivel (Fig. L).
• Replace with a new swivel. Insert the O-ring (grease swivel) or the
V-seal (rest of applications) prior to assembling the swivel body, as
per drawing(M). Slightly lubricate with grease the O-ring or
the seal before inserting it.
• To fasten the swivel, hold the reel spool while you tighten it.
• Connect the inlet hose.
LUBRICATE BEFORE
MOUNTING
OIL/AIR
Fig. M
PARTS LIST
Pos. Part Nº. Description
1 735211 Washer
2 750201 Shaft
3 750100 Ratchet
4 850421 Outlet Adap.
5 750206 Reel assembly.
6 750207 Spring washer
7 850300 Spring
8 940020 Screw M6x12 DIN 933
9 940910 Screw M5x8 DIN 964
10 750264 Spring disc
11 750101 Spring hub
12 750209 Base
13 850104 Latch
14 942610 Washer A-10 DIN 471
15 750215 Latch side arm
16 850301 Latch spring
17 940024 Screw M6x8 DIN 933
18 942060 Washer 10.5 DIN 433
19 750219 Swivel side arm
20 750214 Spring cover
Model
501 100
501 200
501 300
SPARE PARTS, SEE PAGE 21
4
850 801 R. 03/18
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
HIGH PRESSURE WATER
Qty Repair kit
1
1
1
1
1
1
1
8
6
1
1
1
1
1
1
1
8
1
1
1
Swivel Hose stopper (43)
750 266 (40)
750 266 (40)
750 256 (41)
Pos. Part Nº. Description
21 750221 Hose outlet
22 750222 Hose roller
23 750223 Hose roller shaft, horizontal
24 750224 Hose roller shaft, vertical
25 850601 Hose roller, horizontal
26 850602 Hose roller, vertical
27 940012 Screw M5x10 DIN 933
28 941105 Nut M5 DIN 985
29 942004 Washer 4.3 DIN125
30 750225 Arm
31 850302 Inlet hose ring
32 850600 Axis holder
33 750228 Axis washer
34 942636 Washer A-36 DIN 471
35 942005 Washer 5.3 DIN 125
36 940311 Screw M5x50 DIN 912
37 941106 Nut M6 DIN 985
38 940021 Screw M6x15 DIN 933
39 940912 Screw M5x10 DIN 963
B 750220 Hose outlet assembly
Main hose
522 300 750 358
522 200 750 375
522 300 750 302
Fig. L
GREASE
Qty Repair kit
1 B
1 B
2 B
2 B
2 B
2 B
8 B
8 B
8 B
2
1
1
1
1
1
1
6
6
6
1
Side hose
750 393
750 376
750 306
