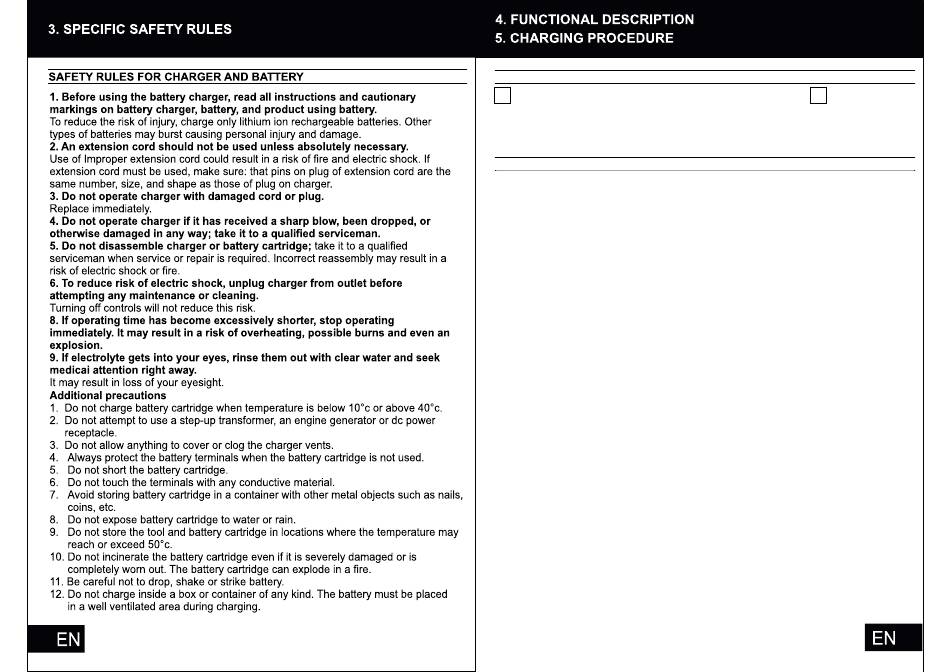

FUNCTIONAL DESCRIPTION

1. Keyless chuck 6. Forward/reverse switch
A
2. Torque adjustment ring 7. Battery pack
3. Two-speed gear control
4. Work light
5. Power trigger
CHARGING PROCEDURE
1. CHARGING THE BATTERY (Fig.B)
• To the Li-Ion battery installed in the machine. Do not use another battery charger.
• The Li-Ion battery is protected against deep discharging. When the battery is
empty, the machine is switched off by means of a protective circuit: the chuck
no longer rotates.
• In a warm environment or after heavy use, the battery pack may become too hot.
Allow time for the battery to cool down before recharging.
• When the battery is charged for the first time and after prolonged storage,
the battery will only accept approximately 60% charge. However, after several
charge and discharge cycles the battery will accept a 100% charge.
Important notes for charging the battery
The battery in your new tool is not charged when it leaves the plant.
Therefore it must be charged for 1 hour before using the first time!
2. IMPORTANT NOTES CHARGING THE BATTERY
- Press buttons of battery pack and slide it out of drill's handle
- Plug the charger into the power outlet
- Insert the battery into the charger
- The red LED (1) will light up. Charging started
- Charging time - about 1 hour
- The green LED (2) is lit. Charging is over.
- Disconnect charger from power socket and from battery pack.
WARNING! When battery charge runs out after continuously use or exposure to
direct sunlight or heat, allow time for the battery to cool down before recharging to
achieve the fully charge. Lithium batteries stored for 3 months requires to charge
and discharge one time, it should be fully charged to save.
3.TO REMOVE OR INSTALL THE BATTERY PACK
Press the button on the end of the battery and remove the battery from the drill
handle. Remove and insert the battery with a little effort.
Check the reliability of fixing the battery in the handle of the drill.
4.BATTERY LEVEL CONTROL (Fig.C)
Press the battery symbol on the side of the battery.
Three LEDs are burning - the level of charge is 100%.
Two LEDs are burning - the level of charge is 60-70%.
One LED is on - charge level is 25-30%.
1. Red light
B
2. Green light
(Fig.C) .
(Fig.C)
