RESOLV 50a Layout

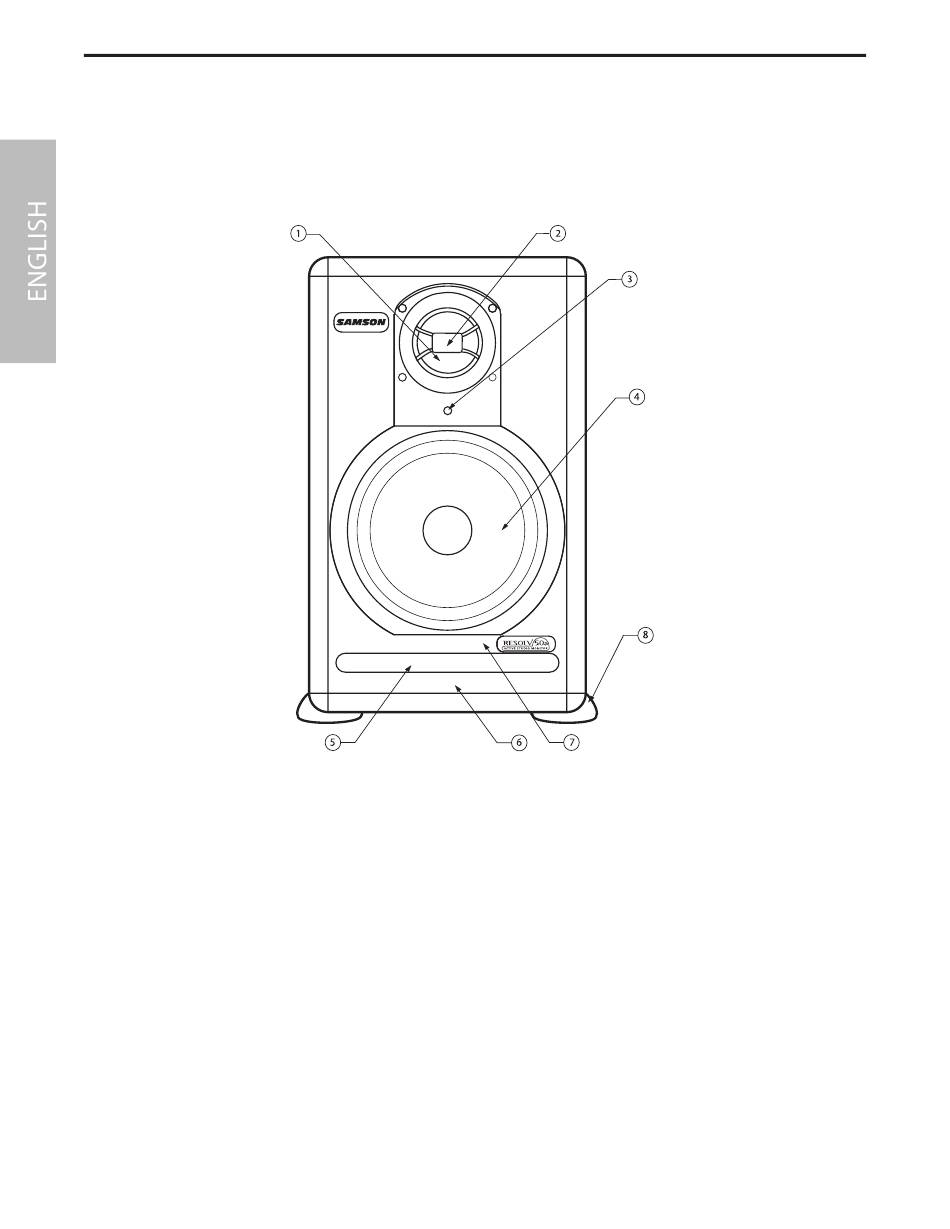

Front View Layout

1 1ʺ TITANIUM DOME TWEETER - Smooth high fre-
quency response produced from titanium dome,
Neodymium magnet with Ferro-fluid plus heatsink
cooling for high output.
2 PHASE PLUG - Insures even dispersion of the high
frequencies and improves off axis listening.
3 POWER LED - Blue LED illuminates indicating the
unit is powered on, ready for operation.
4 5ʺ LOW FREQUENCY DRIVER - Heavy duty, 5ʺ
extended range low frequency
5
6
7
8
.
.
transducer
4
TUNED PORT - Quiet port design offering linear,
extended low frequency response.
ENCLOSURE - Rigid MDF construction.
FINISH - Sleek, black textured finish.
NON-SKID FEET - Large rubber feet (included)
keep enclosure in place even at high sound pres-
sure levels.
