Programming; Mechanical Specifications; Mounting Of Sensor Wires - Danfoss MBT 9110 Handbuch

• Loop Link is a communications interface that is needed for programming MBT 9110.
• For programming please refer to the drawing below and the help functions in
PReset.
• Loop link is not approved for communication with modules installed in harzard ous
(Ex) areas
Order: loop link
1
2
MBT 9110

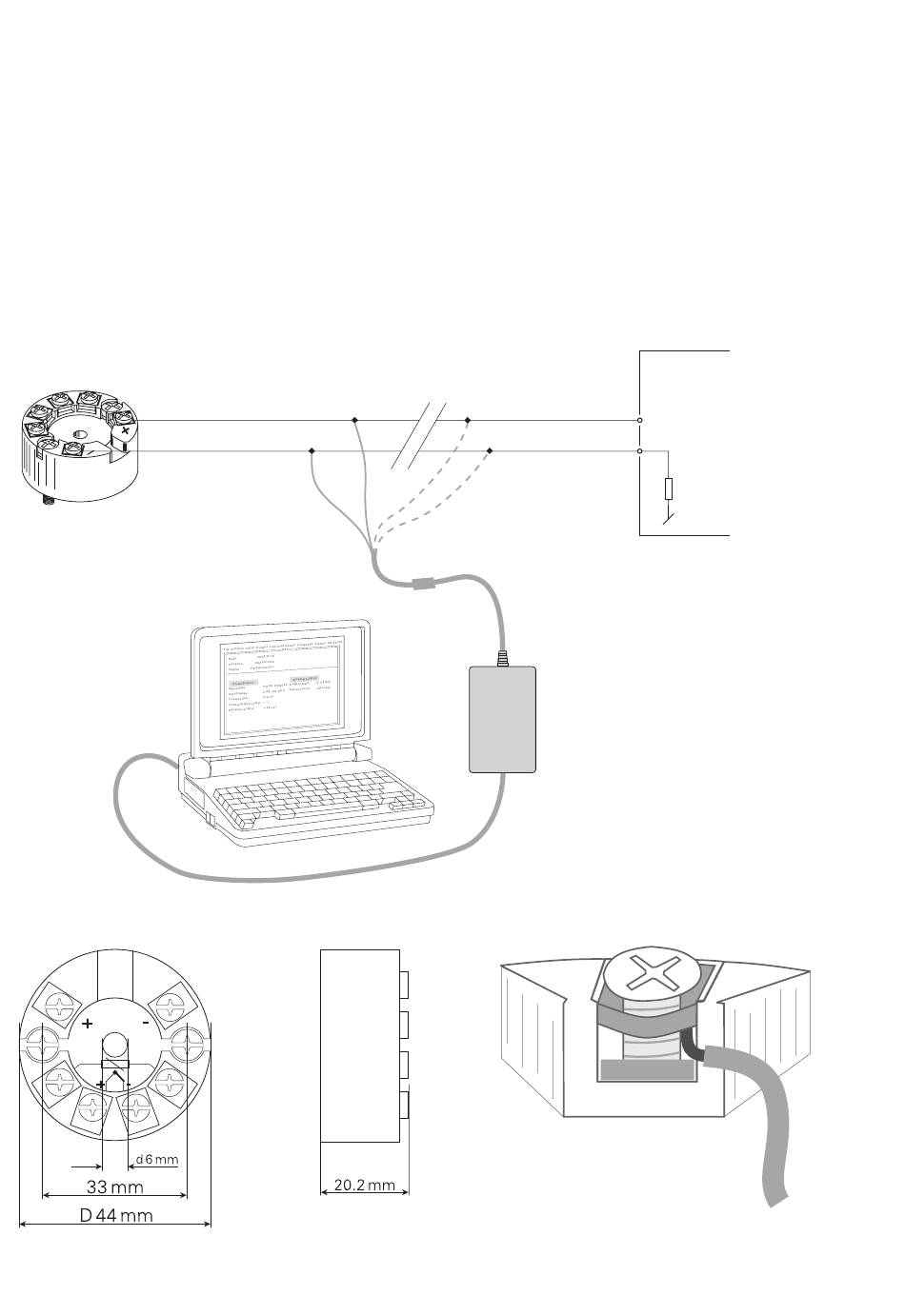

Mechanical specifications:

IC.PS.P40.B2.52/520B2754

Programming:

Disconnect
Yellow
Red
*
Black
*
Connector
L oop
L ink

Mounting of sensor wires

Wires must be mounted between the metal
plates.
Receiving
Equipment
+Vsupply
Input
Green
5909 - USB
5905 - RS232
* Connected only for
on-line programming
