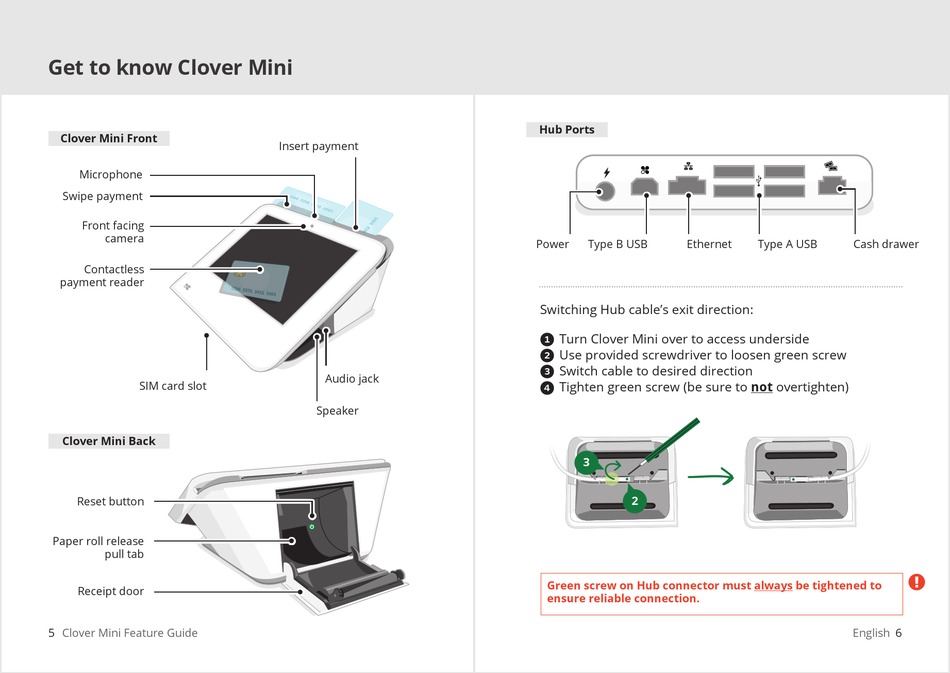

Get to know Clover Mini
Clover Mini Front
Microphone
Swipe payment
Front facing
camera
Contactless
payment reader
SIM card slot
Clover Mini Back
Reset button
Paper roll release
pull tab
Receipt door
5 Clover Mini Feature Guide
Insert payment
Audio jack
Speaker
Hub Ports
Power Type B USB Ethernet
Switching Hub cable's exit direction:
Turn Clover Mini over to access underside
1
Use provided screwdriver to loosen green screw
2
Switch cable to desired direction
3
Tighten green screw (be sure to not overtighten)
4
3
2
Green screw on Hub connector must always be tightened to
ensure reliable connection.
Type A USB Cash drawer

