CAUTION: Risk of Property Damage.
!
Do not apply power to the system before
checking all wiring connections. Short circuited
or improperly connected wires may result in
permanent damage to the equipment.
MISE EN GARDE : Risque de dégâts
matériels.
Ne pas mettre le système sous tension avant
d'avoir vérifié tous les raccords de câblage. Des
fils formant un court-circuit ou connectés de
façon incorrecte risquent d'endommager
irrémédiablement l'équipement.
CAUTION: Risk of Property Damage.
!
Do not run low voltage cable in the same conduit
or wiring troughs with high voltage wires.
Running low and high voltage wires in the same
conduit or wiring troughs may damage the
equipment or cause system malfunction.
MISE EN GARDE : Risque de dégâts
matériels.
Ne pas faire courir un câble basse tension dans
les mêmes gaines ou goulottes électriques que
des câbles haute tension. L'installation de fils
basse tension et haute tension dans les mêmes
gaines ou goulottes électriques risque
d'endommager l'équipement ou de provoquer
des dysfonctionnements du système.
IMPORTANT: Use copper conductors only. Make all
wiring in accordance with local, national, and regional
regulations. Do not exceed the CD-W00-x0-2 Series Wall
and Temperature
Mount CO
2
ratings. Exceeding transmitter electrical ratings can result
in permanent damage to the transmitter and void any
warranty.
IMPORTANT: When using multi-stranded wire cable,
apply a cable ferrule to the cable end. If the distance
between the sensor and the controller is over 3 meters
(9.8 feet), use shielded cable. Connect the shield at the
controller end of the cable.
Location Selection
When mounting wall model transmitters:
•
Select a location that well represents the area of
interest.
•
Do not install the transmitter on the ceiling.
•
Avoid placing the transmitter near heat and
moisture sources, close to the discharge of the
supply air ducts, and in direct sunlight.
CD-W00-x0-2 Series Wall Mount CO
Transmitters electrical
and Temperature Transmitters Installation Instructions
2

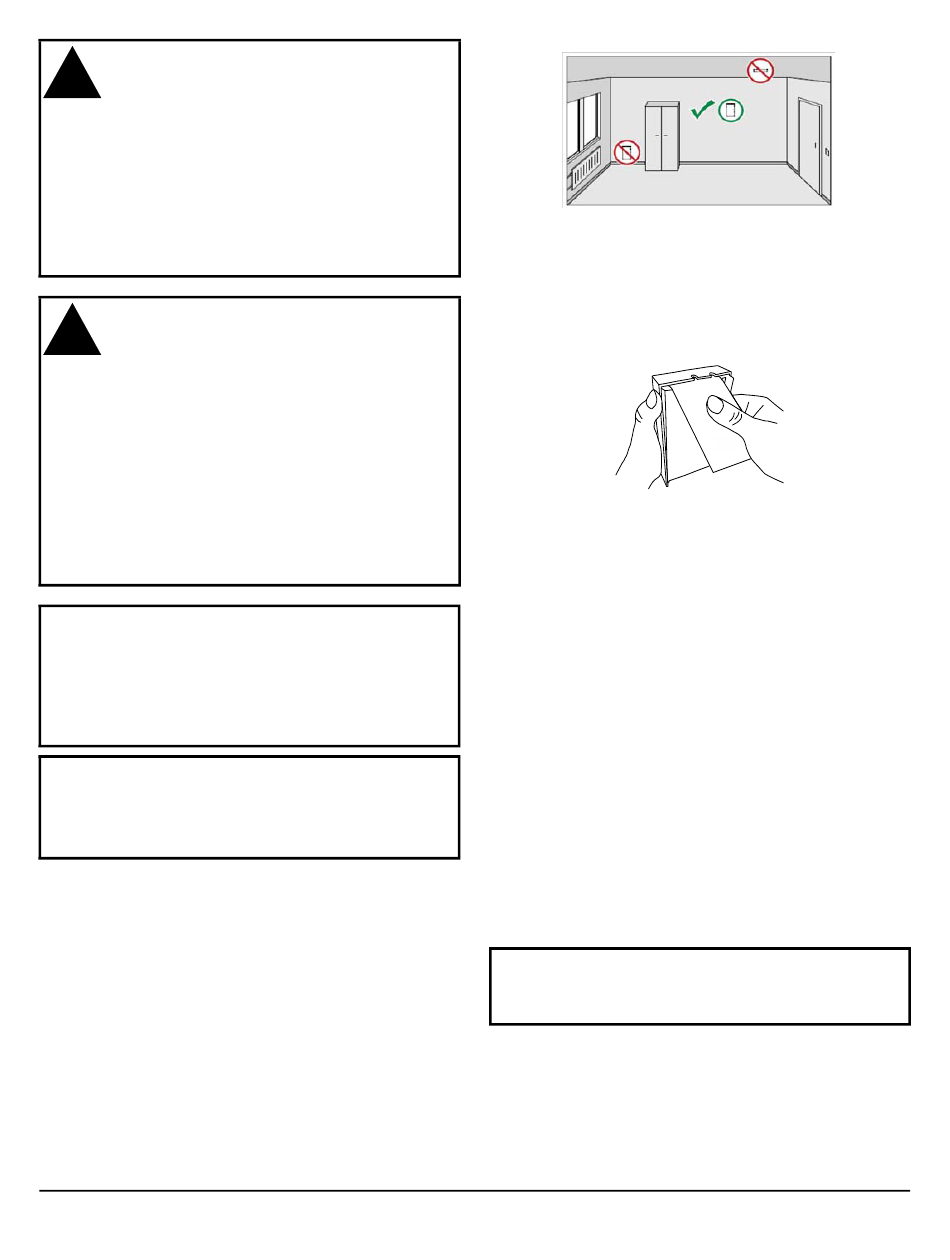

Figure 1: Location Selection
Installing the Mounting Base and Cable
1. Open the transmitter by pulling outward on the
paper tab that holds the cover and mounting base
together (Figure 2).
Figure 2: Pull Outward on the Paper Tab
2. Pull the mounting base away from the cover,
starting from the top.
3. Pull out approximately 6 in. (152 mm) of wire from
the wall and insert the wire through the hole in the
mounting base.
Note: Route the cable through the hole in the
mounting base if possible. You can also bring the cable
to the housing from above or below, but you have to
break off the small plastic tab that covers the hole on
top or bottom of the mounting base.
Note: Do not route the cable through the area marked
NO CABLES on the mounting base (Figure 3). That
space is taken up by the CO
when the cover is attached.
4. Align the mounting base on the wall, and confirm
that the arrow imprinted on the mounting base is
pointing up (Figure 3).
IMPORTANT: Proper orientation is important. Air
must flow through the vents on the bottom and the
top.
5. Secure the mounting base to the wall, using at
least two field-supplied screws (Figure 3).
2
measurement module
2
