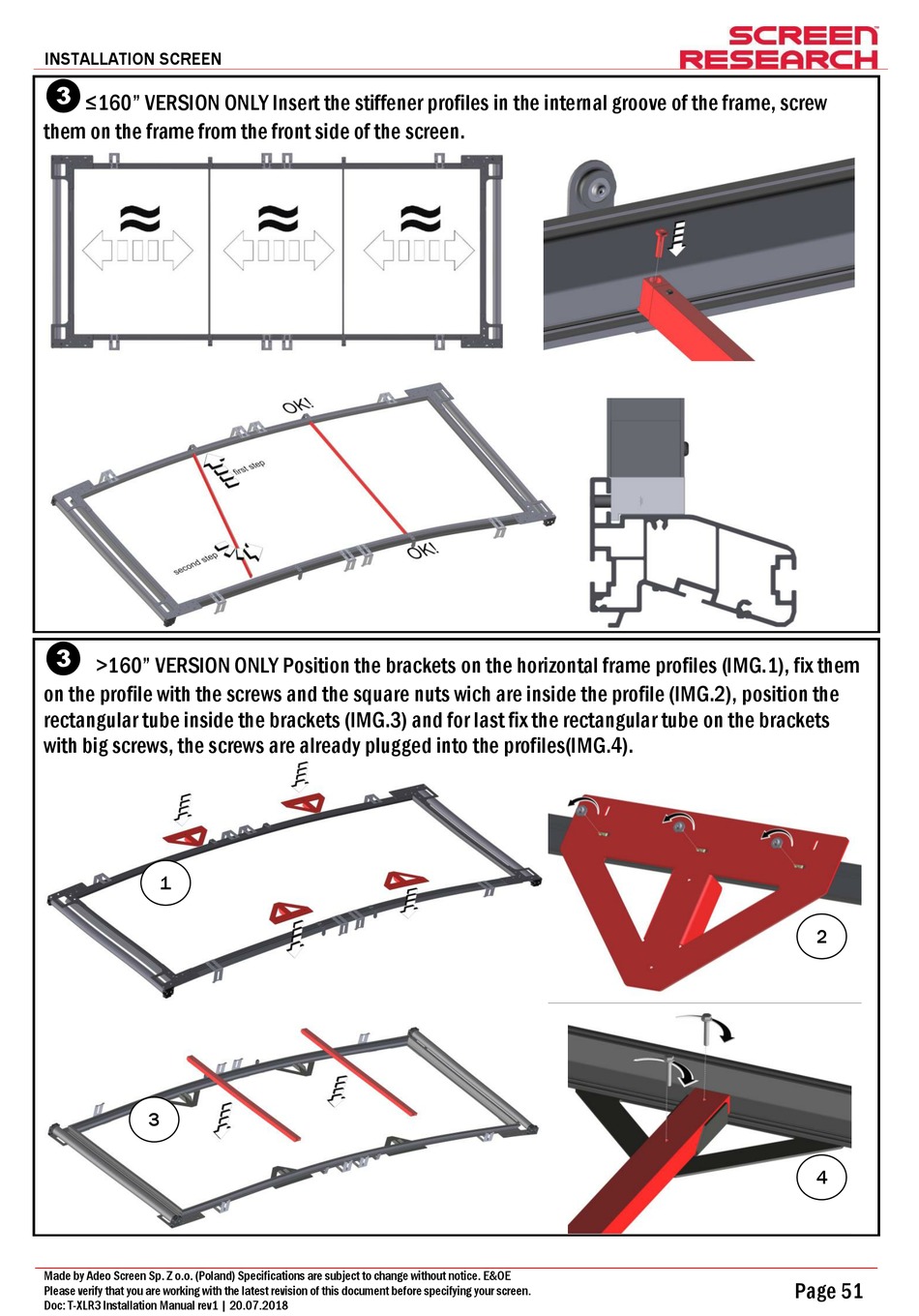

INSTALLATION SCREEN
3
≤160" VERSION ONLY Insert the stiffener profiles in the internal groove of the frame, screw
them on the frame from the front side of the screen.
3
>160" VERSION ONLY Position the brackets on the horizontal frame profiles (IMG.1), fix them
on the profile with the screws and the square nuts wich are inside the profile (IMG.2), position the
rectangular tube inside the brackets (IMG.3) and for last fix the rectangular tube on the brackets
with big screws, the screws are already plugged into the profiles(IMG.4).
1
3
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: T-XLR3 Installation Manual rev1 | 20.07.2018
2
4
