Screen Research T-X4R Bedienungs- Und Installationsanleitung
  1. Anleitungen
  2. Marken
  3. Screen Research Anleitungen
  4. Leinwände
  5. T-X4R
  6. Bedienungs- und installationsanleitung

Screen Research T-X4R Bedienungs- Und Installationsanleitung

Vorschau ausblenden
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 32

Quicklinks

Diese Anleitung herunterladen

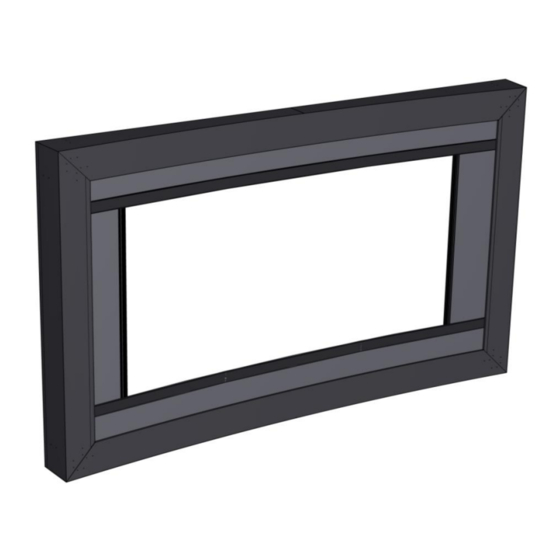

T-X4R - Installation Manual
Model Fixed Frame TheaterCurved Screen with
Masking
Reference X-Mask 4-Way – T-X4R
Code PFMCT-X4R-XXXXX
Manuale d'installazione e d'uso schermo a cornice rigida con mascheramento
Fixed frame screen with masking installation and operation manual
Manuel d'installation et d'utilisation de l'écran à cadre rigide avec masquage
Bedienungs- und Installationsanleitung: Leinwand mit festem Rahmen und
Maskierung
Manual de instalación y de uso: pantalla con marco rígido y máscara
Instrukcja montażu i obsługi ekranu ramowego z maskami
Made by Adeo Screen Sp. Z o.o. (Poland)
Doc: T-X4R Installation Manual rev1 | 23.08.2018

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für Screen Research T-X4R

Inhaltszusammenfassung für Screen Research T-X4R

  • Seite 1 Bedienungs- und Installationsanleitung: Leinwand mit festem Rahmen und Maskierung Manual de instalación y de uso: pantalla con marco rígido y máscara Instrukcja montażu i obsługi ekranu ramowego z maskami Made by Adeo Screen Sp. Z o.o. (Poland) Doc: T-X4R Installation Manual rev1 | 23.08.2018...

  • Seite 2: Norme Generali Di Sicurezza

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 2 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 3: Pulizia / Manutenzione

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 3 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 4: Istruzioni Per L'installazione

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 4 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 5 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 5 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 6: Garanzia

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 6 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 7 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 7 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 8 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 8 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 9 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 9 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 10 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 10 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 11: Collegamento Elettrico

    7.RICHIESTE per quanto riguarda la garanzia limitata di cui sopra, possono essere inviate al rivenditore autorizzato di ScreenResearch. 8. SUPPORTO DI GARANZIA GESTITO DA DISTRIBUTORI AUTORIZZATI Screen Research ha autorizzato la distribuzione dei loro prodotti in molti paesi del mondo. In ogni paese, il Distributore autorizzato importatore è...
  • Seite 12 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 12 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 13: Cleaning And Maintenance

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 13 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 14: Installation Instructions

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 14 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 15 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 15 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 16 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 16 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 17 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 17 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 18 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 18 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 19 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 19 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 20 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 20 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 21: Warranty

    Research will pay return freight of its choice. A RETURNED PRODUCT MUST BE ACCOMPANIED BY A WRITTEN DESCRIPTION OF THE DEFECT AND A PHOTOCOPY OF THE ORIGINAL PURCHASE RECEIPT. This receipt must clearly list model and serial number, the date of purchase, the name and address of the purchaser and authorized dealer and the price paid by the purchaser. Screen Research reserves the right to modify the design of any product without obligation to purchasers of previously manufactured products and to change the prices or specifications of any product without notice or obligation to any person.

  • Seite 22: Normes Générales De Sécurité

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 22 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 23: Caractéristiques Générales Du Produit

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 23 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 24: Istructions Pour L'installation

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 24 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 25 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 25 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 26: Garantie

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 26 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 27 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 27 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 28 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 28 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 29 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 29 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 30 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 30 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 31: Raccordement Électrique

    7.DEMANDES Pour toute demande concernant la garantie limitée ci-dessus, veuillez vous adresser au revendeur autorisé ScreenResearch. 8. ASSISTANCE SOUS GARANTIE GÉRÉE PAR LES DISTRIBUTEURS AUTORISÉS Screen Research autorise la distribution de ses produits dans de nombreux pays du monde. Pour chaque pays, le distributeur autorisé/importateur est responsable de l'assistance sous garantie des produits vendus dans son pays.
  • Seite 32 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 32 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 33: Allgemeine Produkteigenschaften

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 33 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 34: Wichtige Hinweise

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 34 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 35 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 35 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 36: Einstellung Des Endschalters

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 36 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 37: Verschiebung Des Endschalters Der Maskierungen (Darf Nicht Von Unbefugtem Personal Durchgeführt Werden)

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 37 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 38 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 38 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 39 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 39 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 40 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 40 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 41 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 41 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 42: Normas Generales De Seguridad

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 42 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 43 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 43 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 44: Instrucciones Para La Instalación

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 44 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 45 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 45 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 46 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 46 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 47 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 47 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 48 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 48 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 49 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 49 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 50 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 50 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 51 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 51 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 52 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 52 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 53 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 53 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...

  • Seite 54: Instrukcja Instalacji

    Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 54 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 55 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 55 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 56 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 56 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 57 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 57 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 58 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 58 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 59 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 59 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 60 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 60 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 61 Research sprzedawca lub punkt montażowy, konserwacja produktu powinna być przeprowadzana w sposób zgodny z pisemnymi wskazówk ami. 3. ZWROTY Nie przyjmuje się zwrotów produktu bez uprzedniej pisemnej autoryzacji przez Screen Research. Produkt powinien być umieszczony w oryginalnym opakowaniu, wraz z oryginalną zawartością, lub w opakowaniu równie dobrze zabezpieczonym, tak aby uniknąć...
  • Seite 62 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 62 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 63 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 63 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 64 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 64 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 65 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 65 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 66 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 66 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 67 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 67 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 68 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 68 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 69 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 69 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 70 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 70 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 71 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 71 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 72 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 72 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 73 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 73 Please verify that you are working with the latest revision of this document before specifying your screen. Doc: T-X4R - Installation Manual rev1 | 23.08.2018...
  • Seite 74 200480025260.9 (China) - N° 10/570135 (USA) - N° 09742311.5 (Europe) - N° EP09742311.5-201012902034558 (Italy) - N° 903989 (France) - N° 802361 (France) - N° PCT/FR2010/051593 - N° PCT/FR2009/050662 - N° 12/989842 (USA); SilverPix, ClearPix, MultiPix, SolidPix, X-Mask, E-Mask, TheaterCurved, E-Grip, TFX, StopLight, DécorMask and the Screen Research logo are all trademarks of Screen Research.

Inhaltsverzeichnis
