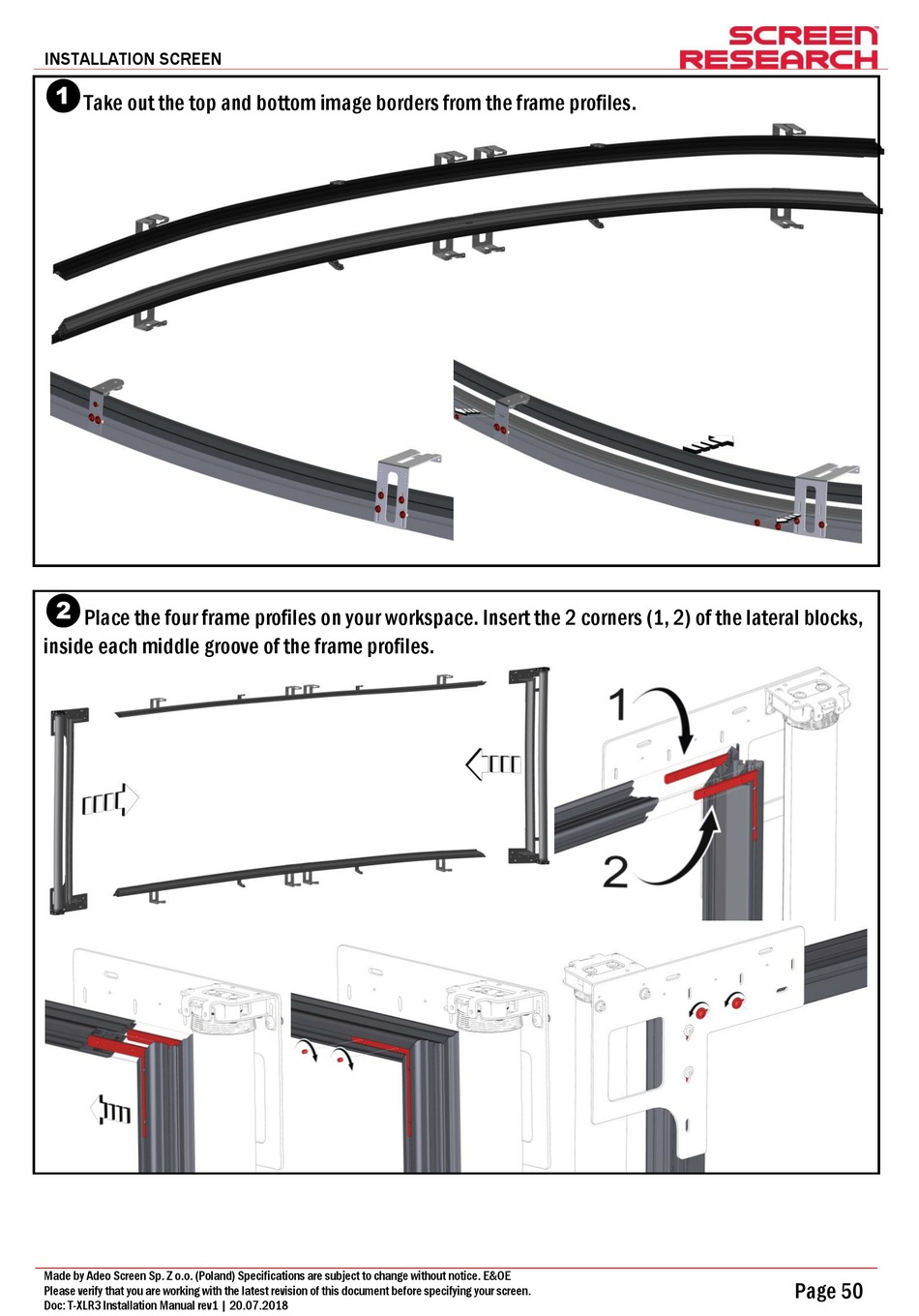

INSTALLATION SCREEN
1
Take out the top and bottom image borders from the frame profiles.
2
Place the four frame profiles on your workspace. Insert the 2 corners (1, 2) of the lateral blocks,
inside each middle groove of the frame profiles.
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: T-XLR3 Installation Manual rev1 | 20.07.2018
Page 50
