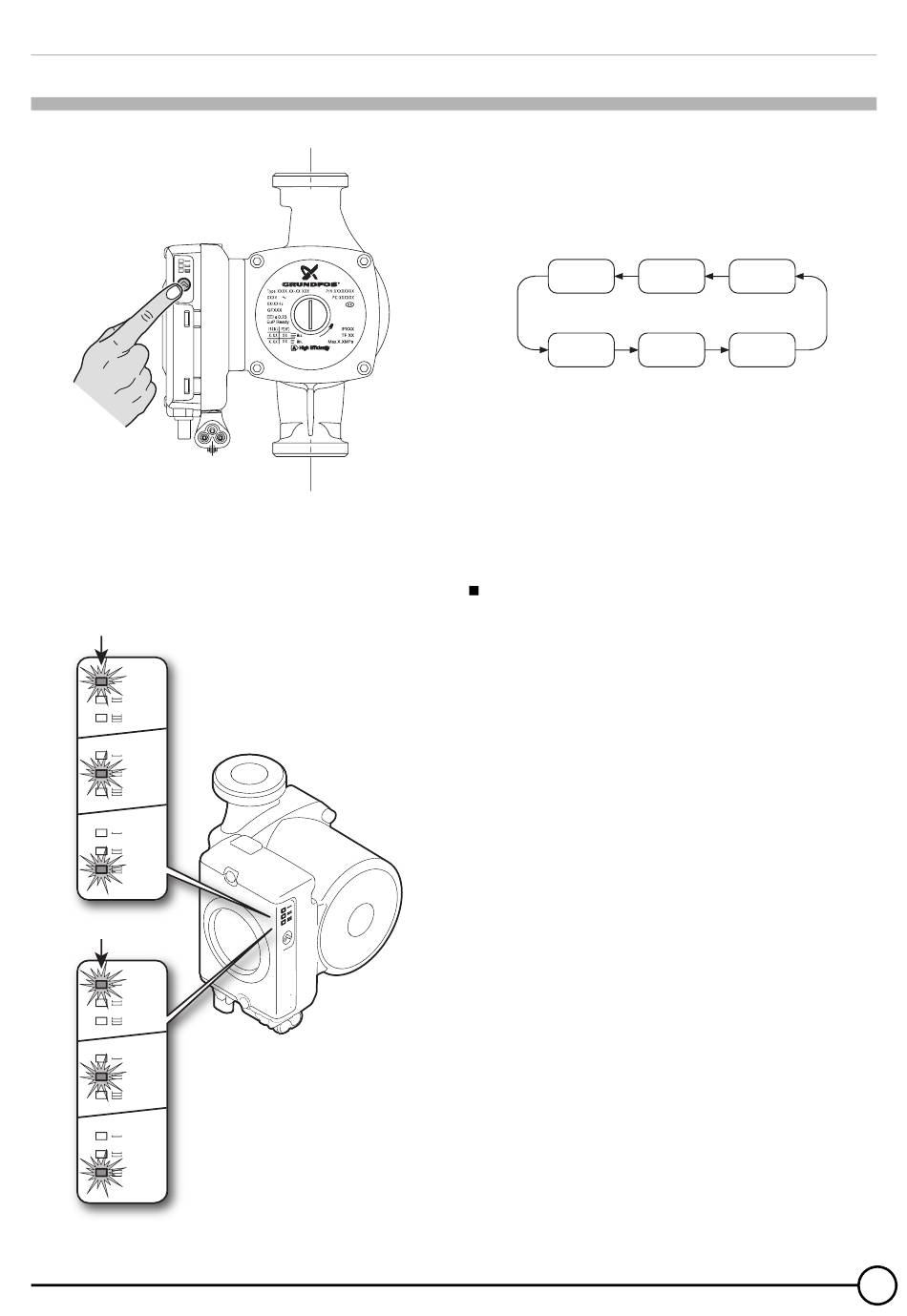

Setting the pump

LED indication of the curve setting
Flashing Fast
PP1
PP2
PP3
Flashing Slow Flashing Slow g
CP1
CP2
CP3
11/06/2015 - 7637025-02
The user interface allows to select between 6 control curves in 2
control modes:
- 3 proportional pressure curves (PP)
- 3 constant pressure/power curves (CP)
Serial curve setting.
C005032-A
Factory presetting
Proportional pressure curve (PP2):
• Push the button for 2 seconds:
- Pump goes to setting mode - LED starts flashing.
• With each push, the setting changes:
- LED 1-2-3 are permanently on, and then the control curve and
• Flashing mode:
- Fast: Proportional pressure
- Slow: Constant pressure/power
• After 10 seconds not pushing the button:
- Setting is adapted.
- Pump returns to operating mode.
• LED 1 or 2 or 3 is permanently on:
- Pump is running with the selected curve and mode.
.
C005033-A
UPML XX-95 130 AUTO
PP1 PP2
CP3 CP2
mode is changed.
PP3
CP1
C005030-A
