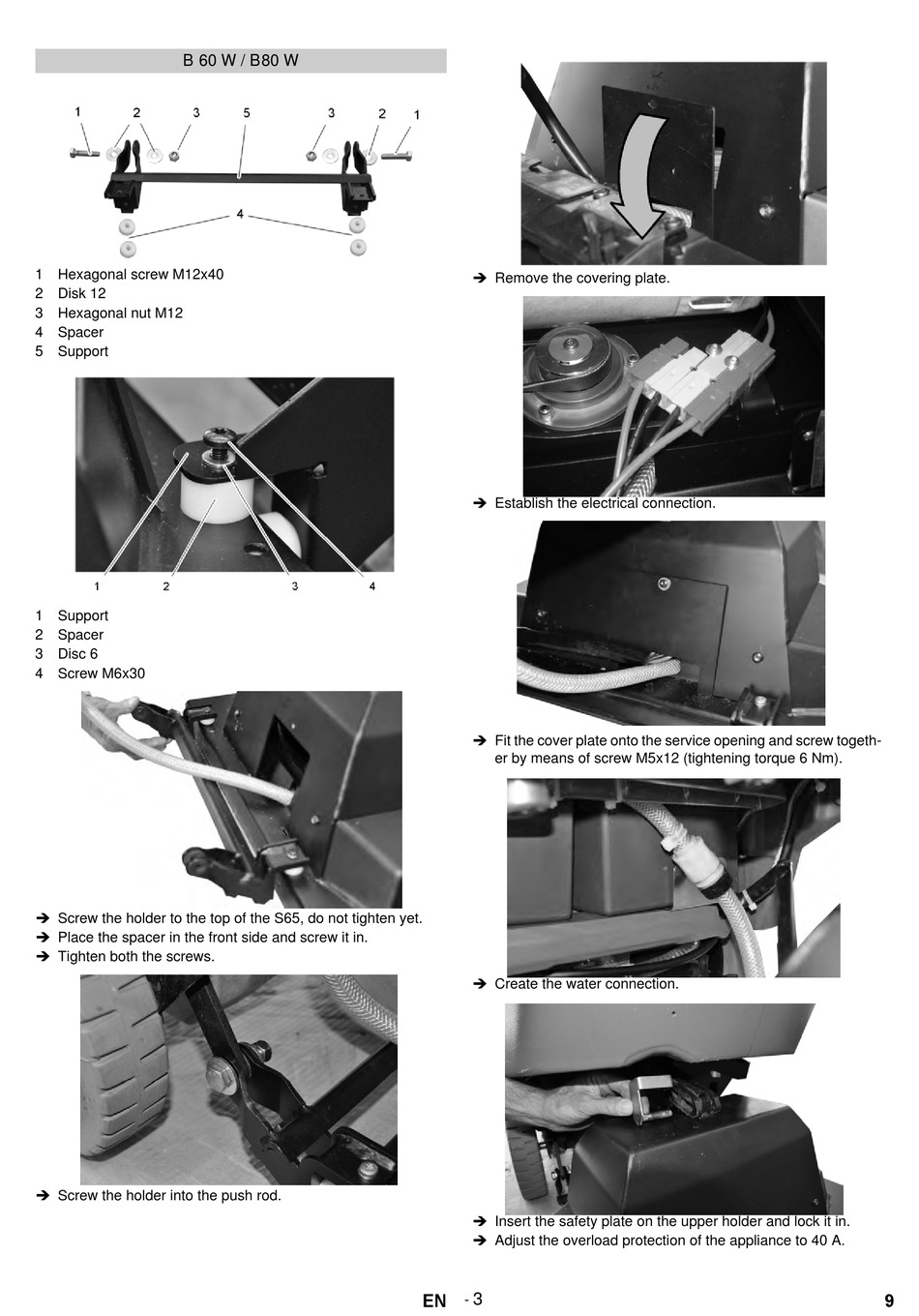

B 60 W / B80 W
1 Hexagonal screw M12x40
2 Disk 12
3 Hexagonal nut M12
4 Spacer
5 Support
1 Support
2 Spacer
3 Disc 6
4 Screw M6x30
 Screw the holder to the top of the S65, do not tighten yet.
 Place the spacer in the front side and screw it in.
 Tighten both the screws.
 Screw the holder into the push rod.
 Remove the covering plate.
 Establish the electrical connection.
 Fit the cover plate onto the service opening and screw togeth-
er by means of screw M5x12 (tightening torque 6 Nm).
 Create the water connection.
 Insert the safety plate on the upper holder and lock it in.
 Adjust the overload protection of the appliance to 40 A.
