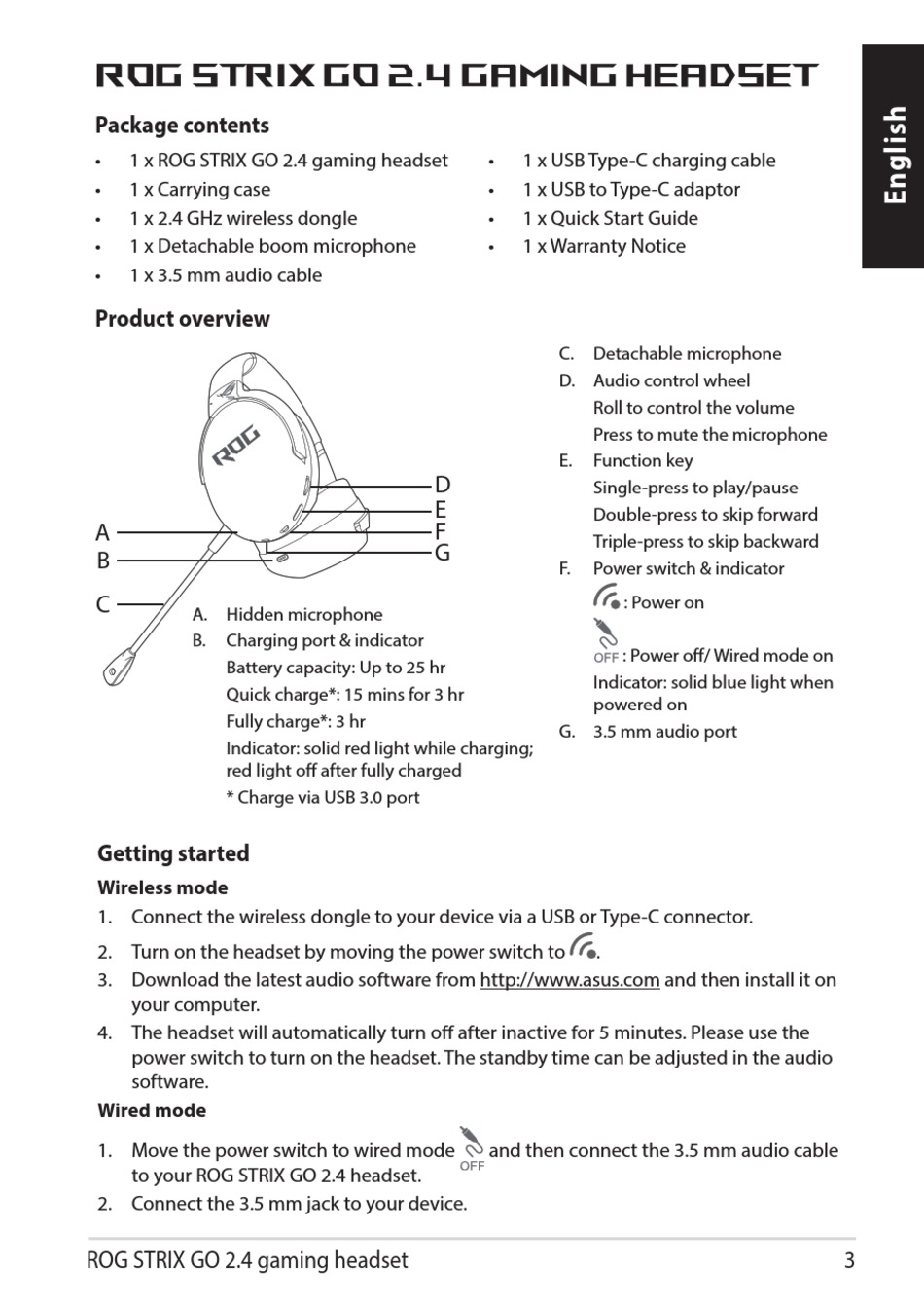

Asus ROG STRIX GO 2.4 GAMING HEADSET Schnellstartanleitung Seite 3

ROG STRIX GO 2.4 gaming headset
Package contents
• 1 x ROG STRIX GO 2.4 gaming headset
• 1 x Carrying case
• 1 x 2.4 GHz wireless dongle
• 1 x Detachable boom microphone
• 1 x 3.5 mm audio cable
Product overview
A
B
C
A. Hidden microphone
B. Charging port & indicator
Battery capacity: Up to 25 hr
Quick charge*: 15 mins for 3 hr
Fully charge*: 3 hr
Indicator: solid red light while charging;
red light off after fully charged
* Charge via USB 3.0 port
Getting started
Wireless mode
1. Connect the wireless dongle to your device via a USB or Type-C connector.
2. Turn on the headset by moving the power switch to
3. Download the latest audio software from http://www.asus.com and then install it on
your computer.
4. The headset will automatically turn off after inactive for 5 minutes. Please use the
power switch to turn on the headset. The standby time can be adjusted in the audio
software.
Wired mode
1. Move the power switch to wired mode
to your ROG STRIX GO 2.4 headset.
2. Connect the 3.5 mm jack to your device.
ROG STRIX GO 2.4 gaming headset
• 1 x USB Type-C charging cable
• 1 x USB to Type-C adaptor
• 1 x Quick Start Guide
• 1 x Warranty Notice
C. Detachable microphone
D. Audio control wheel
Roll to control the volume
Press to mute the microphone
E. Function key
D
Single-press to play/pause
E
Double-press to skip forward
F
Triple-press to skip backward
G
F. Power switch & indicator
Indicator: solid blue light when
powered on
G. 3.5 mm audio port
.
and then connect the 3.5 mm audio cable
: Power on
: Power off/ Wired mode on
3
