Calorex VARIHEAT VH3 Installationshandbuch Seite 10

2.0 CONSOLE FIXING
TOP OUTLET RANGE
800.00
SERVICE ACCESS AREA
REQD FOR ALL SERVICE PANELS
% RH
MAX
AUTO HUM IDITY AIR TE MP
MI N
AUTO
HORIZONTAL RANGE
REMOVE
SCREWS
CONNECTING
CABLE

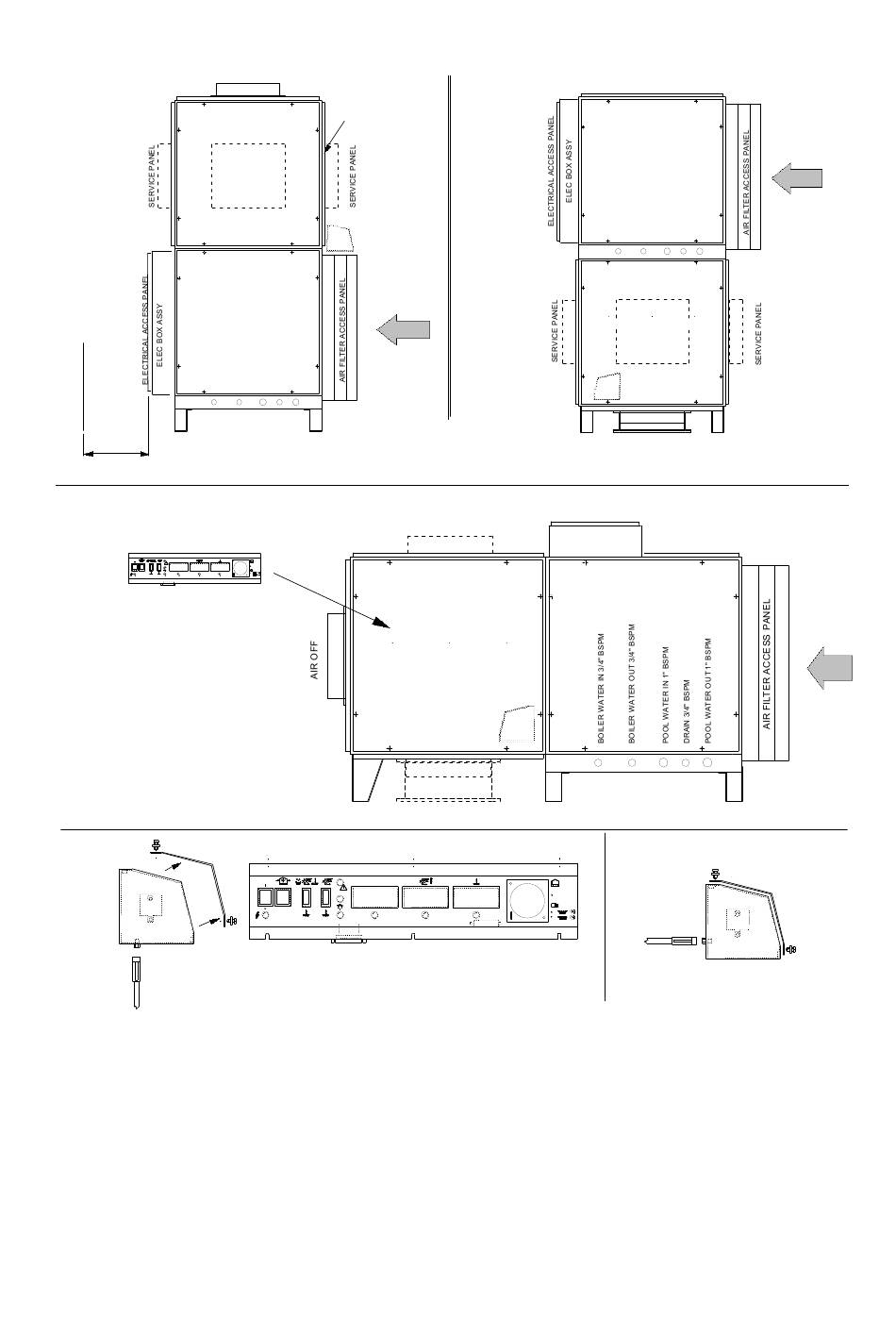

The Variheat 3 is designed with interchangable service panels.
On delivery, a console fixing service panel is fixed in the position shown in the diagrams above. The console for the
Variheat 3 will either be attached to the machine above the air filter access panel or located inside the Variheat 3
fan box. The console can be attached to the Variheat 3 as instructed below.
1. Fix the 3 self tapping screws provided into the 3 holes in the console fixing service panel. (Indicated by a label).
Leave a small gap.
2. The console drops over the screws.
Note: It is best to have the console panel close to the electric box, as once the console is fixed to the Variheat 3
the ribbon cable connector supplied with the Variheat 3 needs to be connected between the console and the
electric box. The connector on the console is at the bottom.
If the console is to sit on a shelf, the back panel on the console can be turned round. Remove the 6 fixings
attaching the display to the back panel. Turn the panel round to that the connector points out of the back of the
panel and replace the fixings. See sketch above.
AIR OFF
CONSOLE FIXING
PANEL WITH 3
SERVICE PANEL
HOLES.
(IF NOT DUCTED)
ALTERNATIVE
AIR OFF POSN'S
SERVICE PANEL
WATER CONNECTIONS
ºC ºC
W ATER TEMP
= AUTO
=
=
% RH
MA X
HUMIDITY
AUTO
MIN
AUTO
POSITION OF
CONNECTOR
AIR ON
ELECTRICAL ACCESS PANEL
ALTERNATIVE
ELEC BOX ASSY
AIR OFF POSN'
SERVICE PANEL
CONSOLE FIXING HOLES (3)
ALTERNATIVE
AIR OFF POSN'
C ° C °
= A UTO
AIR TEMP WATER TEMP
4 STAGE
=
=
POSITION OF
CONNECTOR AFTER
ROTATING PANEL
Page 8
BOTTOM OUTLET RANGE
SERVICE PANEL
WATER CONNECTIONS
CONSOLE FIXING HOLES (3)
ALTERNATIVE
AIR OFF POSN'S
SERVICE PANEL
(IF NOT DUCTED)
AIR OFF
SERVICE PANEL
REPLACE SCREWS
CONNECTING
CABLE
NEW POSITION WITH
PANEL ROTATED
AIR ON
AIR ON
SD437350 ISSUE 22
