INTRODUCTION
Congratulations on your Celestron microscope purchase.
Your new microscope is a precision optical instrument,
made of high quality materials to ensure durability and long
life. It is designed to give you a lifetime of enjoyment with a
minimal amount of maintenance.
Before attempting to use your microscope, please read
through the instructions to familiarize yourself with the
functions and operations to maximize your experience. Refer
to the microscope diagrams to locate the parts discussed in
this manual.
The microscope provides magnification from 40x to 600x. It
is ideally suited for examining specimen slides of yeasts and
molds, cultures, plant and animal parts, fibers, bacteria, etc.

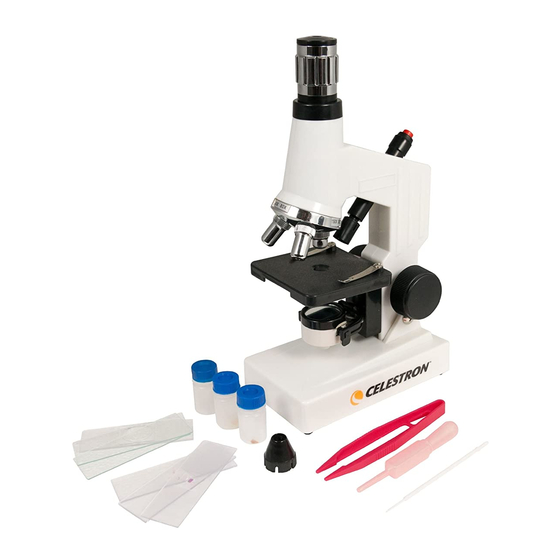

Standard Accessories Included with your Microscope
TWEEZERS
NEEDLE PROBE
EYE DROPPER
3 SPECIMEN SAMPLES
DIFFUSER
3 PREPARED SLIDES,
HOLE (CLEAR) SLIDE,
2 BLANK SLIDES
MICROSCOPE
INSTRUCTION MANUAL
MODEL #44121
ENGLISH
KIT
You can also examine small and thin objects at low powers
such as coins, rocks, insects, various materials, etc. You can
also explore the exciting microscopic world by creating your
own specimen slides. An excellent book to get you started,
which describes various projects and activities along with
techniques, is "The World of the Microscope" by Usborne.
The final section of this manual provides simple care and
maintenance tips to ensure that your microscope provides
you with years of quality performance.
Note: This product is designed and intended for use by
those 14 years of age and older.
1
1.10x TO 20x ZOOM EYEPIECE
2. EYEPIECE TUBE
3. TOP ILLUMINATION - LED
4. ARM
5. NOSEPIECE
6. 4x, 15x AND 30x OBJECTIVE LENSES
7. STAGE
8. STAGE CLIP
9. FOCUS KNOB
10. BOTTOM ILLUMINATION – LED
11. BASE
F 1
IGURE
