Operation
Plug in the charger to AC mains (100-240VAC), all the icons will come on one by one for a few seconds
as the charger goes through a self check. Then only the Standby icon lights up ready for charging
operation.
Connect red battery lead to the positive terminal of the battery and black to negative terminal.
Wrong connections or a short circuit will cause
Take note of the icons before and after pressing the Select Button
the battery is not suitable for charging.
Battery Type Selection: Using the select button simply press the button, 1,2 or 3 times to move through
the battery types, simply stop at the type required. If you adjust the setting the setting will lock after 10 sec
after the battery type you require has been selected. You have 2 mins from start up to adjust the battery
type if you require. If no adjustment is made or is required in the first 2 mins then the product will assume
the last setting from the previous charge cycle .

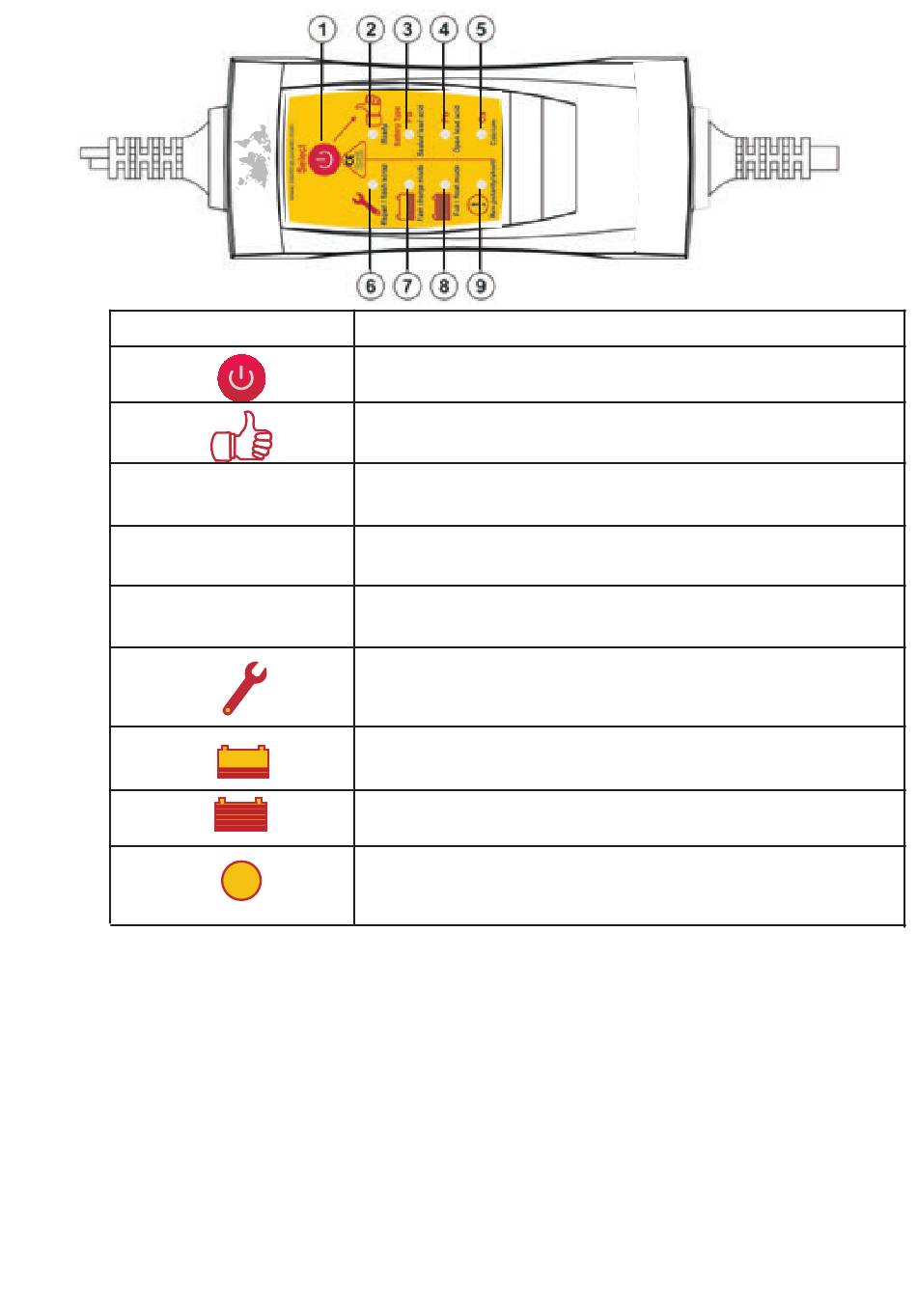

Icon
Select: Battery type selection.
Ready: Steady light a/c source on but battery not connected,
Flashing Battery connected you have 2 mins to set type if required
Sealed Lead acid. Agm, Gel , Charge Voltage 14.4 Float 13.5
Always check which voltage is suitable for your battery type
Open Lead acid. Can be topped up, Traction, some AGM
Charge Voltage 14.8 Float 13.5
Calcium. Charge 15.2 Float 13.5 , also good for de-sulphation
Always check which voltage is most suitable for your battery type
Repair /flash scrap:
Charger checking Battery or in Repair charge Stage.
Flashing when battery is not suitable for charging (Scrap).
Fast charge mode: Battery is low and Charger in Bulk
or Absorption Charging and de sulphation
Full /float mode :Battery is Full and Charger in Float Charge
with maintenance pulse mode
Alarm:
!
1. Output connectors is either Short Circuit or in reverse polarity
2. Over temperature shut down projection is activated.
Function:
All voltages x 2 for 24 v battery charger
