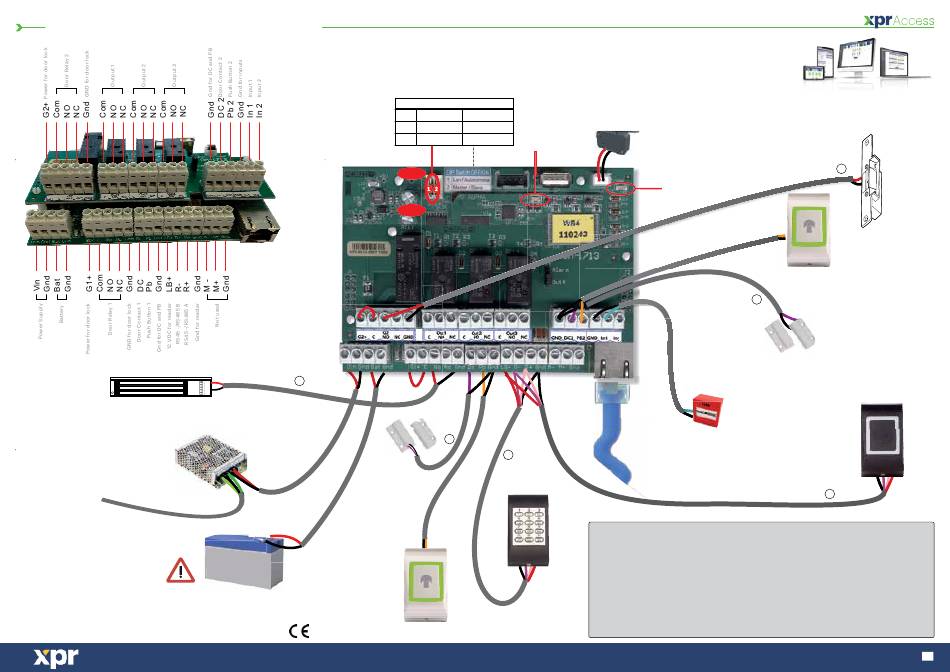

Connection example of 2 doors
Electromagnetic Lock 12V/600mA max
+
V+
V-
-
Power supply 14,2VDC
See user manual
12V battery
This product herewith complies with requirements of EMC directive 2014/30/EU.
In addition it complies with RoHS2 directive EN50581:2012
Dip Switch
OFF
1 Lan Autonomous
2 Master
ON
1 2
OFF
(1) (1)
7
6
Door contact
Push button
www.xprgroup.com
ON
Slave
Run Led Box Tamper
(1)
Net
Network
5
Reader
1. The readers for Door 1.0 must be at address 0 and those for Door 1.1 at address 1.
2. For doors equipped with 2 readers, one must be at address 0 and the other at address 1.
3. The function of OUT1, OUT2 and OUT3 can be configured in the software
4. In1 & In2: Connect to GND by a volt-free contact to activate the input
5. LIYCY cable, twisted pair, up to 80m.
If more than 80 m. are needed, then termination resistors(120 ohm) may be required at both ends of
the RS485 line,
while taking into consideration the lengths proposed on our web site.
6. Alarm cable 2x0,22
Address 0
7. The cross section of the cable depends on the current needed by the lock
Note: The elevators relay boards (WS4-RB-12) are connected on the same RS485 lines as the readers.
7
Led Comm
Push button
6
Door contact
Example:
emergency button
5
electric strike
12V/600mA max
Reader
Address 1
EN 2
