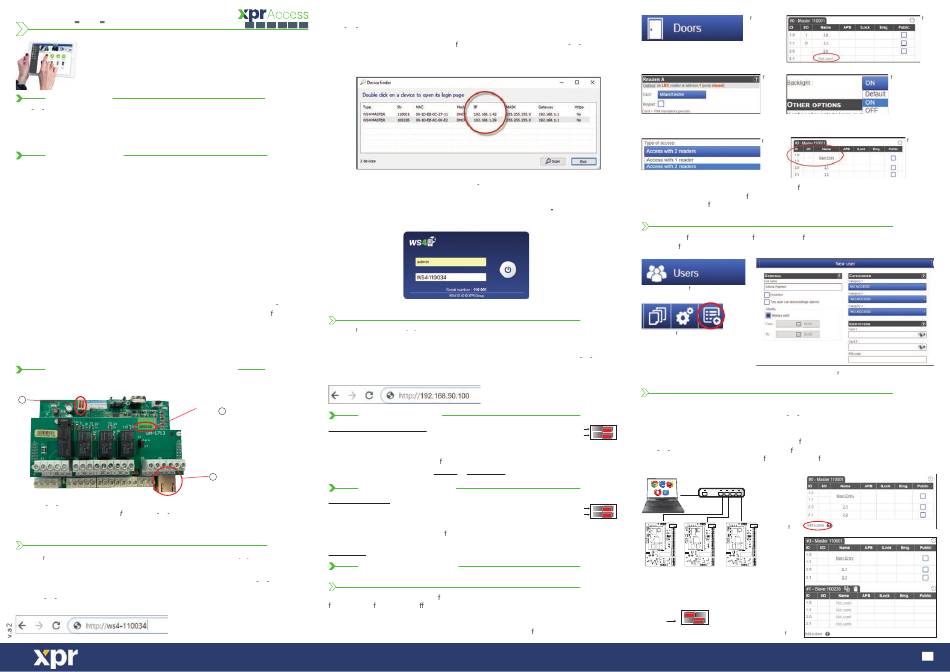

1 Door access control unit with web access
QUICK USER GUIDE
DESCRIPTION
WS4 1D E is a 1 door control unit designed to operate with readers with RS485 output.
There is no need to install any software. There is no need to have a dedicated PC
either. Everything is available online and the operators just need to register with
controller's serial number to start using the software application.
SPECIFICATIONS
• Capacity: 2500 Users
• Events: 50000 max.
• Doors: 1 (max. 20 doors in same network)
• Readers: 2
• Door contact inputs: 1
• Push button inputs: 1
• Supply for the readers: 250 mA each max.
• Supply for the locks: 600 mA each max.
• Relay characteristics: 2A/48 VAC/DC
• Processor: ARM A5 - 528 Mhz
• Memory: 64 MB Ram DDR2 133 Mhz
• TCP/IP connection: 10/100/1000 Base-T – HTTP or HTTPS
• Dimensions (mm): 130 x 86 x 18 mm
• Operating temperature: 0 °C to +50 °C
• Humidity: 0% to 85% (non-condensing)
• Tamper: Yes
• Wiegand readers connection: Yes, via Wiegand to RS485 converter - WS4 CNV
• Elevator feature: Yes, 2 elevators per installation, each - 24 loors
• Interlock, Anti pass back, people counter, presence, system logs, reports in CSV
FIRST CONNECTION AND CONFIGURATION
DIP Switch pos. 1
Serial number
1
DIP Switch
pos. 1
The WS4 1D E does not have default IP address. By default is set to DHCP. There are 2
methods to connect to and con igure WS4 1D E - LAN and Standalone method.
METHOD 1
(For use in a home or business LAN network)
In this con iguration, the network's DHCP server will assign an IP address to your WS4 1D E
1. Put the DIP switch 1 in position OFF.
2. Connect a cable from your network to the ethernet connector of Ws4 1D E.
3. Open a web browser and enter http://ws4 followed dash and the serial number of
the WS4 1D E controller
If you can not connect, it is because your network does not recognize the name of the
EN FR IT ES DE NL
WS4 2D E controller. In this case, go to our web site http://www.xprgroup.com/prod-
ucts/ws4/ and download the tool called "Device Finder".
The "Device Finder" will enable you to ind out the IP address of the WS4 1D E controller.
Run the "Device Finder" and you will get a list of all the WS4 controllers connected in
your network, including their IP addresses, just like the picture below.
Open a browser and type the IP of the WS4 1D controller and you will be prompted to
the login page.
User Name: admin
Password: WS4 followed by Dash and the Serial Number (ex. WS4 110034) just like the
image below, all in capital letters without space.
METHOD 2
(For standalone use - without LAN network)
In this con iguration, the WS4 1D E will assign an IP address to your PC. The PC must be set to obtain IP
address automatically.
1. Put the DIP switch 1 in position ON.
2. Connect a cable from your PC directly to the ethernet connector of WS4 1D E.
3. Open a web browser and enter the following IP - 192.168.50.100, then put the login
credentials like explained above
FACTORY RESET
3
DIP Switch 1, 2 and the tamper allows a complete re-initialization of the system.
1. Unplug the TCP/IP network cable (Rj45).
2. Set the two dip switches to position ON.
3. Wait until the green COMM LED lashes.
4. Close and reopen the Tamper 3 times in 10 seconds.
2
CHANGE PASSWORD
DIP Switch 1 and 2 allows to log into the system as an administrator if login
or password is forgotten.
1. Unplug the TCP/IP network cable (Rj45).
2. Set the two dip switches to position ON.
3. Wait until the green COMM LED lashes.
4. To log into the system as an administrator: close the Tamper for
15 seconds, then release it.
SOFTWARE SETTINGS
ADDING READERS
Go to "Doors", select the reader( ig.2) and then select the type of the reader in the
ield "Card". ( ig.3). While o line, red LED blinks fast and buzzer beeps continuously.
Once communication is established, the red LED and the buzzer stop. Green LED
starts to blink continuously. If you want to stop the green LED, go to Settings/System
Options and select for the backlight ON or OFF (not default) ig.4
OFF
Factory reset
OFF
Change
password
www.xprgroup.com
ig.1
ig.3
ig.5
To add 2 readers on 1 Door, select the reader ( ig.2) and there, for "Type of Access"
select "Access with 2 readers" ( ig 5). Fill the form for both readers and they will
merge in one door ( ig. 6)
ADDING USERS
Go to Users ( ig.1), select "New"( ig.2) and then ill the form (Name, category, card
number...)( ig.3).
ig.1
ig.2
ADDING SLAVE CONTROLLERS
WS4 system can manage up to 10 WS4 boards in the same installation (with up to 20
doors, whether single or double). One WS4 1D E must be master, the others must be
slaves. The master/slave selection is made with Dip-switch 2: OFF - Master (factory
ON
setting), ON - Slave.
1
Go to "Doors" and click on the link "Add slave"( ig.1). Enter the serial number of the
2
WS4 1D E to be added and click Search. If it inds it, the system directly adds this slave
into the installation and you can con igure its doors ( ig.2).
In case of error, a message is displayed in red.
Switch
ON
1
2
Master Slave 1 Slave 9
DIP switch 2 DIP switch 2 DIP switch 2
OFF ON ON
Master/
OFF ON
Slave
1 DIP switch 2 - ON
2
ig.2
ig.2
ig.4
ig.6
ig.3
ig.1
