Power Consumption - Axis P7216 Installationsanleitung

Power Consumption

Product
AXIS P7216
Connectors

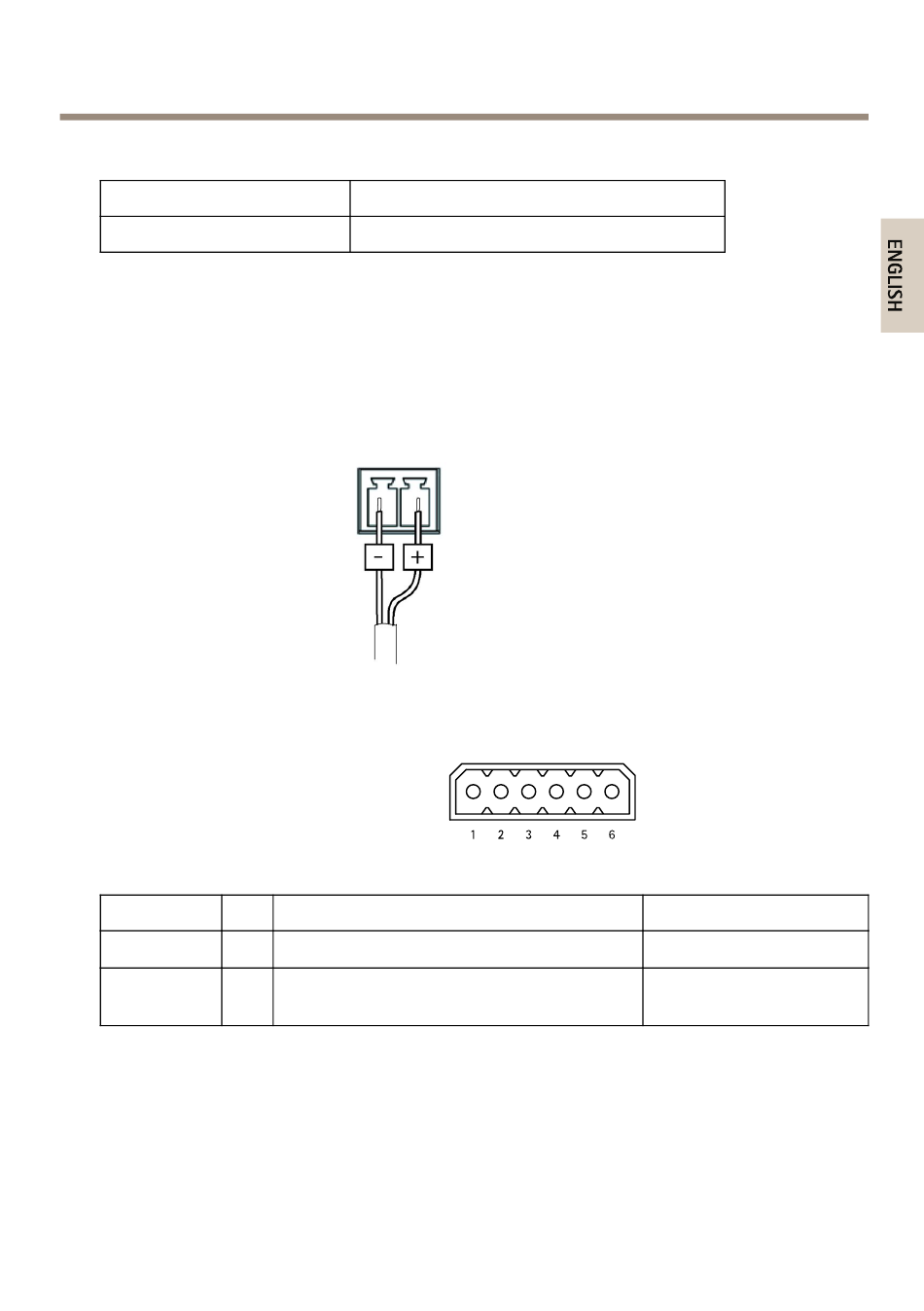

Power Connector
2-pin terminal block for
power input. Use a Safety
Extra Low Voltage (SELV)
compliant limited power
source (LPS) with either a
rated output power limited
to ≤100 W or a rated output
current limited to ≤5 A.
I/O Terminal Connector
6–pin terminal block for:
• Digital Input
• Digital Output
• 0 V DC (-)
Function Pin
1
0 V DC (-)
2
DC output
DC
12–28 V DC, max 22 W
DC power input
Notes
Can be used to power auxiliary equipment.
Note: This pin can only be used as power out.
AXIS P7216 Video Encoder
1 2 3 4 5 6
11
Specifications
0 V DC
12 V DC Power
Max load = 50 mA
