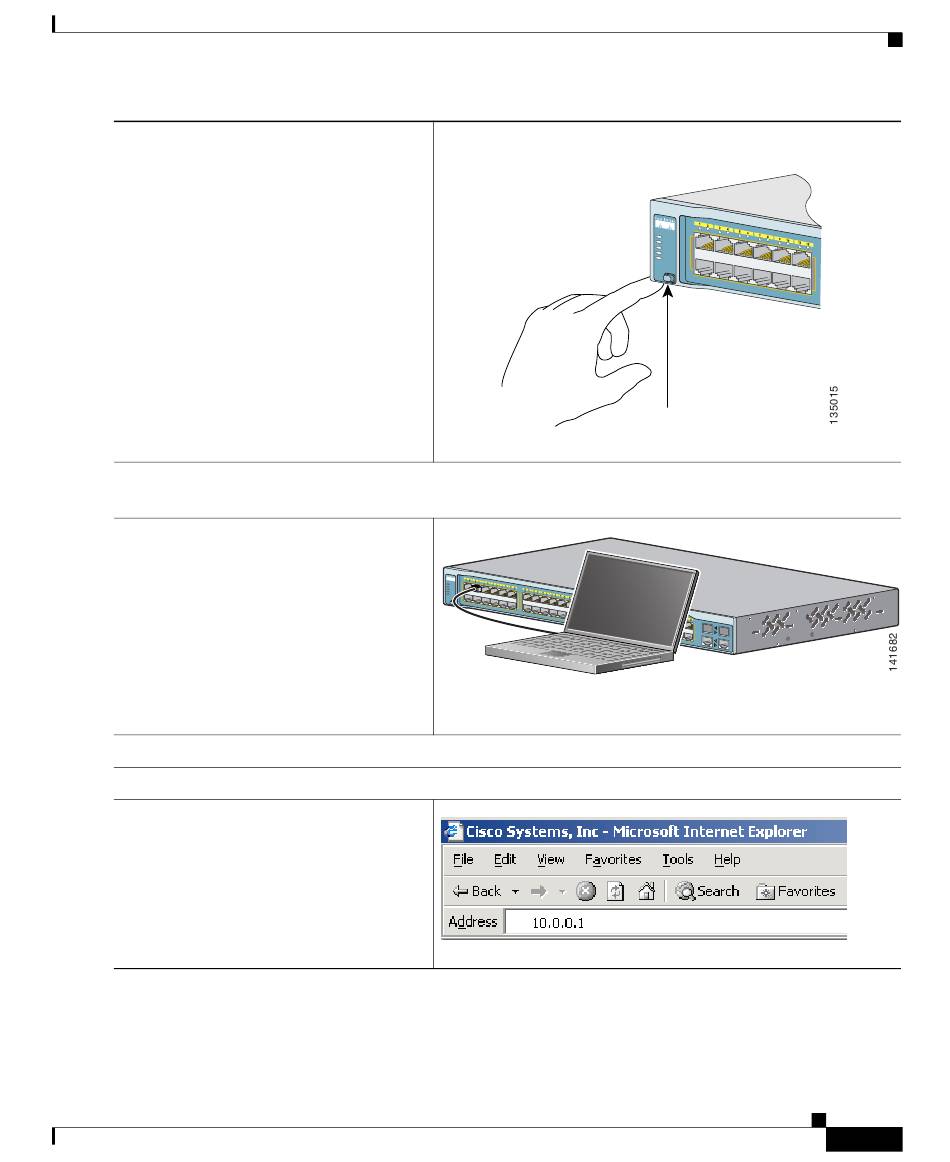

Press and hold the Mode button for 3
Step 5
seconds. When all of the LEDs above
the Mode button turn green, release
the Mode button.
If the LEDs above the Mode button
begin to blink after you press the
button, release it. Blinking LEDs
mean that the switch has already been
configured and cannot go into
Express Setup mode. For more
information, see the
Switch" section on page
Verify that the switch is in Express Setup mode by confirming that all LEDs above the Mode
Step 6
button are green. (The RPS LED remains off on some switch models.)
Connect a straight-through
Step 7
Category 5 Ethernet cable (not
provided) to any 10/100 or
10/100/1000 Ethernet port on the
switch front panel and to the Ethernet
port on the PC.
Verify that the LEDs on both Ethernet ports are green.
Step 8
Wait 30 seconds.
Step 9
Launch a web browser on your PC.
Step 10
Enter the IP address 10.0.0.1 in the
web browser, and press Enter.
78-16879-02
"Resetting the
1-9.
