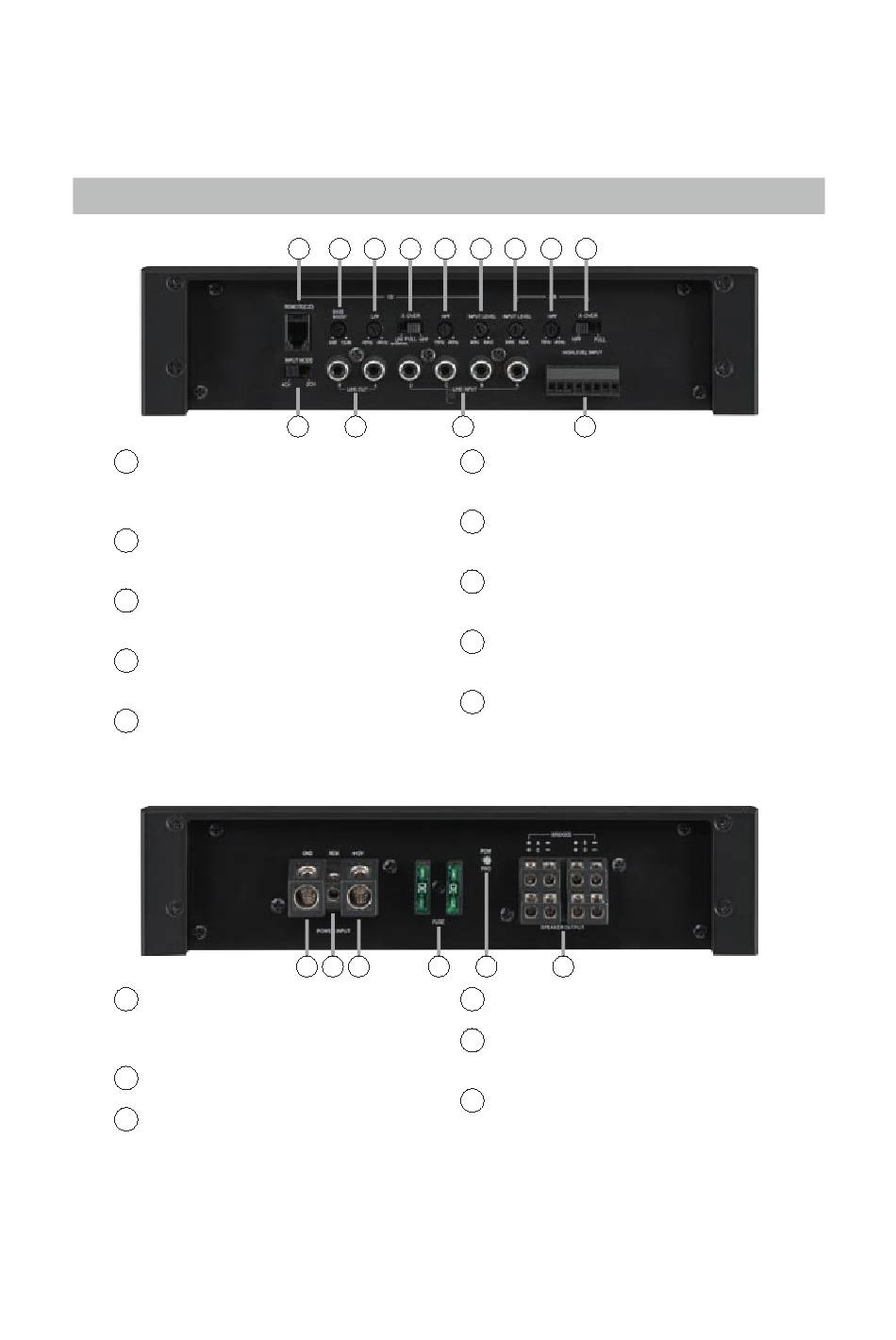

Connectors and control units
Remote (C/D)
1
Input for connecting the included cable re-
mote control for volume adjustment of the
channels C and D in bandpass mode.
Input Mode
2
Switch to route input signals to respective
amplifier channels.
.
Bass Boost
3
Control for adjusting the bass boost on
channels C and D from 0 to 12 dB.
Line Out
4
RCA outputs for connecting external amplifi-
ers.
LPF
5
Control for adjusting the lowpass filter of the
channels C and D from 40 to 4,000 Hz.
GND
11
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
REM
12
Connector for the remote cable.
+12 V
13
Connector for the +12 V power cable of the
positive terminal of the battery.
12
1
3
5
6
7
2
4
8
11 12
13
14
9
9
7
6
10
X-Over
6
Switch for activating the filters for each
channel pair.
HPF
7
Control for adjusting the highpass filter from
15 to 4,000 Hz.
Line Input
8
RCA inputs for connecting pre-amplifier
signals.
Input Level
9
Control for adjusting the input sensitivity of
the Line and Highlevel Inputs.
Highlevel Input
10
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
pre-amp / line outputs.
15
16
Fuse
14
Input fuses - 2 x 30 Ampere.
Power & Protect LED
15
This LED indicates the operating mode of the
amplifier.
Output Channels
16
Speaker outputs for connecting speaker
systems.
