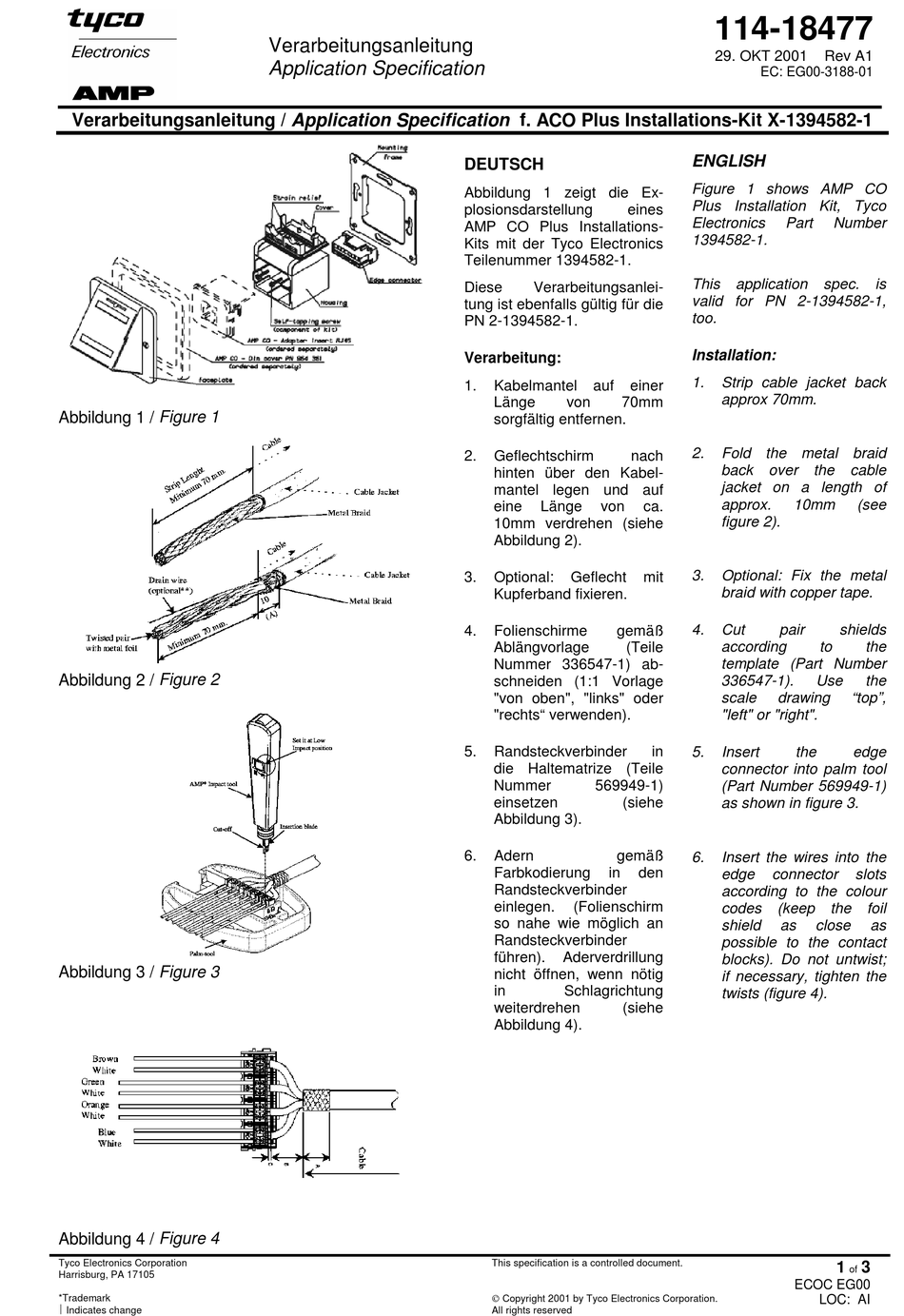

Verarbeitungsanleitung / Application Specification f. ACO Plus Installations-Kit X-1394582-1
Abbildung 1 / Figure 1
Abbildung 2 / Figure 2
Abbildung 3 / Figure 3
Abbildung 4 / Figure 4
Tyco Electronics Corporation
Harrisburg, PA 17105
*Trademark
 Indicates change
Verarbeitungsanleitung
Application Specification
DEUTSCH
Abbildung 1 zeigt die Ex-
plosionsdarstellung
eines
AMP CO Plus Installations-
Kits mit der Tyco Electronics
Teilenummer 1394582-1.
Diese
Verarbeitungsanlei-
tung ist ebenfalls gültig für die
PN 2-1394582-1.
Verarbeitung:
1.
Kabelmantel
auf
einer
Länge
von
70mm
sorgfältig entfernen.
2.
Geflechtschirm
nach
hinten über den Kabel-
mantel legen und auf
eine
Länge
von
10mm verdrehen (siehe
Abbildung 2).
3.
Optional:
Geflecht
Kupferband fixieren.
4.
Folienschirme
gemäß
Ablängvorlage
(Teile
Nummer 336547-1) ab-
schneiden (1:1 Vorlage
"von oben", "links" oder
"rechts" verwenden).
5.
Randsteckverbinder
die Haltematrize (Teile
Nummer
569949-1)
einsetzen
(siehe
Abbildung 3).
6.
Adern
gemäß
Farbkodierung
in
Randsteckverbinder
einlegen.
(Folienschirm
so nahe wie möglich an
Randsteckverbinder
führen).
Aderverdrillung
nicht öffnen, wenn nötig
in
Schlagrichtung
weiterdrehen
(siehe
Abbildung 4).
This specification is a controlled document.
© Copyright 2001 by Tyco Electronics Corporation.
All rights reserved
114-18477
29. OKT 2001
EC: EG00-3188-01
ENGLISH
Figure 1 shows AMP CO
Plus Installation Kit, Tyco
Electronics
Part
1394582-1.
This
application
valid for PN 2-1394582-1,
too.
Installation:
1.
Strip cable jacket back
approx 70mm.
2.
Fold the metal braid
back
over
jacket on a length of
approx.
10mm
ca.
figure 2).
3.
Optional: Fix the metal
mit
braid with copper tape.
4.
Cut
pair
according
template (Part Number
336547-1).
scale
drawing
"left" or "right".
in
5.
Insert
the
connector into palm tool
(Part Number 569949-1)
as shown in figure 3.
6.
Insert the wires into the
den
edge
connector
according to the colour
codes
(keep
shield
as
possible to the contact
blocks). Do not untwist;
if necessary, tighten the
twists (figure 4).
ECOC EG00
Rev A1
Number
spec.
is
the
cable
(see
shields
to
the
Use
the
"top",
edge
slots
the
foil
close
as
1
3
of
LOC: AI
