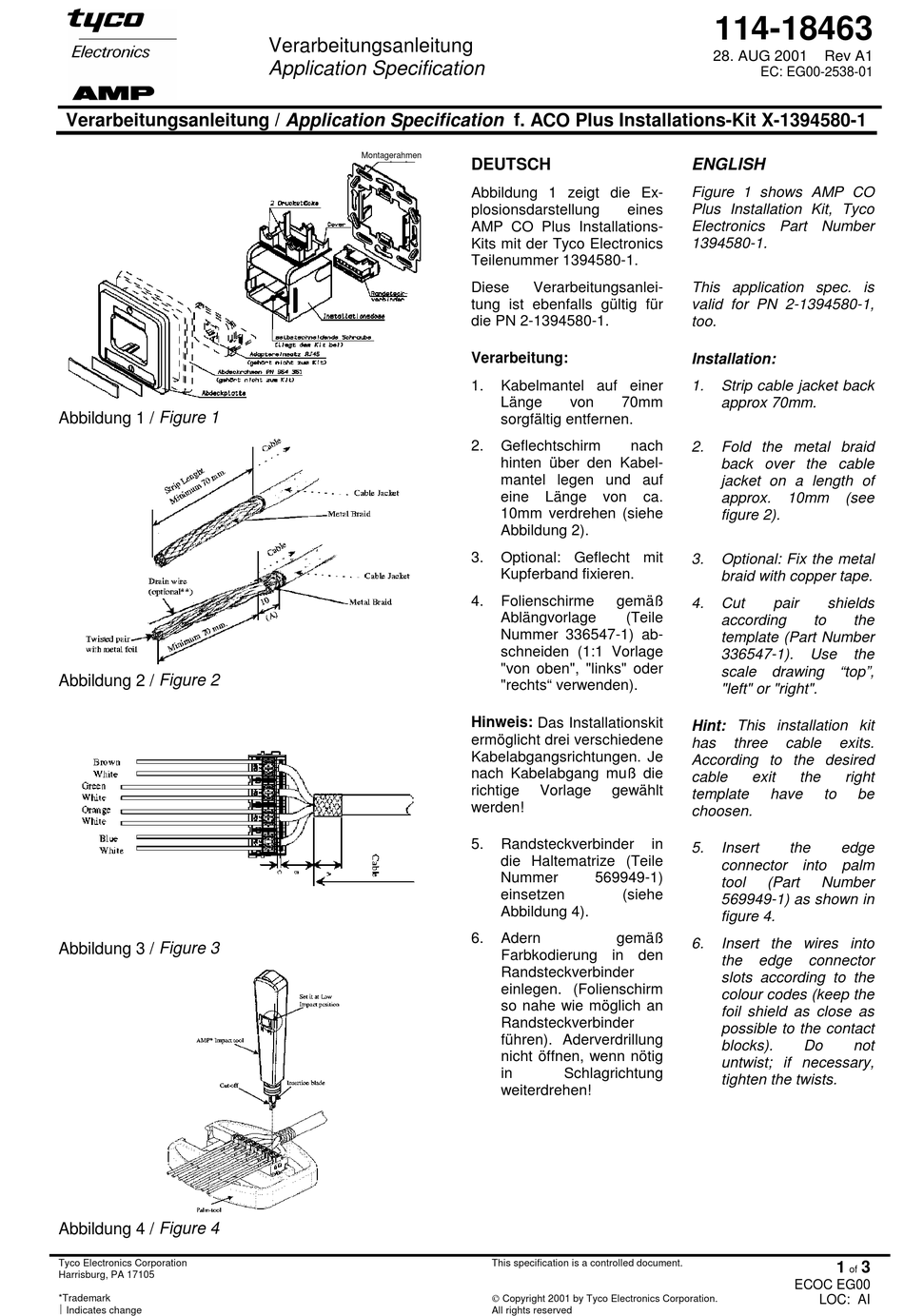

Verarbeitungsanleitung / Application Specification f. ACO Plus Installations-Kit X-1394580-1
Abbildung 1 / Figure 1
Abbildung 2 / Figure 2
Abbildung 3 / Figure 3
Abbildung 4 / Figure 4
Tyco Electronics Corporation
Harrisburg, PA 17105
*Trademark
 Indicates change
Verarbeitungsanleitung
Application Specification
Montagerahmen
DEUTSCH
Abbildung 1 zeigt die Ex-
plosionsdarstellung
eines
AMP CO Plus Installations-
Kits mit der Tyco Electronics
Teilenummer 1394580-1.
Diese
Verarbeitungsanlei-
tung ist ebenfalls gültig für
die PN 2-1394580-1.
Verarbeitung:
1.
Kabelmantel auf einer
Länge
von
70mm
sorgfältig entfernen.
2.
Geflechtschirm
nach
hinten über den Kabel-
mantel legen und auf
eine
Länge
von
10mm verdrehen (siehe
Abbildung 2).
3.
Optional: Geflecht mit
Kupferband fixieren.
4.
Folienschirme
gemäß
Ablängvorlage
(Teile
Nummer 336547-1) ab-
schneiden (1:1 Vorlage
"von oben", "links" oder
"rechts" verwenden).
Hinweis: Das Installationskit
ermöglicht drei verschiedene
Kabelabgangsrichtungen. Je
nach Kabelabgang muß die
richtige
Vorlage
gewählt
werden!
5.
Randsteckverbinder
die Haltematrize (Teile
Nummer
569949-1)
einsetzen
(siehe
Abbildung 4).
6.
Adern
gemäß
Farbkodierung in den
Randsteckverbinder
einlegen. (Folienschirm
so nahe wie möglich an
Randsteckverbinder
führen). Aderverdrillung
nicht öffnen, wenn nötig
in
Schlagrichtung
weiterdrehen!
This specification is a controlled document.
© Copyright 2001 by Tyco Electronics Corporation.
All rights reserved
114-18463
28. AUG 2001
EC: EG00-2538-01
ENGLISH
Figure 1 shows AMP CO
Plus Installation Kit, Tyco
Electronics Part Number
1394580-1.
This application spec. is
valid for PN 2-1394580-1,
too.
Installation:
1.
Strip cable jacket back
approx 70mm.
2.
Fold the metal braid
back over the cable
jacket on a length of
ca.
approx.
10mm
figure 2).
3.
Optional: Fix the metal
braid with copper tape.
4.
Cut
pair
according
to
template (Part Number
336547-1).
Use
scale drawing "top",
"left" or "right".
Hint: This installation kit
has
three
cable
According to the desired
cable
exit
the
template
have
choosen.
in
5.
Insert
the
connector into palm
tool
(Part
569949-1) as shown in
figure 4.
6.
Insert the wires into
the
edge
connector
slots according to the
colour codes (keep the
foil shield as close as
possible to the contact
blocks).
Do
untwist; if necessary,
tighten the twists.
ECOC EG00
Rev A1
(see
shields
the
the
exits.
right
to
be
edge
Number
not
1
3
of
LOC: AI
