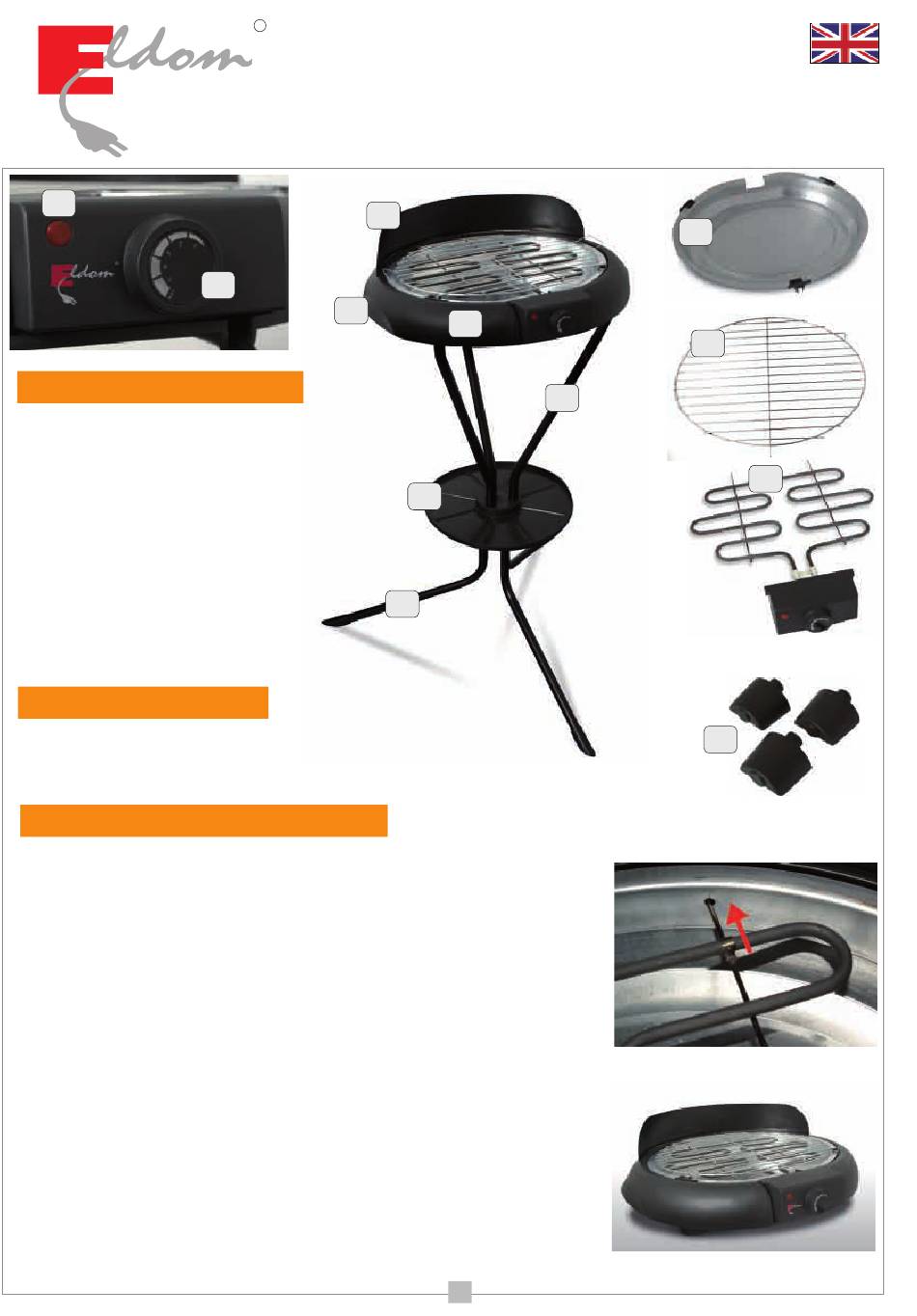

GENERAL DESCRIPTION

1. A shield
2. Handles
3. A body
4. A base for accessories and products
5. A water tank
6. A grill
7. A heating element together with a switch
8. Switch-key and temperature regulator
9. Control lamp
A. Legs (3 pcs)
B. Legs (3 pcs)
C. Feet

TECHNICAL DATA

- power: 2000W
- voltage Supply: 230V ~ 50Hz

MOUNTING THE UNIT

Before the first use, unpack the unit and put particular
elements together.
- fix the legs (A) in the holes in the lower part of the base (4)
press the legs (B) into relevant locations in the upper part of the
base (4)
- put the body together (3). Press the legs (B) into the holes in the
lower part of the body (fig. 1)
- fix the water tank (5). Attach the bowl's catches to the holes in
the body (3) and press it from the top
- accurately fix the heating element together with a switch (7) on
the body Slide the heating unit into holes in the tank (5), picture
01. Apply the switch – key into the body and press it.
- fix the grill (6)
- fix the shield (1) on the body (3)
The grill may be also used as a 'table' version. In such case fix the
feet (C) only, which must be pressed into relevant holes in the lower
part of the body (3). Put other elements together as in case of the
free-standing version.
